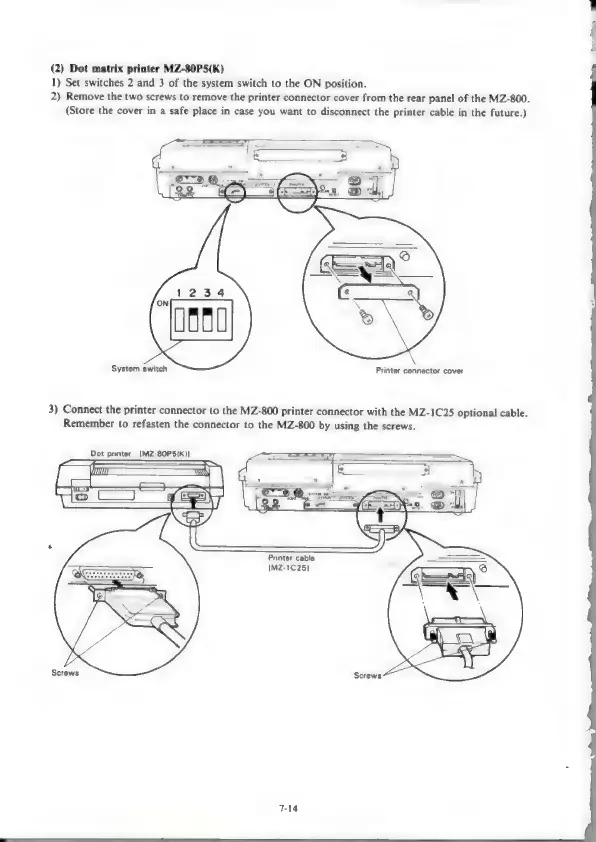

(2) Dot matrix printer MZ-80P5(K)
1) Set switches 2 and 3 of the system switch to the ON position.
2) Remove the two screws to remove the printer connector cover from the rear panel of the MZ-800.
(Store the cover in a safe place in case you want to disconnect the printer cable in the future.)
UAB
System switch Printer connector cover
3)
Connect
the
printer
connector
to
the
MZ-800
printer
connector
with
the
MZ-1C25
optional
cable,
Remember
to
refasten
the
connector
to
the
MZ-800
by
using
the
screws.
Dot printer [MZ-8OP5(K)}
IMZ-1C25}
Screws
7-14
——
