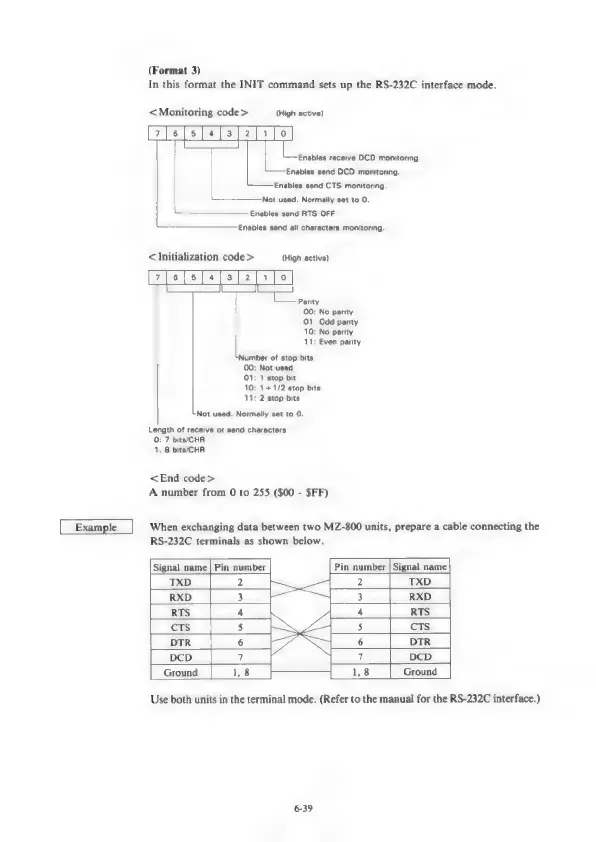

(Format 3)
In this format the INIT command sets up the RS-232C interface mode.
<Monitoring code> (High active)
Enables receive DCD monitoring.
Enables send DCD monitoring.
Enables send CTS monitoring.
Not used. Normally set to 0.
Enables send RTS OFF.
Enables send all characters monitoring.
< Initialization code> (High active)
Parity
00: No parity
01: Odd parity
10: No parity
11: Even parity
‘Number of stop bits
00: Not used.
01: 1 stop bit
10: 1+1/2 stop bits
11: 2 stop bits
‘Not used. Normally set to 0.
Length of receive or send characters
0: 7 bits/CHR
1: 8 bits/CHR
<End code>
A number from 0 to 255 ($00 - $FF)
When exchanging data between two MZ-800 units, prepare a cable connecting the
RS-232C terminals as shown below.
| Signal name | Pin number
Use both units in the terminal mode. (Refer to the manual for the RS-232C interface.)
6-39
