Sharp PN-E702 Setup Manual

ENGLISH
7
E

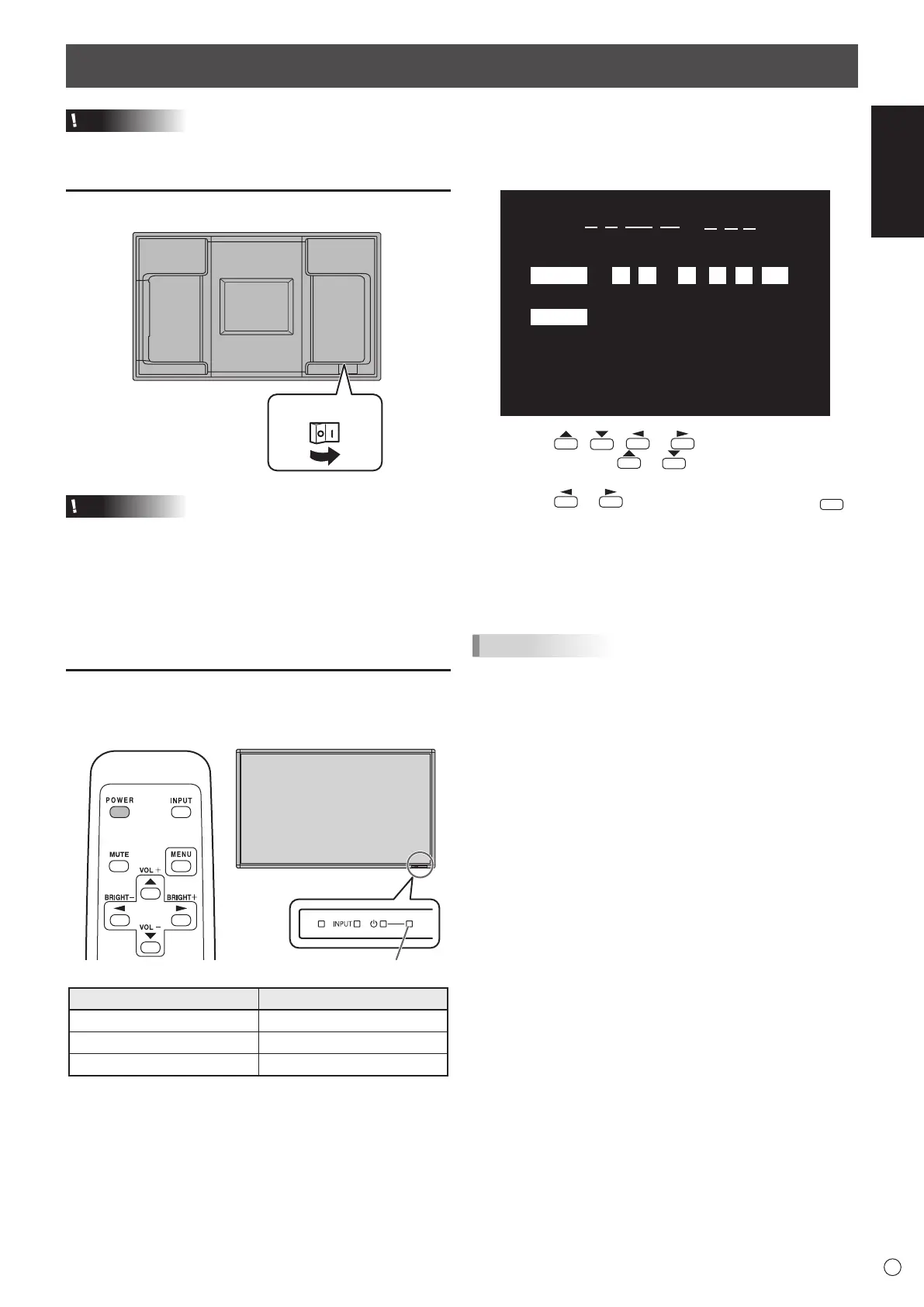

Turning Power On/Off
Caution
• TurnonthemonitorrstbeforeturningonthePCor
playback device.
Turning on the main power
Main power switch
Caution
• Themainpowermustbeturnedon/offwiththemainpower
switch.Donotconnect/disconnectthepowercordorturn
the breaker on/off while the main power switch is on.
• WhenswitchingthemainpowerswitchorthePOWER
buttonoffandbackon,alwayswaitforatleast5seconds.
• Foracompleteelectricaldisconnection,pulloutthemain
plug.
Turning power on/off
PressthePOWERbuttonorPOWERswitchtoturnthepower
ON/OFF.
Power LED
Status Status of the monitor
Green lit Power on
Orange lit Power off (Standby mode)
Greenashing Input signal waiting mode
n
Date/time setting
• Ifthetimehasyettobesetwhenthemonitorisrstturned
on, the date/time setting screen appears. Set the date and
time.
DATE/TIME SETTING
SET
CANCEL
//
OK···[MENU]
: :
01 01 11
/
12 AM00
:/ 20
1. Press , , or to select the date and
time, and press
or to change the numerical
values.
2. Press
or to select SET and then press
MENU
.
• Besuretosetthedateandtime.
• Thedate/timesettingscreenwillcloseautomaticallyifno
operationisperformedforabout15seconds.Thedate
andtimecanbesetusingDATE/TIMESETTINGfrom
the OPTION menu when the date/time setting screen
disappears.
TIPS
•
Setthedatein“Month/Day/Year”order.
•
Setthetimeona12-hourbasis.
•
The clock is maintained by the internal battery.
•
If you already set the time but the date/time setting
screen appears when the power is turned on, the
internal battery may be exhausted. Please contact
your local Sharp servicing dealer or service center for
assistance with battery replacement.
•
Estimatedservicelifeoftheinternalbattery:About5
years (depending on monitor operation)
•
The initial battery was inserted at the factory when the
monitor was shipped, so it may run out of power before
its expected operation life.

Sharp PN-E702 Specifications

General

3D	No
Pixel pitch	0.802 x 0.802 mm
Aspect ratio	16:9
Response time	6 ms
Display diagonal	70 \
Separate H/V sync	Yes
Supported video modes	1080p
Viewable size, vertical	865.6 mm
Contrast ratio (dynamic)	-
Contrast ratio (typical)	4000:1
Display number of colors	1.073 billion colors
Viewable size, horizontal	1538.9 mm
Viewing angle, horizontal	176 °
Display brightness (typical)	450 cd/m²
Supported graphics resolutions	1920 x 1080 (HD 1080)
Audio system	stereo
Analog signal format system	NTSC, NTSC 3.58, NTSC 4.43, PAL, PAL 60, SECAM
RS-232 ports	2
DVI-D ports quantity	0
Product color	Black
Panel mounting interface	200 x 200, 400 x 200 mm
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	240 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 80 %

Weight and Dimensions

Depth (without stand)	100 mm
Width (without stand)	1615 mm
Height (without stand)	947 mm
Weight (without stand)	50000 g
