Sharp PN-H701 Setup Manual

8
E
• When installing, removing or moving the monitor, ensure that this is carried out by at least 3 people.
• Be sure to use a wall-mount bracket designed or designated for mounting the monitor.
• This monitor is designed to be installed on a concrete wall or pillar. Reinforced work might be necessary for some materials
such as plaster / thin plastic board / wood before starting installation.
• This monitor and bracket must be installed on a wall which can endure at least 4 times or more the weight of the monitor.
Install by the most suitable method for the material and the structure.
• To attach a VESA-compliant mounting bracket, use M6 screws that are 5/16 inch (8 mm) to 3/8 inch (10 mm) longer than the
thickness of the mounting bracket.
• Do not use an impact driver.

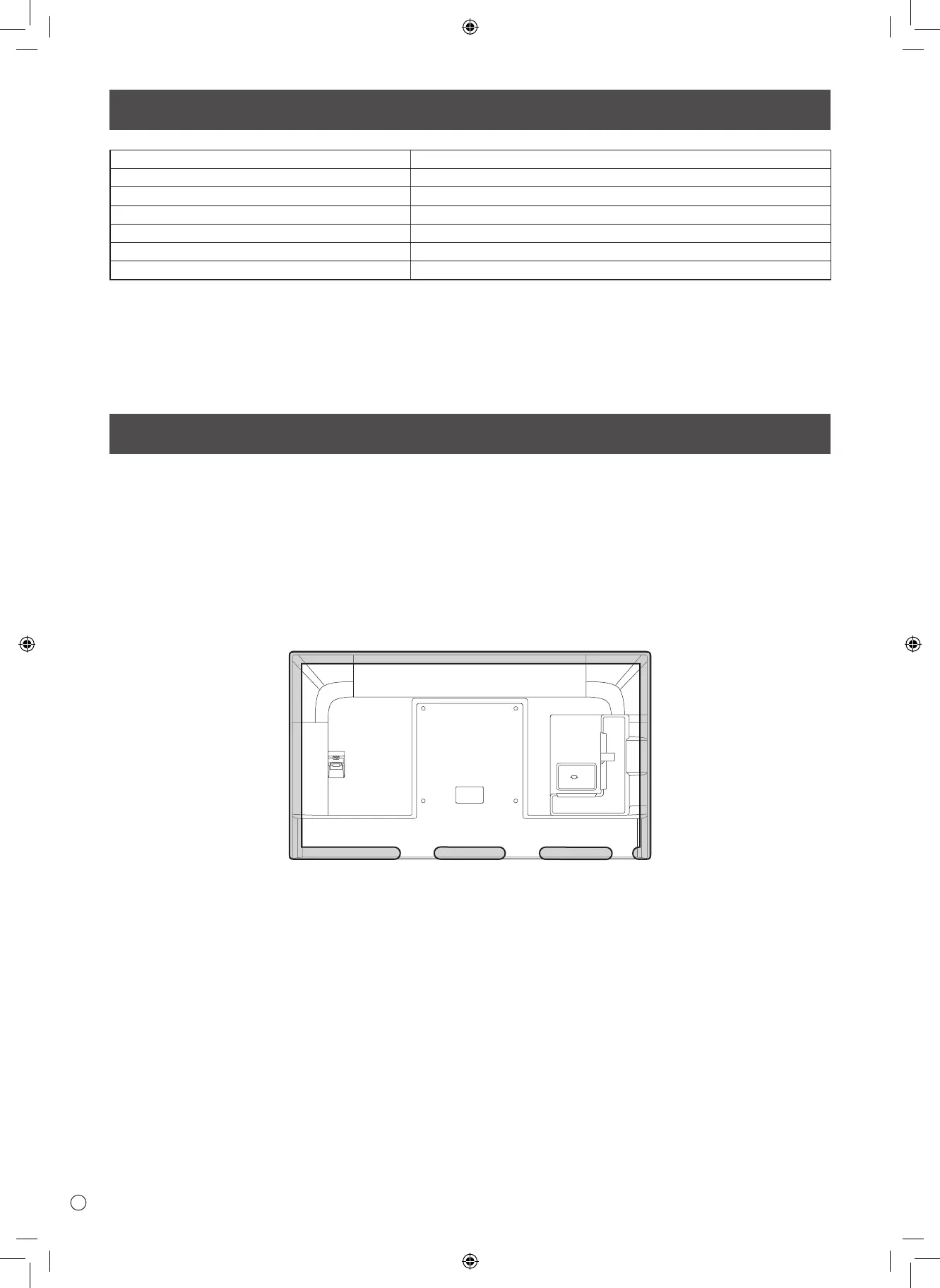

• When moving the monitor, be sure to hold the areas shown in the gure below. Do not hold the LCD panel. This may cause
product damage, failure, or injury.
• After mounting, please carefully ensure the monitor is secure, and not able to come loose from the wall or mount.
• Do not use any screw holes other than VESA holes for installation.
Model PN-H701
Power requirement AC 100 - 240 V, XX A, 50/60 Hz
Operating temperature
*
32°F to 104°F (0°C to 40°C)
Operating humidity 20% to 80% (no condensation)
Power consumption XX W
Dimensions (excluding protrusions) inch (mm)
Approx. 61-3/8 (W) x 2-3/4 (D) x 31-1/4 (H) (1559 x 69 x 794)
Weight lbs. (kg)
Approx. 83.8 (38)
* Temperature condition may change when using the monitor together with the optional equipments recommended by SHARP. In such
cases, please check the temperature condition specied by the optional equipments.
As a part of our policy of continuous improvement, SHARP reserves the right to make design and specication changes for product improvement
without prior notice. The performance specication gures indicated are nominal values of production units. There may be some deviations from
these values in individual units.
Specications
Mounting Precautions (For SHARP dealers and service engineers)

Sharp PN-H701 Specifications

General

Panel life	- h
Pixel pitch	0.401 x 0.401 mm
Response time	6 ms
Display diagonal	70 \
Display brightness	400 cd/m²
Display technology	LED
LED backlighting type	Edge-LED
Contrast ratio (typical)	3000:1
Display number of colors	16.78 million colors
Viewing angle, horizontal	176 °
Active display area (W x H)	1538.9 x 865.6 mm
Ethernet LAN	Yes
HDMI ports quantity	4
Ethernet LAN data rates	10, 100 Mbit/s
VGA (D-Sub) input ports	1
TV tuner integrated	-
Product color	Black
Product design	Digital signage flat panel
Panel mounting interface	400 x 400 mm
RMS rated power	20 W
Number of built-in speakers	2
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	- W
Power consumption (typical)	270 W
Headphone connectivity	3.5 mm
Number of products included	1 pc(s)
Cables included	RS-232, USB

Weight and Dimensions

Depth	69 mm
Width	1559 mm
Height	894 mm
Weight	38000 g
