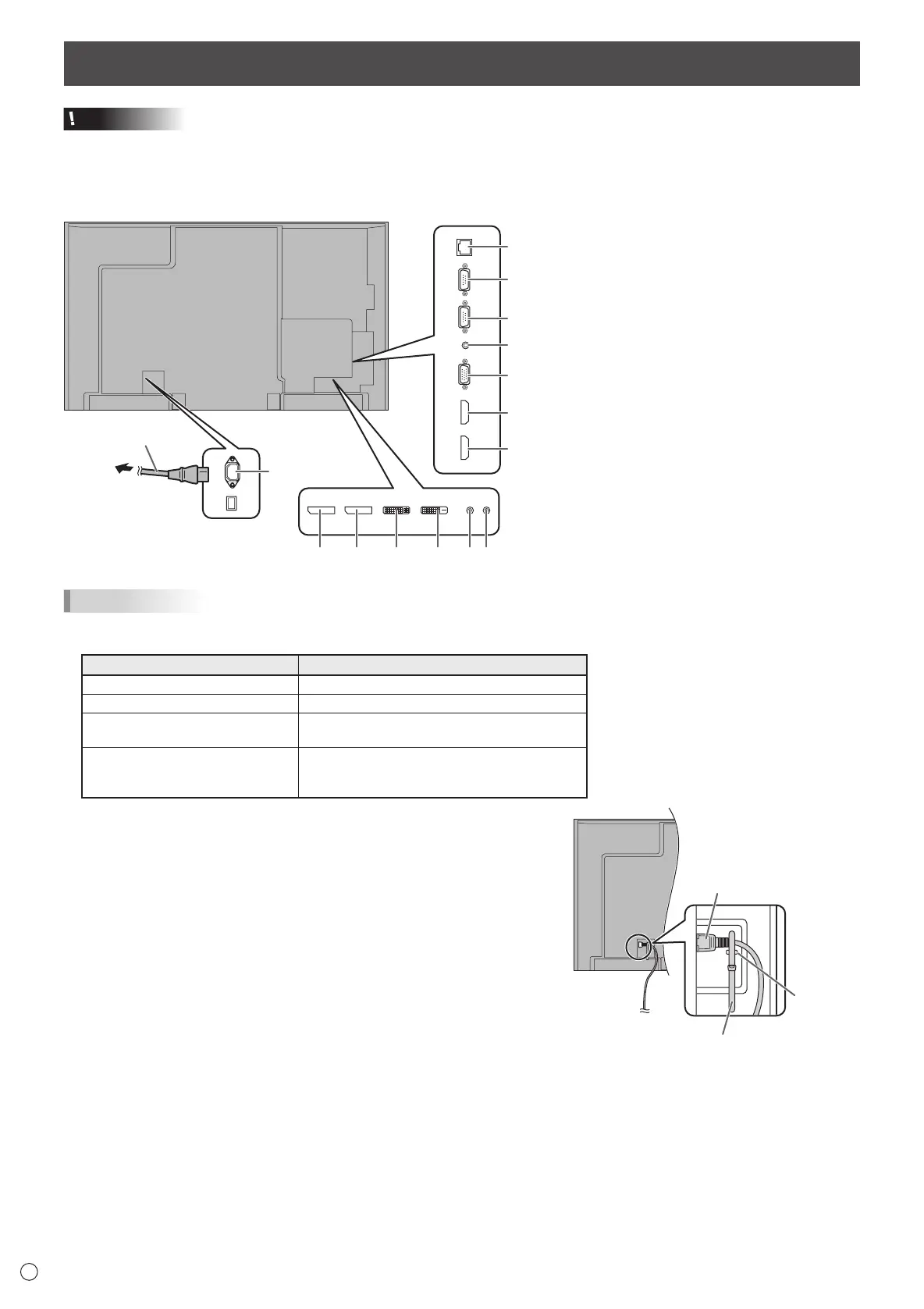

Connections
Caution
• Be sure to turn off the main power switch and disconnect the plug from the power outlet before connecting/disconnecting
cables. Also, read the manual of the equipment to be connected.
• Be careful not to confuse the input terminal with the output terminal when connecting cables. Accidentally reversing cables
connected to the input and output terminals may cause malfunctions and the other problems.
1
8
9
10
11
12
13
14
2 3 4 5 6 7
For power outlet
Power cord
(Supplied)
TIPS
• Set the audio input terminal used for each input mode in AUDIO SELECT on the SETUP menu. The factory settings are
shown below.
Input mode Audio input terminal (Factory setting)
DVI-I Audio1 input terminal
DisplayPort DisplayPort input terminal
HDMI1[PC], HDMI1[AV],
HDMI2[PC], HDMI2[AV]
PC/AV HDMI input terminal
D-SUB[RGB],
D-SUB[COMPONENT],
D-SUB[VIDEO]
Audio2 input terminal
• When installing the monitor in landscape orientation, be sure to clamp
the power cord (supplied) onto the cable clamp attachment using the
supplied cable clamp. When clamping the power cord, take care not
to stress the terminal of the power cord. Do not bend the power cord
excessively.
• The terms HDMI and HDMI High-Denition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks
of HDMI Licensing Administrator, Inc. in the United States and other countries.
• DisplayPort is a registered trademark of Video Electronics Standards Association.
• Adobe, Acrobat, and Acrobat Reader are either registered trademarks or trademarks of Adobe Systems Incorporated in the
United States and/or other countries.
Power cord (Supplied)
Cable clamp
Cable clamp
attachment
1. AC input terminal
2. DisplayPort input terminal
3. DisplayPort output terminal
4. DVI-I input terminal
5. DVI-D output terminal
6. Audio1 input terminal
7. Audio2 input terminal
8. LAN terminal
9. RS-232C output terminal
10. RS-232C input terminal
11. Audio output terminal
12. PC/AV D-sub input terminal
13. PC/AV HDMI1 input terminal
14. PC/AV HDMI2 input terminal
