Sharp PN-V602 Setup Manual

ENGLISH
5
E
If any component should be missing, please contact your dealer.

LiquidCrystalDisplayMonitor:1

Cableclamp:2

Power cord: 1

CD-ROM(UtilityDiskforWindows):1

Setup manual (this manual): 1

Protection cover: 4

Handle screw (short): 4

Bezelsheet(long/short):2each

Bezelsheetattachmentinstructions:1
* SharpCorporationholdsauthorshiprightstotheUtilityDiskprogram.Donotreproduceitwithoutpermission.
* For environmental protection!
 Donotdisposeofbatteriesinhouseholdwaste.Followthedisposalinstructionsforyourarea.
Supplied Components

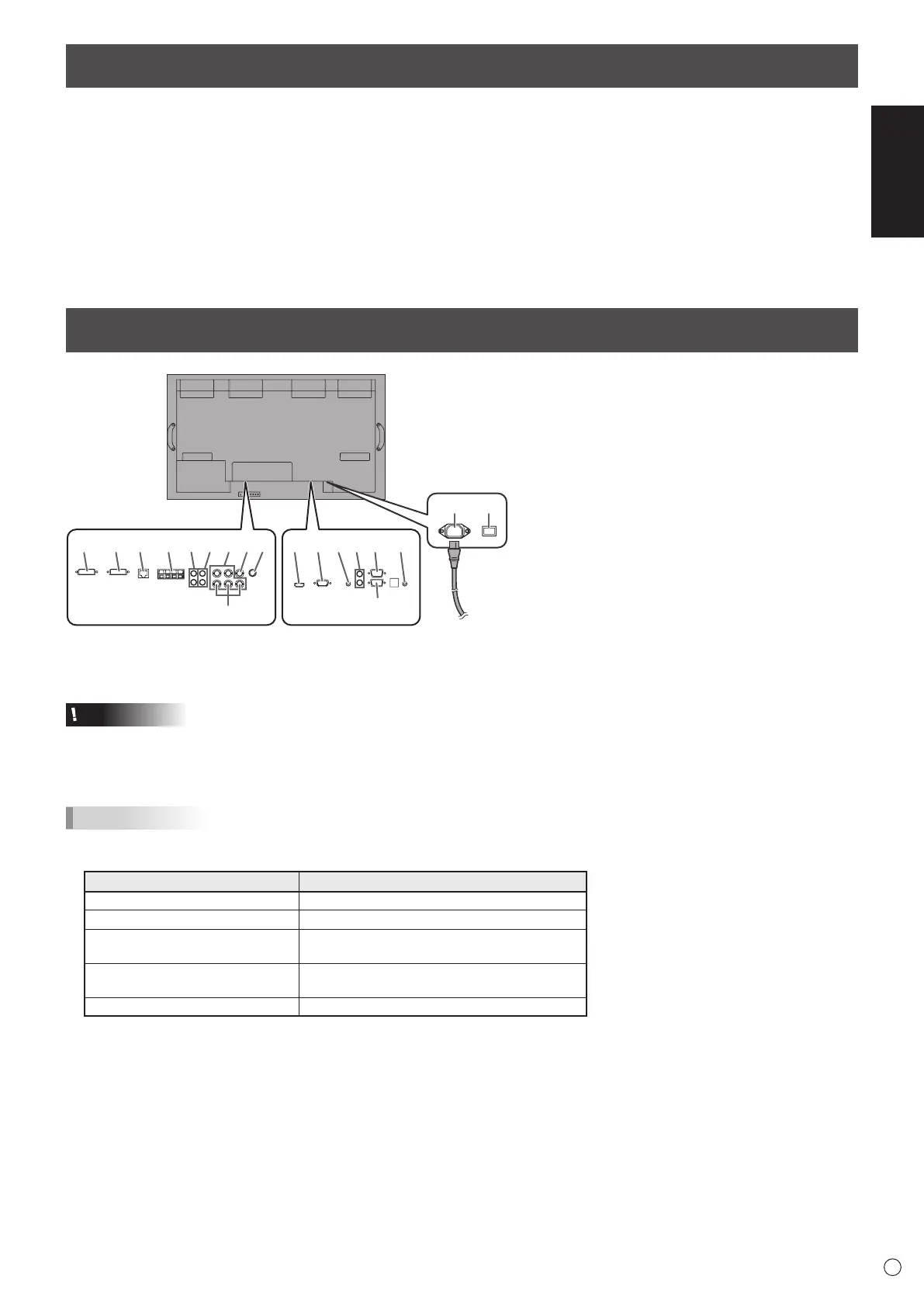

Connections
Caution
• Besuretoturnoffthemainpowerswitchanddisconnecttheplugfromthepoweroutletbeforeconnecting/disconnecting
cables. Also, read the manual of the equipment to be connected.
• Becarefulnottoconfusetheinputterminalwiththeoutputterminalwhenconnectingcables.Accidentallyreversingcables
connected to the input and output terminals may cause malfunctions and the other problems.
TIPS
• SettheaudioinputterminalusedforeachinputmodeinAUDIOSELECTontheOPTIONmenu.Thefactorysettingsare
shown below.
Input mode Audio input terminal (Factory setting)
PCD-SUB,PCDVI-D,PCRGB Audio input terminal
AVDVI-D Audio1 input terminal
AVCOMPONENT(BNC),
AVS-VIDEO,AVVIDEO(BNC)
Audio2 input terminal
AVCOMPONENT(D-SUB),
AVVIDEO(D-SUB)
Audio input terminal
PCHDMI,AVHDMI PC/AVHDMIinputterminal
• Whenconnectingtheexternalspeaker,attachthespeakercablecore(includedintheoptionalPN-ZB02).
• HDMI,theHDMIlogoandHigh-DenitionMultimediaInterfacearetrademarksorregisteredtrademarksofHDMILicensing
LLC.
1. PC/AV HDMI input terminal
2. PC D-sub input terminal
3. Audio input terminal
4. Audio output terminals
5. RS-232C output terminal
6. RS-232C input terminal
7. Control kit terminal
8. PC/AV DVI-D input terminal
9. PC/AV DVI-D output terminal
10. LAN terminal
11. External speaker terminals
12. Audio1 input terminals
13. Audio2 input terminals
14. PC RGB input terminals
15. AV component input terminals
16. AV video input terminal
17. AV S-video input terminal
18. AC input terminal
19. Main power switch
20. Power cord (Supplied)
When the PN-ZB02 (optional)
is attached
11109812345 712
6
15
1413 1716
18 19
20
For power
outlet
