Sharp PN-V701

14
E

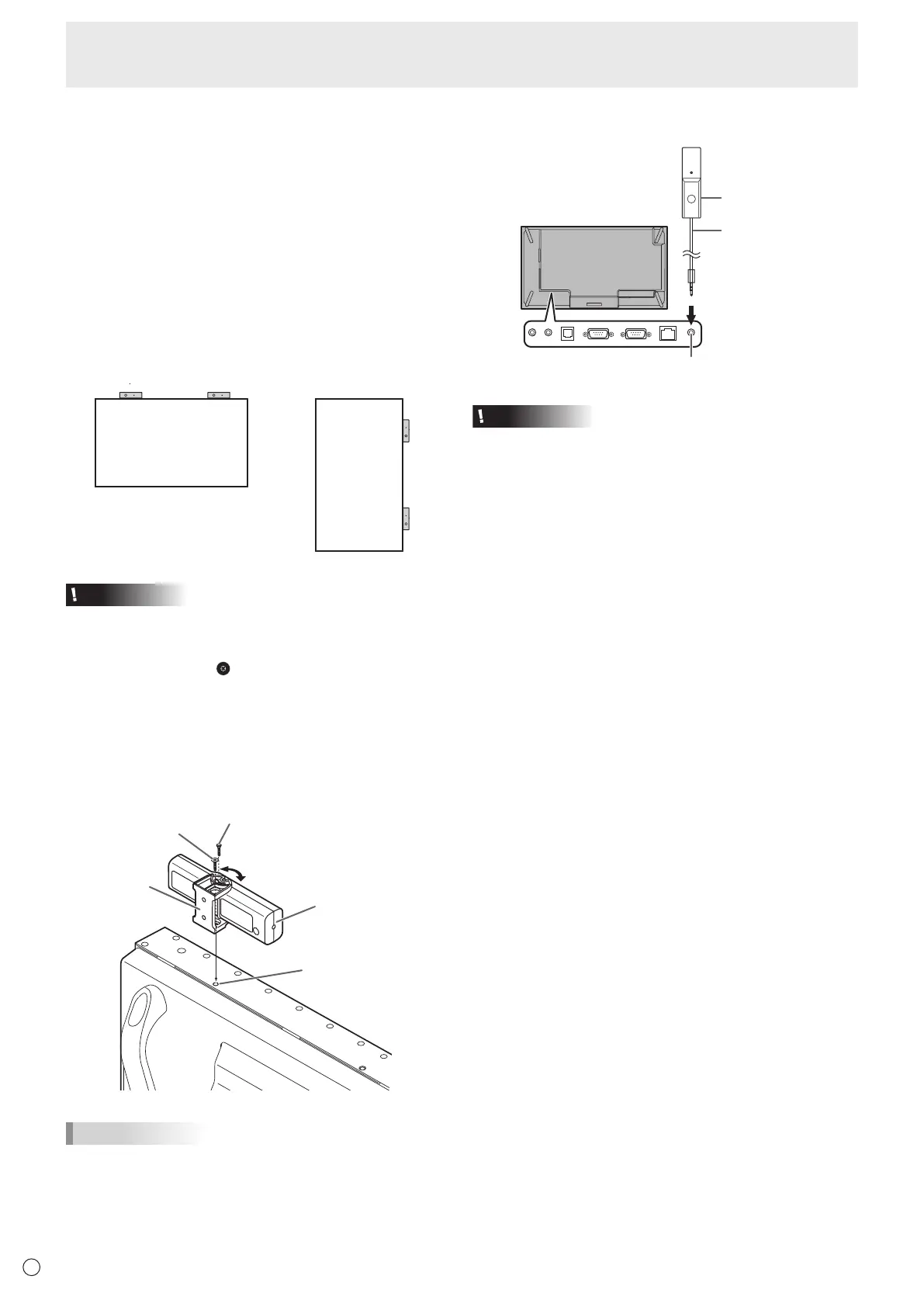

Connecting Peripheral Equipment
n
Mounting the control kit (optional) on the
monitor
If performing operation of the monitor with the remote control
unit, the PN-ZR02 control kit (optional) is required.
• Can perform operation of an arbitrary monitor or all
monitors with the remote control unit of the rst monitor.
• Can perform operation of up to 25 monitors.
• Connect the monitors together in a daisy chain with RS-232
cable.
Attach the remote control sensor box as shown in the following
illustration.
For the monitor in
landscape orientation
For the monitor in
portrait orientation
Caution
• When attaching the remote control sensor box, turn the
main power switch OFF.
1. Peel off the sticker (
) that has been afxed to the
monitor’s remote control sensor box mounting hole.
2. Secure the mounting bracket by inserting the mounting
screw into the monitor’s remote control sensor box
mounting hole.
3. Adjust the angle of the remote control sensor box, and
secure it with the xing screw, so that it may accurately
receive signals from the remote control unit.
Angle adjustment
Mounting bracket
Mounting screw
Fixing screw
Remote control
sensor box
Remote control sensor
box mounting hole
TIPS
• To conceal the remote control sensor box mounting hole,
afx an included sticker over the hole.
4. Insert the remote control sensor box connection cable
into the control kit terminal.
Connection
cable
Remote control
sensor box
Control kit terminal
Caution
• When attaching the remote control sensor box, turn the
main power switch OFF.
• Except for the remote control sensor box connection cable,
do not insert any other cable into the control kit terminal.
Also, do not connect any connection cables that have been
extended with commercially available cables.
