9
E
n

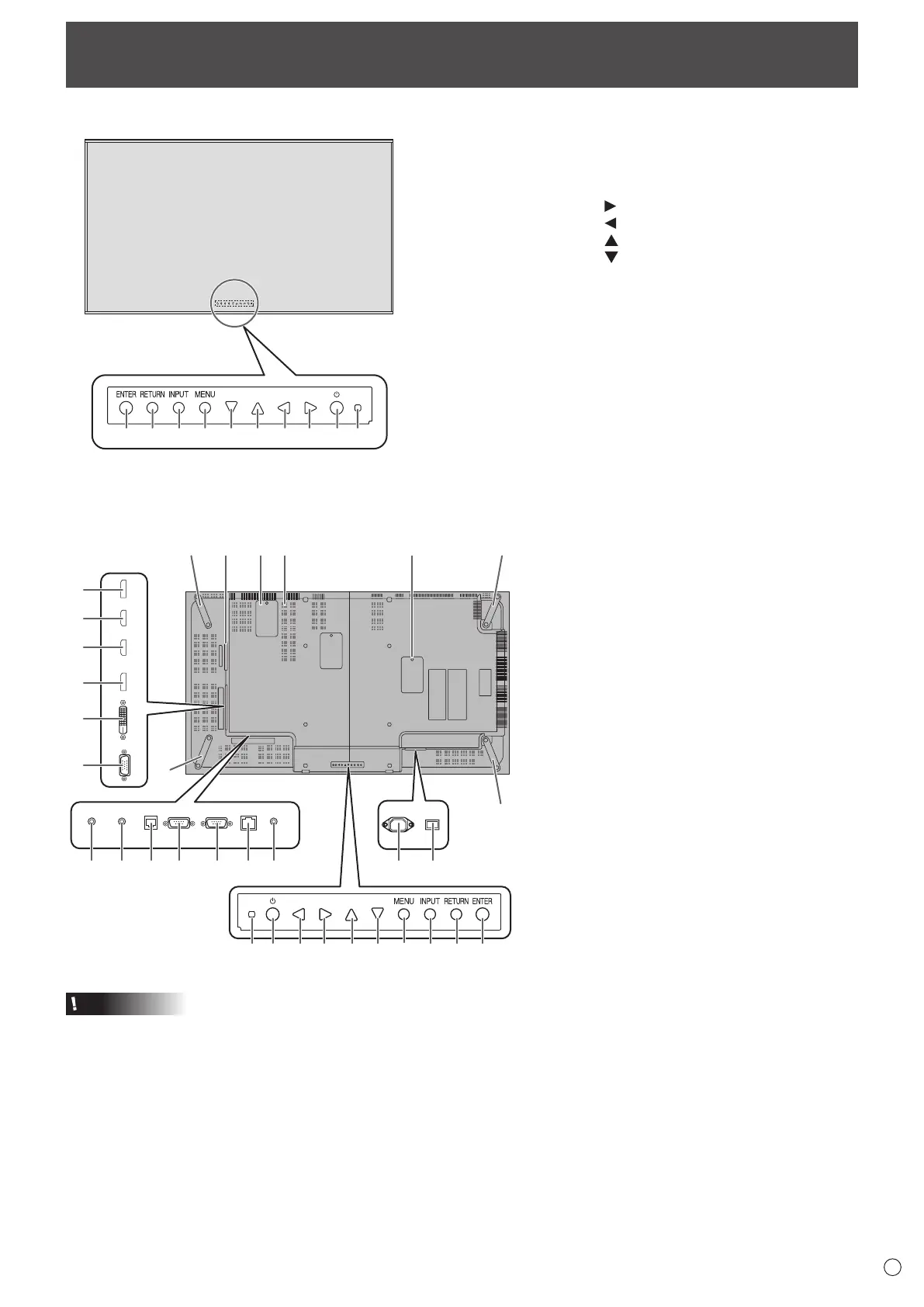

Front view
The rear buttons
if seen from the front
11 10 98765432
1
1. LCD panel
2. Power LED
3. POWER button
4. Cursor control (
) button
5. Cursor control (
) button
6. Cursor control (
) button
7. Cursor control (
) button
8. MENU button
9. INPUT button
10. RETURN button
11. ENTER button
Part Names
n
Rear view
12
12
30
17
23 24 25 26 27 28 29
12
15 16
2
3 4 5 6 7
8
9 10 11
18
19
20
21
22
12. Handles
13. Fan/Fan Cover
14. Vents
15. AC input terminal (See page 15.)
16. Main power switch (See page 18.)
17. DisplayPort output terminal (See page 11.)
18. HDMI1 input terminal (See page 11.)
19. HDMI2 input terminal (See page 11.)
20. DisplayPort input terminal (See page 11.)
21. DVI-D input terminal (See page 12.)
22. D-sub input terminal (See page 12.)
23. Audio input terminal (See page 12.)
24. Audio output terminal (See page 12.)
25. Optional terminal
This terminal is provided for possible future
(optional) function expansion. Offering of
this terminal is not a guarantee that future
expanded functionality will be provided.
26. RS-232C input terminal (See page 12.)
27. RS-232C output terminal (See page 12.)
28. LAN terminal (See page 12.)
29. Control kit terminal (See page 12.)
30. Expansion slot
This section is used to connect optional
hardware for function expansion. Offering this
attachment location is not a guarantee that
future compatible hardware attachments will
be released.
Caution
• Consult your SHARP dealer for attachment/detachment of
optional parts.
• Do not block the fan cover.
