Sharp R-211(W)M - Wiring Diagram

14
211M -

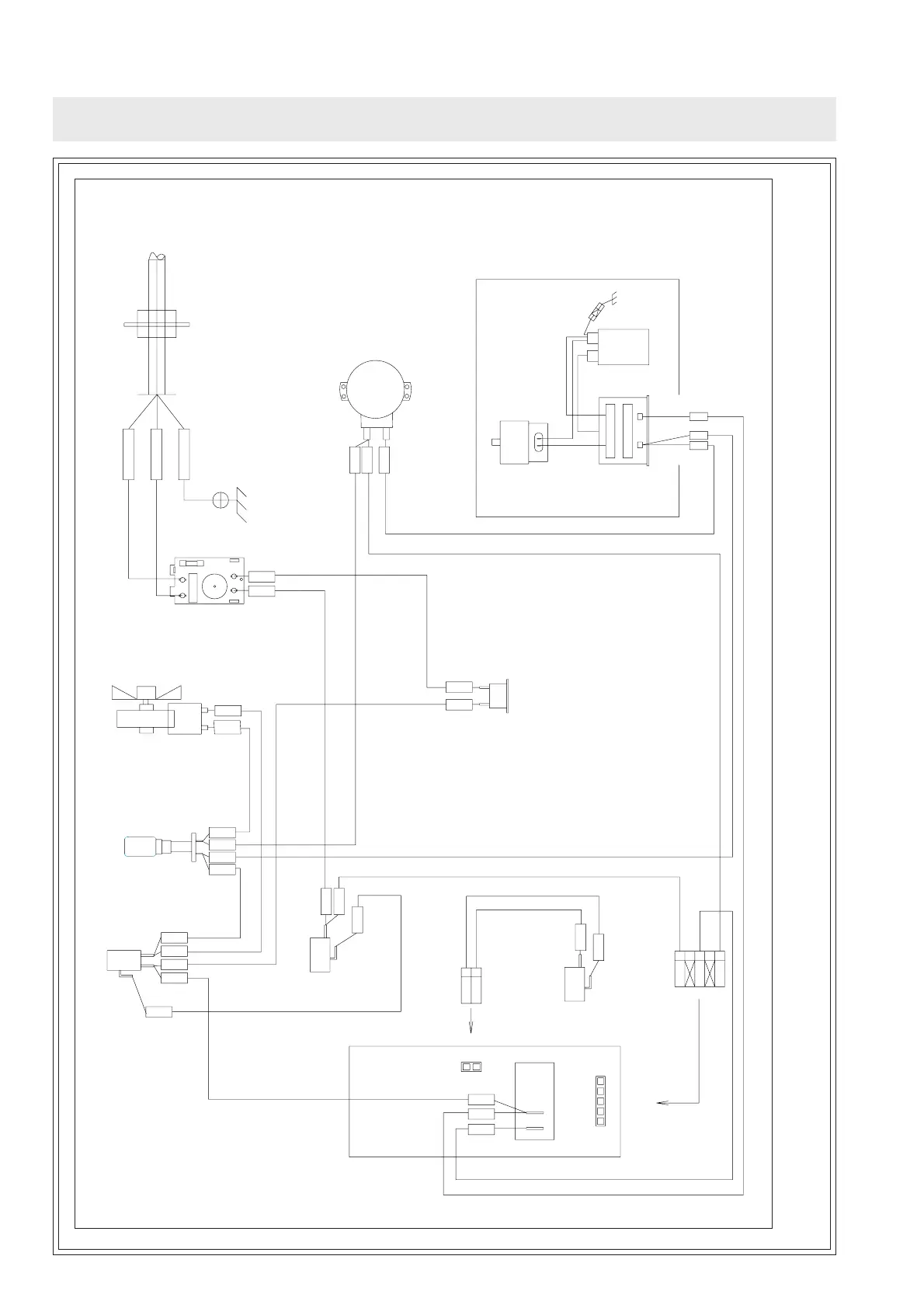

Figure S-1. Pictorial Diagram
NOTE: Most of the terminals are Positive - Lock Type.
WIRING DIAGRAM
H.V COMPONENTS
TRANSFORMER H.V
OVEN
THERMAL
POWER CORD
UNIT
NOISE
FAN
LAMP
MONITOR
SW2: SWITCH
RELAY 2
SW3: STOP
SW1: SWITCH
LATCH
CONTROL PANEL
H.V RECTIFIER
H.V CAPACITOR
MAGNETRON
BLU
RED
WHT
MOTOR
TURNTABLE
CUT-OUT
SWITCH
CN-A
CN-B
MONITORED
OVEN
MOTOR
FILTER
WHT WHT
WHT
BLU
BLU
RED
RED
BLU
WHT
WHT
RED
WHT
WHT
WHT
RED
RED
BLU
WHT
BLU
WHT
WHT
WHT
WHT
BLU
BLU
BLU
BLU
BLU
BLU
BLU
BLU
LN
BLU BRN G/Y
LIVE NEUTRAL EARTH
