Sharp R-24AT Service Manual

R-22AT
R-24AT
40
HOW TO ORDER REPLACEMENT PARTS
To have your order filled prompty and correctly, please furnish the following information.
1. MODEL NUMBER 2. REF. NO. 3. PART NO. 4. DESCRIPTION

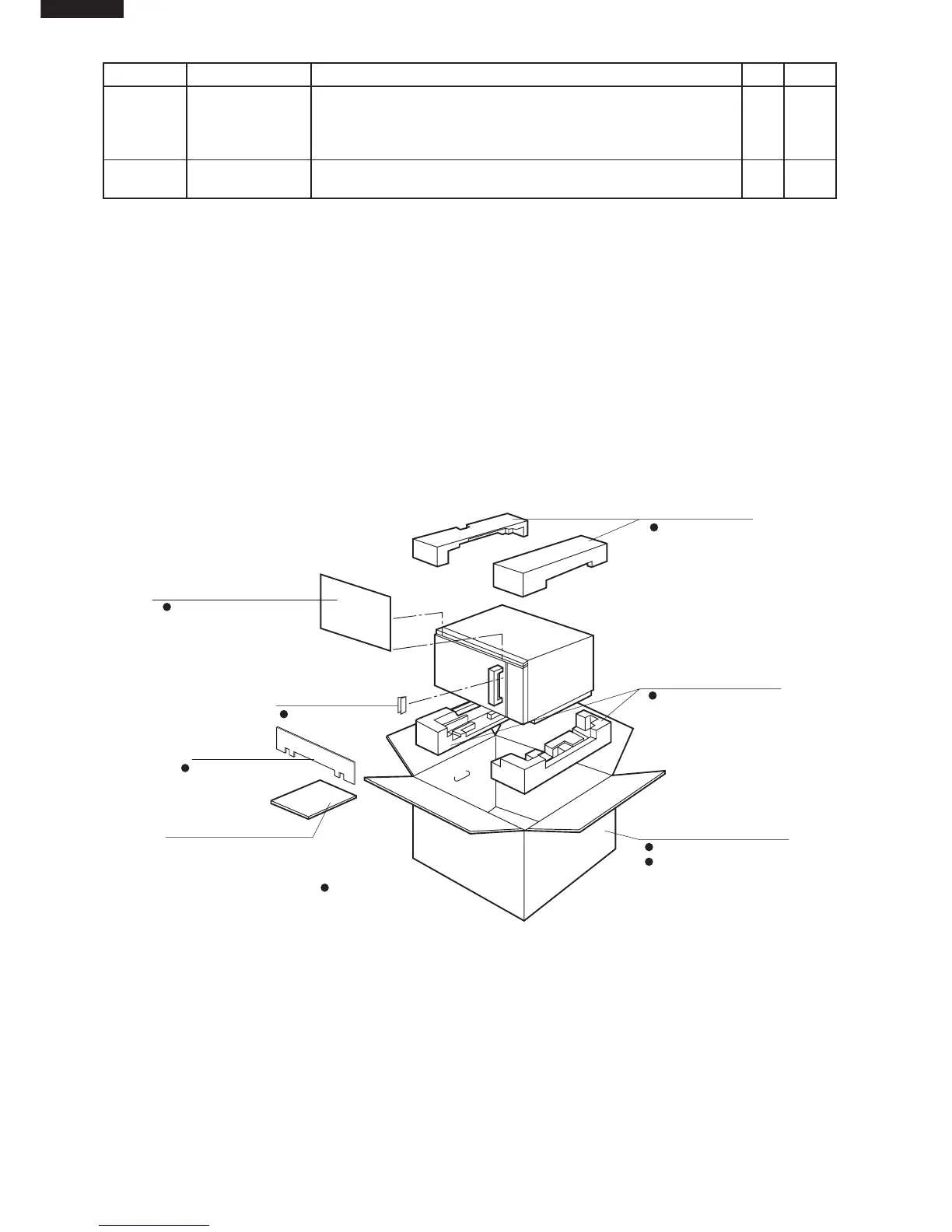

PACKING AND ACCESSORIES
REF. NO. PART NO. DESCRIPTION Q'TY CODE
7-18 XWSS740-10000 Washer: 4mm x 1mm 1 AA
7-19 XFTS740P12000 Screw : 4mm x 12mm 1
7-20 LX-BZA150WREZ Special screw 1 AB
7-21 XCHWW40P08000 Screw : 4mm x 8mm 2 AB
7-22 XCPS730P10000 Screw : 3mm x 10mm 2 AA
7-23 XBPS730P28KS0 Screw : 3mm x 28mm 2 AB
TOP PAD ASSEMBLY
FPADBA313WRK0
DOOR PROTECTION SHEET
SPADPA552WRE0
PACKING CASE
SPAKCD321WRE0 [R-22AT]
SPAKCD327WRE0 [R-24AT]
DOOR PAD
SPADF0341WRE0
OPERATION MANUAL
S CAUTION SHEET
MENU LABEL
* Not replaceable items.
BOTTOM PAD ASSEMBLY
FPADBA314WRK0
TRAY SUPPORT
SPADPA551WRE0

Sharp R-24AT Specifications

General

Turntable	-
Clock type	Electronic
Door hinge	Left
Control type	Buttons
Product color	Stainless steel
Door open type	Pull-out
Microwave power	1900 W
Built-in display	Yes
Appliance placement	Countertop
Number of power levels	11
Auto programs quantity	10
Current	13 A
Connected load	2900 W
AC input voltage	230 V
AC input frequency	50 Hz

Weight and Dimensions

Depth	470 mm
Width	510 mm
Height	335 mm
Weight	33000 g
Interior dimensions (W x D x H)	330 x 330 x 180 mm
