Sharp R-24AT Service Manual

R-22AT
R-24AT
42
'05SHARP CORP. (1S0.0e_E)

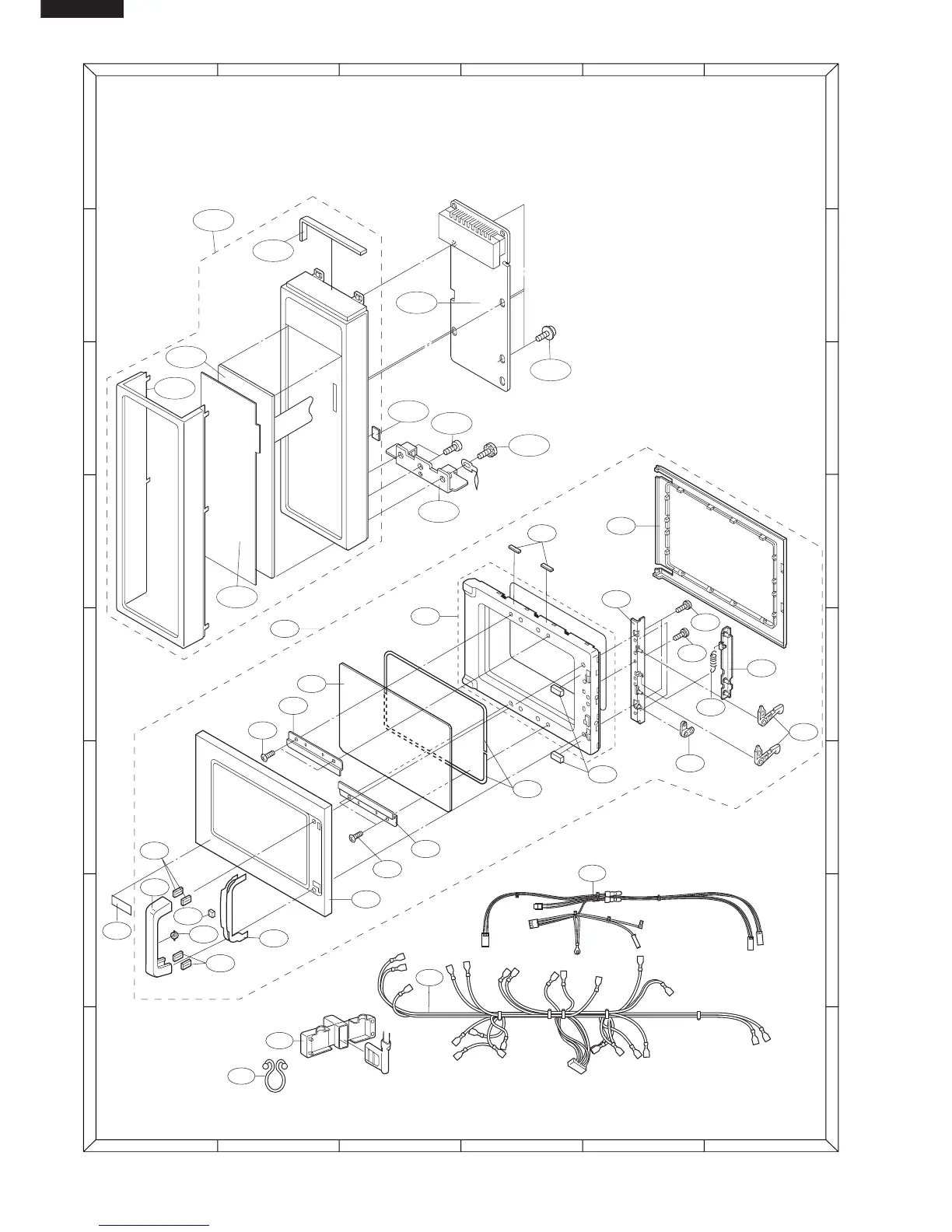

CONTROL PANEL PARTS
MISCELLANEOUS
DOOR PARTS
1
A
B
C
D
E
F
G
H
A
B
C
D
E
F
G
H
23456
123456
Actual wire harness may be different from illustration.
6-4
6-3
5
3-6
3-4
3-5
3-3
3-2-3
3-2
3-2-2
3-1
3-2-4
3-2-5
3-2-1
5-15
5-16
5-17
5-18
5-4
5-13
5-13
5-10
5-14
5-1
5-9
5-8
5-7
5-6
5-13
5-13
5-2
5-20
5-11
5-11
5-5
5-19
5-6
5-12
5-3
6-9
6-13

Sharp R-24AT Specifications

General

Turntable	-
Clock type	Electronic
Door hinge	Left
Control type	Buttons
Product color	Stainless steel
Door open type	Pull-out
Microwave power	1900 W
Built-in display	Yes
Appliance placement	Countertop
Number of power levels	11
Auto programs quantity	10
Current	13 A
Connected load	2900 W
AC input voltage	230 V
AC input frequency	50 Hz

Weight and Dimensions

Depth	470 mm
Width	510 mm
Height	335 mm
Weight	33000 g
Interior dimensions (W x D x H)	330 x 330 x 180 mm
