Sharp R-308KK User Manual

R308KW
6 – 2

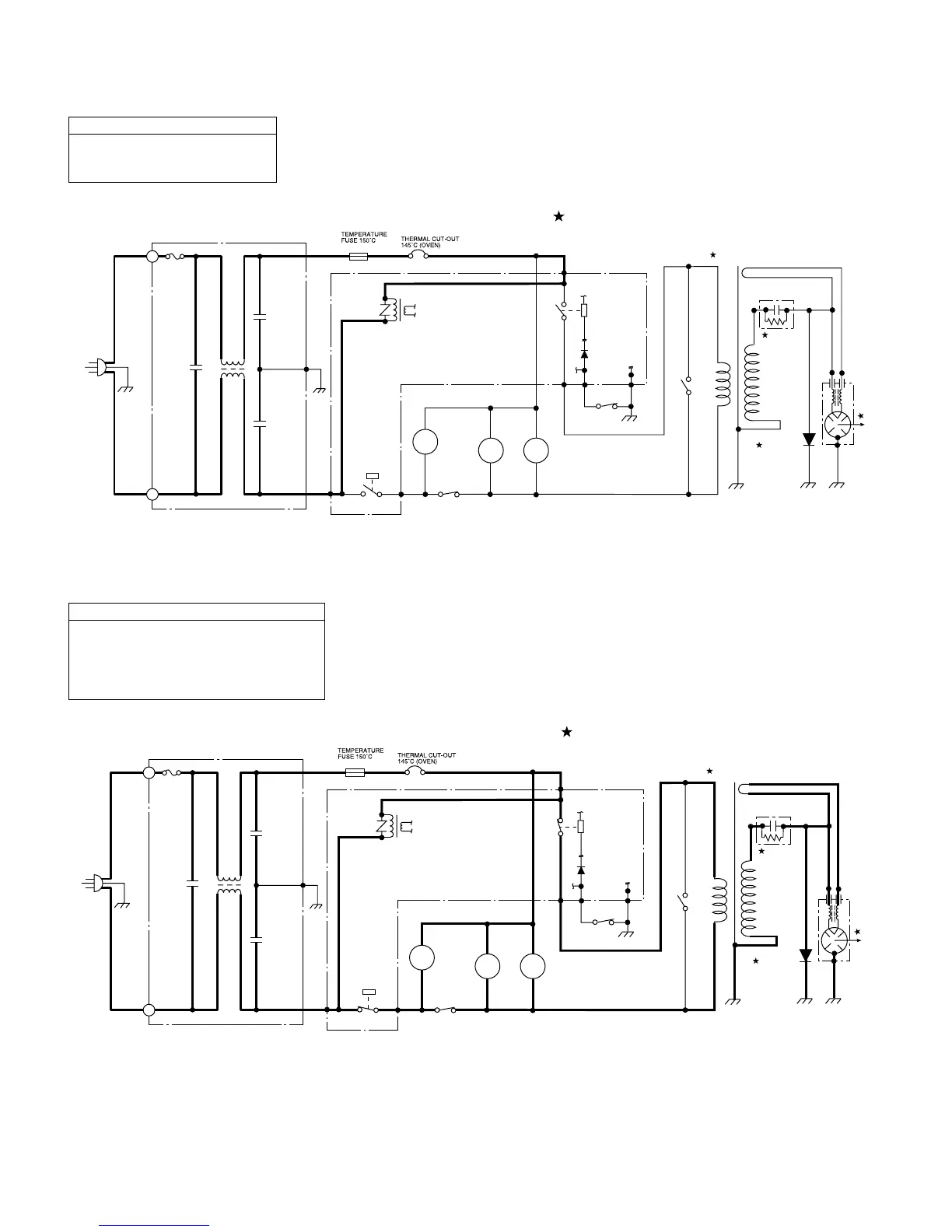

[2] OVEN SCHENATIC
1. Off Condition
Figure O-1. Oven Schematic-Off Condition
2. Cooking Condition
Figure O-2. Oven Schematic-Cooking Condition
SCHEMATIC
NOTE: CONDITION OF OVEN
1. DOOR CLOSED
2. CLOCK APPEARS ON DISPLAY
SCHEMATIC
NOTE: CONDITION OF OVEN
1. DOOR CLOSED.
2. COOKING TIME PROGRAMMED.
3. VARIABLE COOKING CONTROL "P-HI".
4. START PAD TOUCHED.
120V AC
60 Hz
OVEN
LAMP
OVEN LAMP
RELAY
TURN-
TABLE
MOTOR
FAN
MOTOR
POWER
TRANSFORMER
MONITOR SWITCH
RECTIFIER
MAGNETRON
SECONDARY
INTERLOCK
SWITCH
TTM
OL
FM
N.O.
N.O.
COM.
COM.
DOOR
SENSING
SWITCH
(RY1)
(RY2)
CONTROL UNIT
PRIMARY
INTERLOCK
RELAY
GRN
B2
CAPACITOR
0.19μF
AC 2100V
B1
FUSE
20A
NOISE SUPPRESSION COIL
LINE CROSS CAPACITOR
0.22μF / AC 250V
LINE BYPASS
CAPACITOR
0.0033μF / AC 125V
LINE BYPASS
CAPACITOR
0.0033μF / AC 125V
LN
NOISE FILTER
(MAGNETRON)
NOTE: " " indicates components with potentials above 250V
120V AC
60 Hz
OVEN
LAMP
OVEN LAMP
RELAY
TURN-
TABLE
MOTOR
FAN
MOTOR
POWER
TRANSFORMER
MONITOR SWITCH
RECTIFIER
MAGNETRON
SECONDARY
INTERLOCK
SWITCH
TTM
OL
FM
N.O.
N.O.
COM.
COM.
DOOR
SENSING
SWITCH
(RY1)
(RY2)
CONTROL UNIT
PRIMARY
INTERLOCK
RELAY
GRN
B2
CAPACITOR
0.19μF
AC 2100V
B1
FUSE
20A
NOISE SUPPRESSION COIL
LINE CROSS CAPACITOR
0.22μF / AC 250V
LINE BYPASS
CAPACITOR
0.0033μF / AC 125V
LINE BYPASS
CAPACITOR
0.0033μF / AC 125V
LN
NOISE FILTER
(MAGNETRON)
NOTE: " " indicates components with potentials above 250V
