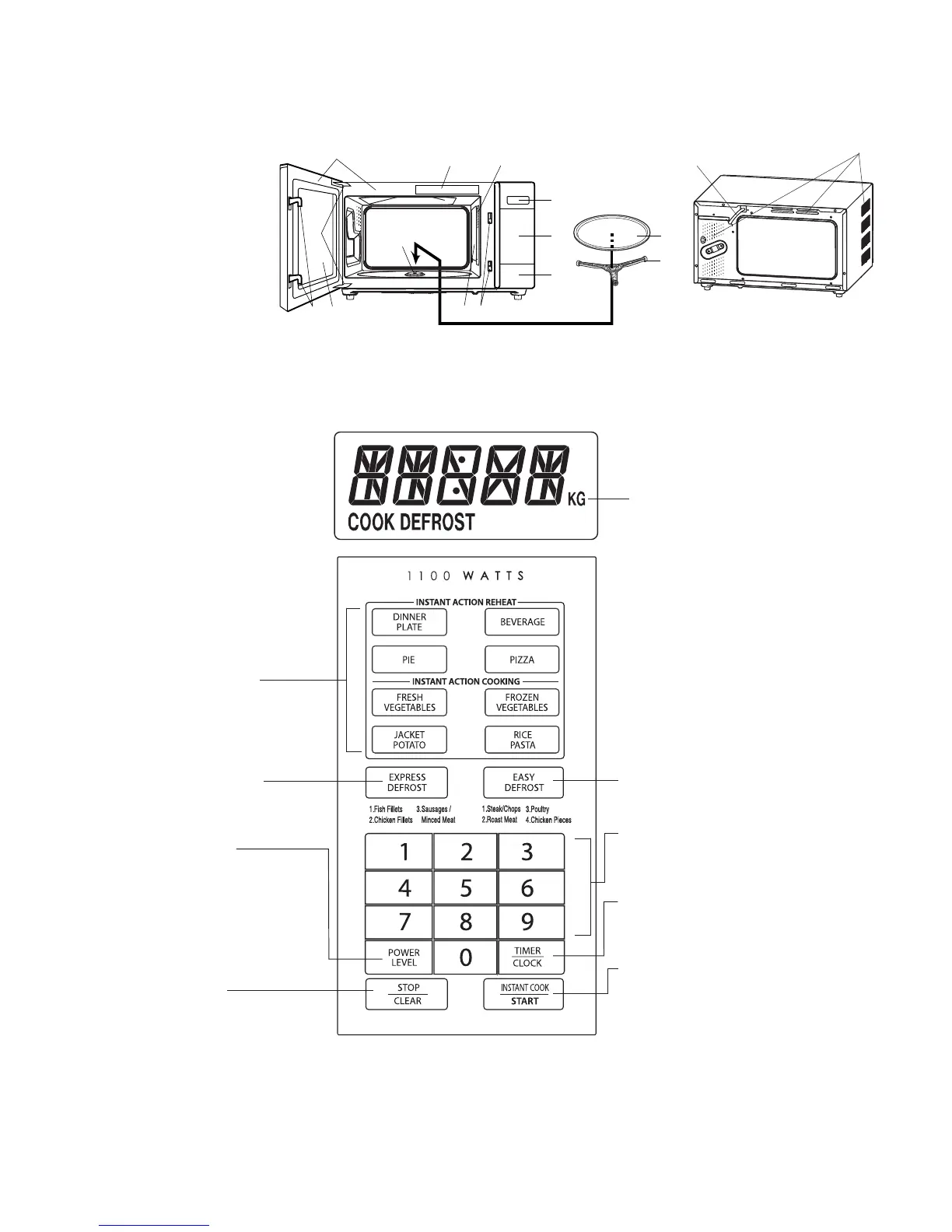

CHAPTER 4. APPEARANCE VIEW
[1] OVEN
1. Door open button
2. Oven lamp
3. Door hinges
4. Door safety latches
5. See through door
6. Door seal and sealing surfaces
7. Coupling
8. Wave guide cover
9. Touch control panel
10.Liquid crystal display
11. Ventilation openings 12. Power supply cord 13. Turntable 14. Roller stay 15. Menu label
[2] TOUCH CONTROL PANEL
NOTE: Some one-touch cooking features such as “INSTANT COOK” are disabled after one minute when the oven is not in use. These fea-
tures are automatically enabled when the door is opened and closed or the STOP/CLEAR pad is pressed.
6
2
84
4
5
3
1
9
10
15
7
13
14
11
12
Indicators
EASY DEFROST PAD
Press to selec tthe Easy Defrost menu.
NUMBER PADS
Press to enter cooking time, clock time,
weight of food.
TIMER/CLOCK PAD
Press to set clock, timer, child lock or
demonstration mode.
INSTANT COOK/STARTPAD
Press to start oven after setting pro-
grammes.
Press once to cook for 1 minute at
HIGH or increase by 1 minute multi-
ples each time thi s pad i s pressed
during cooking.
INSTANT ACTION PADS
Press to cook or reheat 8 popular
menus.
EXPRESS DEFROST PAD
Press to select the Express Defrost
menu.
POWER LEVEL PAD
Press to select microwave power
setting.If not pressed, HIGH is auto-
matically selected.
Press to alter the cooking result for
automaticoperations.
STOP/CLEAR PAD
Press to clear during programming.
Press once to stop operation of
oven during cooking; press twice to
cancel cooking programme.
