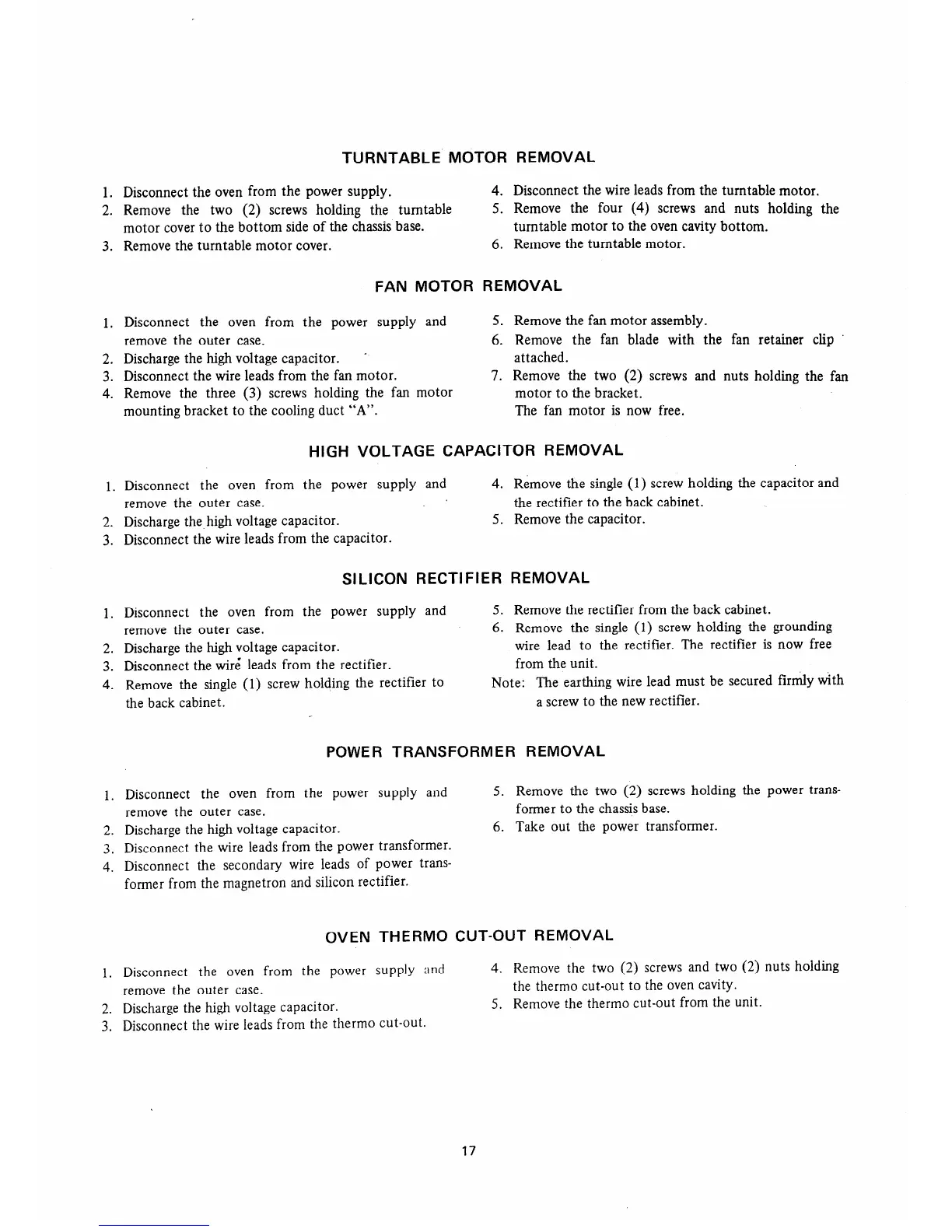

TURNTABLE MOTOR REMOVAL
Disconnect the oven from the power supply. 4. Disconnect the wire leads from the turntable motor,
Remove the two (2) screws holding the turntable 5. Remove the four (4) screws and nuts holding the
motor cover to the bottom side of the chassis base. turntable motor to the oven cavity bottom.
Remove the turntable motor cover.
6. Remove the turntable motor.
FAN MOTOR REMOVAL
Disconnect the oven from the power supply and 5. Remove the fan motor assembly.
remove the outer case.
6. Remove the fan blade with the fan retainer clip .
Discharge the high voltage capacitor.
-
attached.
Disconnect the wire leads from the fan motor.
‘7. Remove the two (2) screws and nuts holding the fan
Remove the three (3) screws holding the fan motor
motor to the bracket.
mounting bracket to the cooling duct “A”.
The fan motor is now free.
HIGH VOLTAGE CAPACITOR REMOVAL
Disconnect the oven from the power supply and
remove the outer case.
Discharge the high voltage capacitor.
Disconnect the wire leads from the capacitor.
4. Remove the single (1) screw holding the capacitor and
the rectifier to the back cabinet. .
5. Remove the capacitor.
SILICON RECTIFIER REMOVAL
Disconnect the oven from the power supply and
5. Remove the rectifier from the back cabinet.
remove the outer case.
6. Remove the single (1) screw holding the grounding
Discharge the high voltage capacitor.
wire lead to the rectifier. The rectifier is now free
Disconnect the wiri leads from the rectifier.
from the unit.
Remove the single (1) screw holding the rectifier to
Note: The earthing wire lead must be secured firmly with
the back cabinet. a screw to the new rectifier.
POWER TRANSFORMER REMOVAL
Disconnect the oven from the power supply and
remove the outer case.
Discharge the high voltage capacitor.
Disconnect the wire leads from the power transformer.
Disconnect the secondary wire leads of power trans-
former from the magnetron and silicon rectifier.
5. Remove the two (2) screws holding the power trans-
former to the chassis base.
6. Take out the power transformer.
OVEN THERM0 CUT-OUT REMOVAL
Disconnect the oven from the power supply and
4. Remove the two (2) screws and two (2) nuts holding
remove the outer case.
the therm0 cut-out to the oven cavity.
Discharge the high voltage capacitor.
5. Remove the therm0 cut-out from the unit.
3. Disconnect the wire leads from the therm0 cut-out.
17
