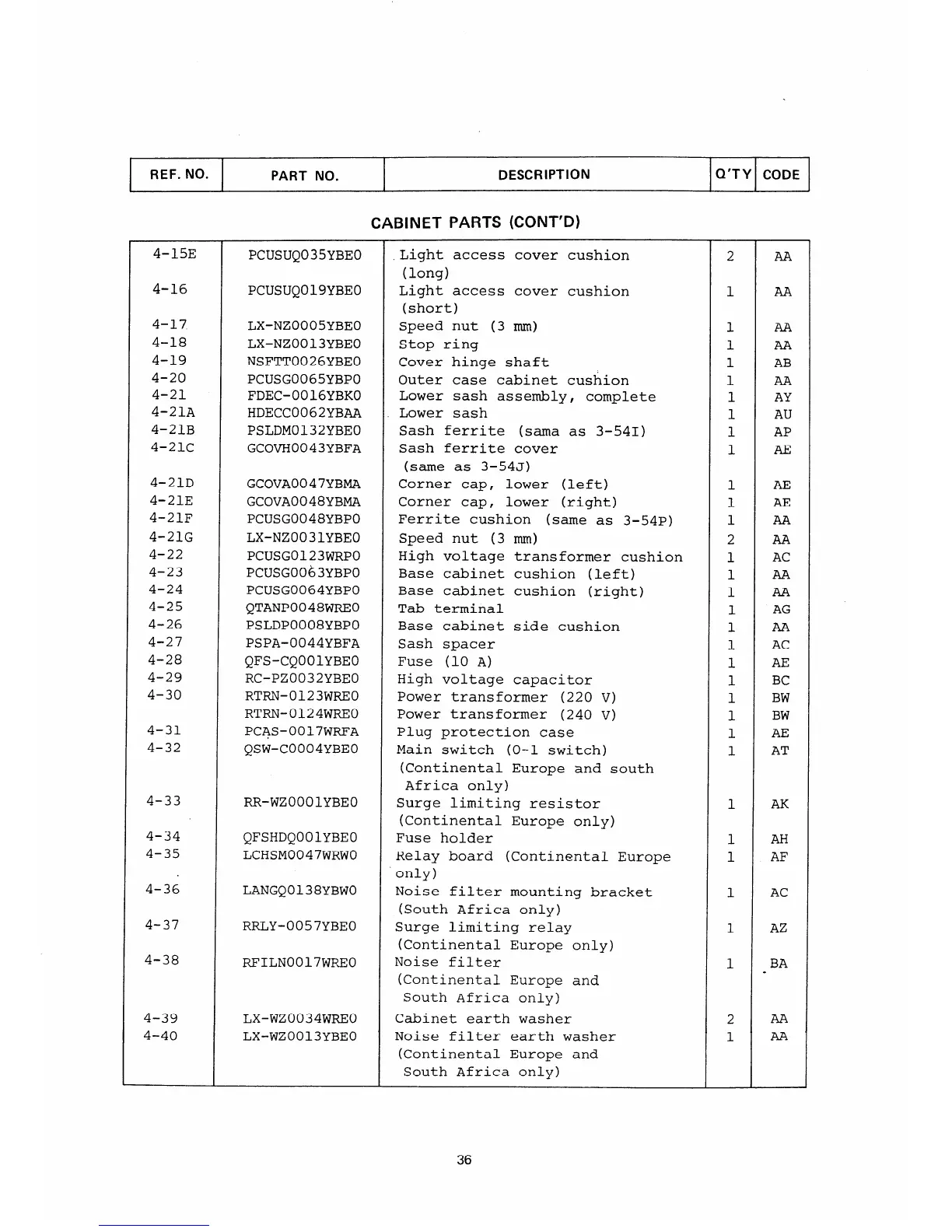

CABINET PARTS (CONT’D)
4-15E
PCUSUQ035YBEO
Light access cover cushion
2 AA
(long)
4-16
PCUSUQOl9YBEO Light access cover cushion
1
AA
(short)
4-17
LX-NZ0005YBEO
Speed nut (3 mm)
1
AA
4-18
LX-NZ0013YBEO Stop ring
1
AA
4-19
NSFTT0026YBEO Cover hinge shaft
1
AB
4-20
PCUSG0065YBPO
Outer case cabinet cushion
1
AA
4-21
FDEC-0016YBK0 Lower sash assembly, complete
1
AY
4-21A
HDECC0062YBAA Lower sash
1
AU
4-21B
PSLDM0132YBEO
Sash ferrite (sama as 3-541)
1
AP
4-21c
GCOVH0043YBFA
Sash ferrite cover
1 AE
(same as 3-54J)
4-21D
GCOVA0047YBMA
Corner cap,
lower (left)
1
AE
4-21E
GCOVA0048YBMA
Corner cap,
lower (right)
1
AE
4-21F
PCUSG0048YBPO Ferrite cushion (same as 3-54~)
1
AA
4-21G LX-NZ0031YBEO
Speed nut (3 mm)
2 AA
4-22
PCUSG0123WRPO High voltage transformer cushion
1
AC
4-23 PCUSG0063YBPO
Base cabinet cushion (left)
1
AA
4-24
PCUSG0064YBPO
Base cabinet cushion (right)
1 AA
4-25
QTANP0048WREO Tab terminal
1
AG
4-26
PSLDP0008YBPO
Base cabinet side cushion
1 AA
4-27
PSPA-0044YBFA Sash spacer
1
AC
4-28
QFS-CQOOlYBEO
Fuse (10 A)
1
AE
4-29
RC-PZ0032YBEO
High voltage capacitor
1
BC
4-30
RTRN-0123WREO
Power transformer (220 V)
1
BW
RTRN-0124WREO Power transformer (240 v)
1
BW
4-31
PCAS-0017WRFA
Plug protection case
1
AE
4-32
QSW-C0004YBEO Main switch (O-l switch)
1
AT
(Continental Europe and south
Africa only)
4-33
RR-WZOOOlYBEO
Surge limiting resistor
1
AK
(Continental Europe only)
4-34
QFSHDQOOlYBEO
Fuse holder
1
AH
4-35
LCHSM0047WRWO
Relay board (Continental Europe
1
AF
4-36
only)
LANGQ0138YBWO
Noise filter mounting bracket
1
AC
(South Africa only)
4-37
RRLY-0057YBEO
Surge limiting relay
1
AZ
(Continental Europe only)
4-38
RFILN0017WREO
Noise filter
1
BA
(Continental Europe and
.
South Africa only)
4-39
LX-wzoo34wREo
Cabinet earth washer 2 AA
4-40 LX-WZ0013YBEO
Noise filter earth washer 1 AA
(Continental Europe and
South Africa only)
