Sharp RT-1157H - Panel Removal

7

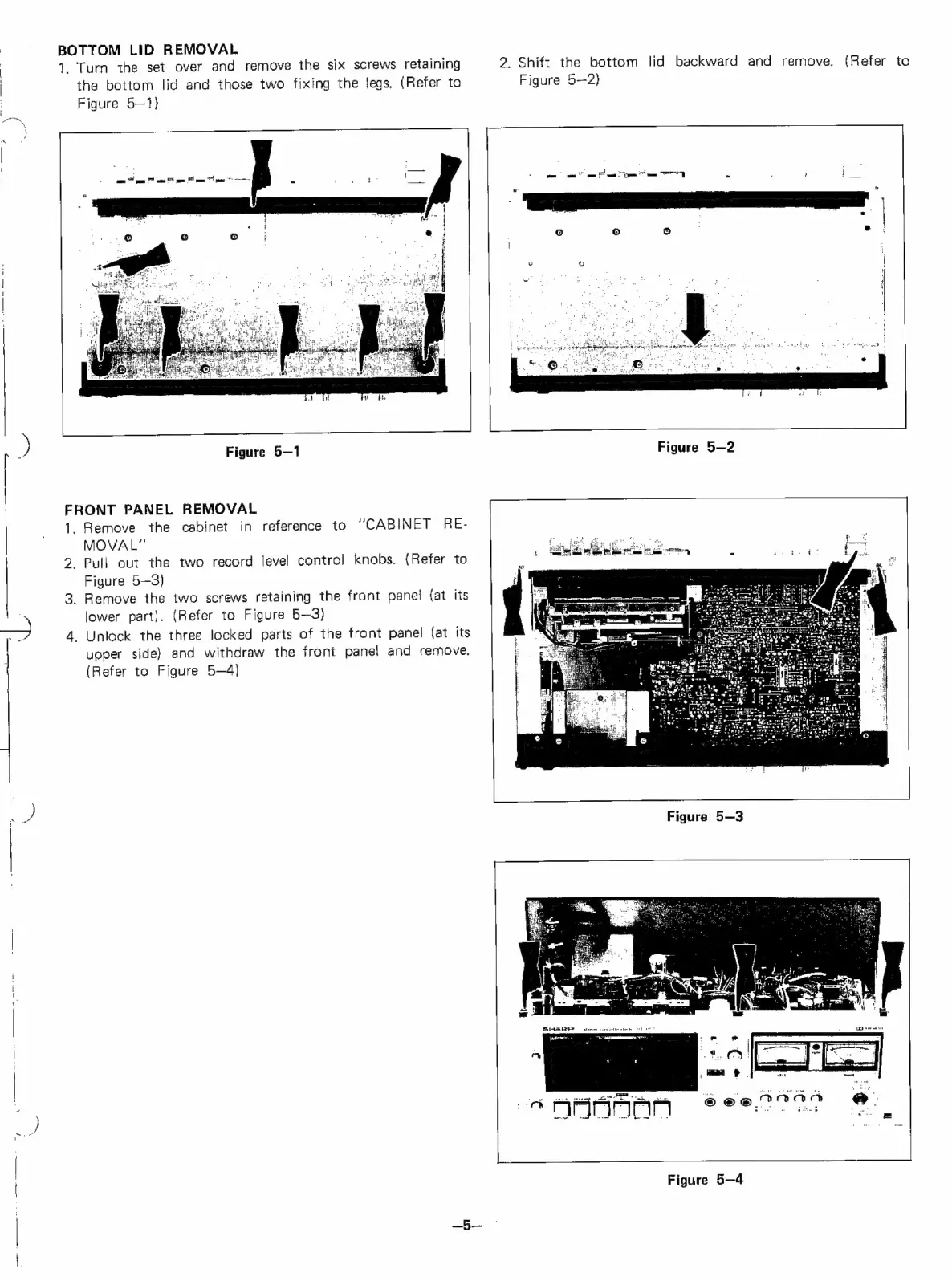

BOTTOM LID REMOVAL
1.
Turn
the
set
over
and
remove
the
six
screws
retaining
the
bottom
lid
and
those
two
fixing
the
fegs.
(Refer
to
Figure
5—1}
—
a
—
= |
=
|
4
Figure 5—1
FRONT PANEL REMOVAL
1.
ze
Remove
the
cabinet
in
reference
to
“CABINET
RE-
MOVAL”
Pull
out
the
two
record
level
control
knobs.
{Refer
to
Figure 5—3)
Remove
the
two
screws
retaining
the
front
panel
{at
Its
lower part). (Refer to Figure 5—3)
_
Unlock
the
three
locked
parts
of
the
front
panel
(at
its
upper
side)
and
withdraw
the
front
panel
and
remove.
(Refer
to
Figure
5—4)
2. Shift the bottom
Figure 5—2)
lid backward and remove. (Refer to
Figure 5—2
Figure 5—3
Figure 5—4
