9

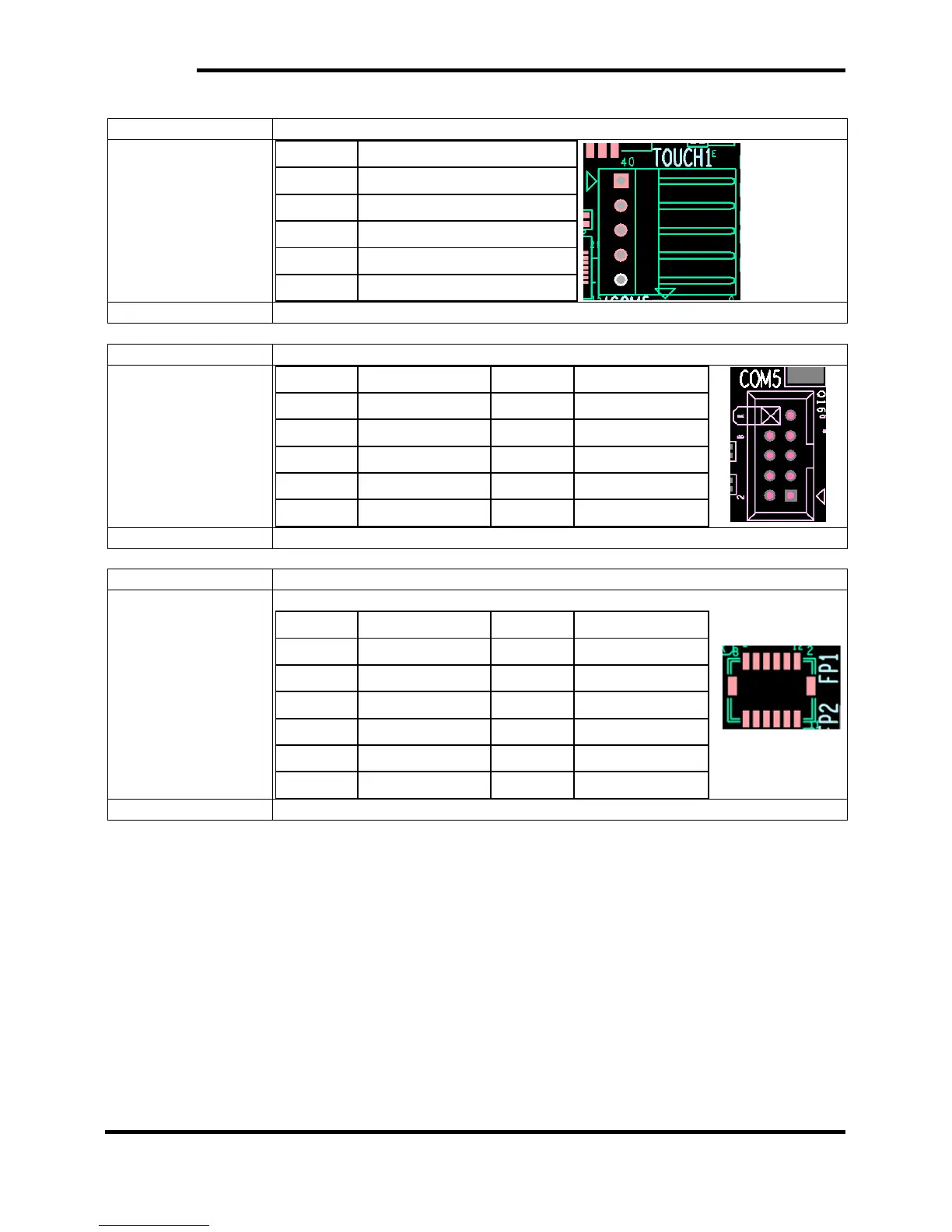

Header location
TOUCH1 (for RZ-E601)
Setting drawing &
descriptions
Pin #
Pin definition
1
UL
2
UR
3
SENSE
4
LL
5
LR
Function
R-Touch header
Header location
COM5
Setting drawing &
descriptions
Pin #
Pin definition
Pin #
Pin definition
1
DCD
2
DSR
3
RXD
4
RTS
5
TXD
6
CTS
7
DTR
8
RI
9
Ground
10
Key
Function
Internal COM header
Header location
FP1 (for RZ-E701)
Setting drawing &
descriptions
Pin #
Pin definition
Pin #
Pin definition
1
NC
2
Ground
3
SUSLED_N
4
HDDLED_N
5
3VSB
6
LAN_LED
7
SMBDATA
8
SMBCLK
9
PWR_SW_N
10
Ground
11
VCC3
12
OSD_INT_L
Function
Front panel header.
