SJ-58L-A2
SJ-63L-A2
SJ-68L-A2/R2

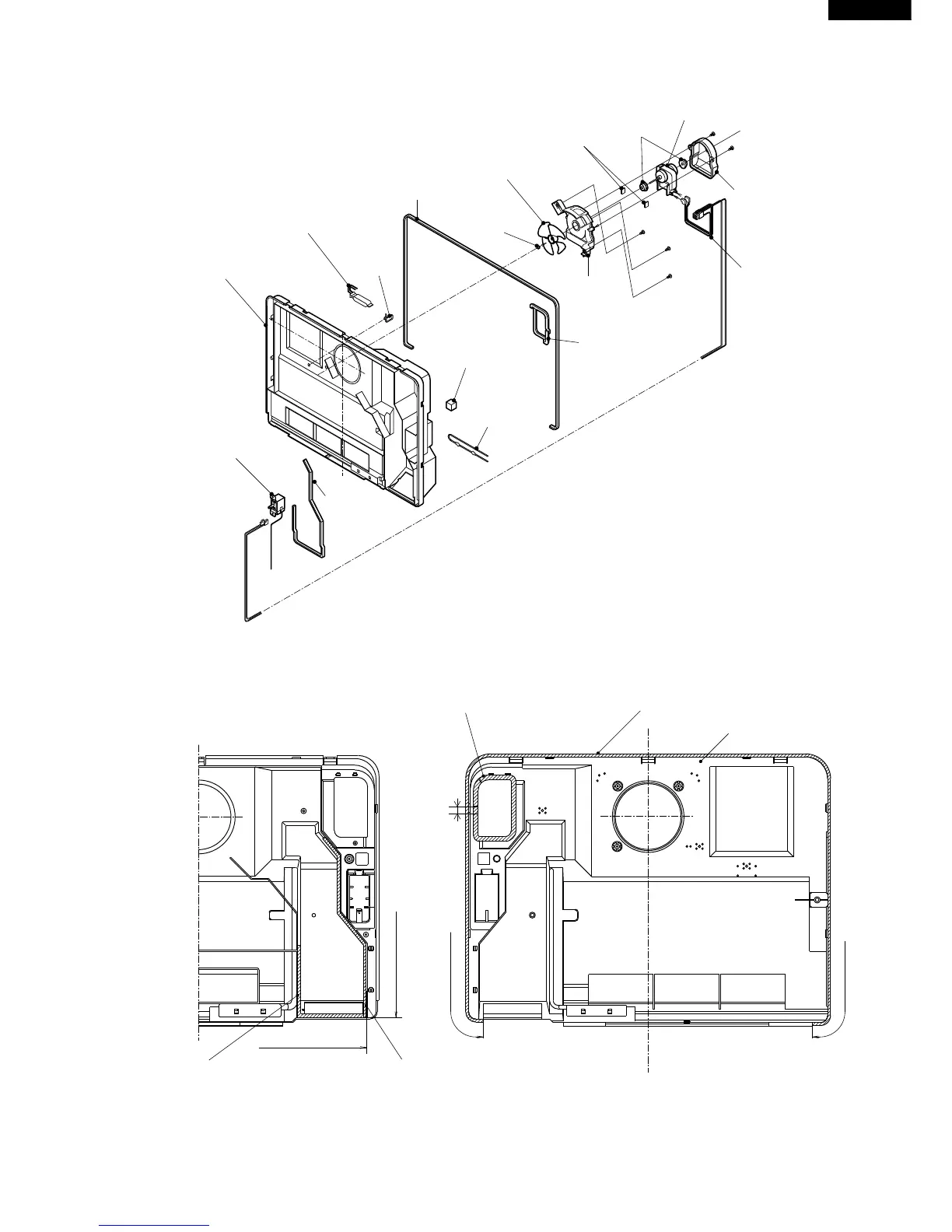

3. E.V COVER ASSEMBLY
Defrost thermo. ass’y
E.V cover
E.V cover
sealer D
(2 pieces)
F-thermostat
L-band C
E.V cover sealer A
Fuse ass’y
E.V cover sealer B
E.V cover sealer C
Lead E.V-cover
ass’y
Fan motor
holder A
Fan motor
holder B
Propeller Fan 100
Fan clamp
Motor
cushion
U-sealer
handle
Fan motor
Figure A-11
Figure A-12
(1) Sticking of Sealers to E.V cover
E.V cover sealer B
E.V cover sealer D (b)
E.V cover sealer D (a)
E.V cover sealer A
E.V cover
Sticking start (b)
Sticking start (a)
Sticking start
Overlap 10mm(min)
[Front side] [Back side]
Sticking start
