18
SJ-58L-A2
SJ-63L-A2
SJ-68L-A2/R2
(5)

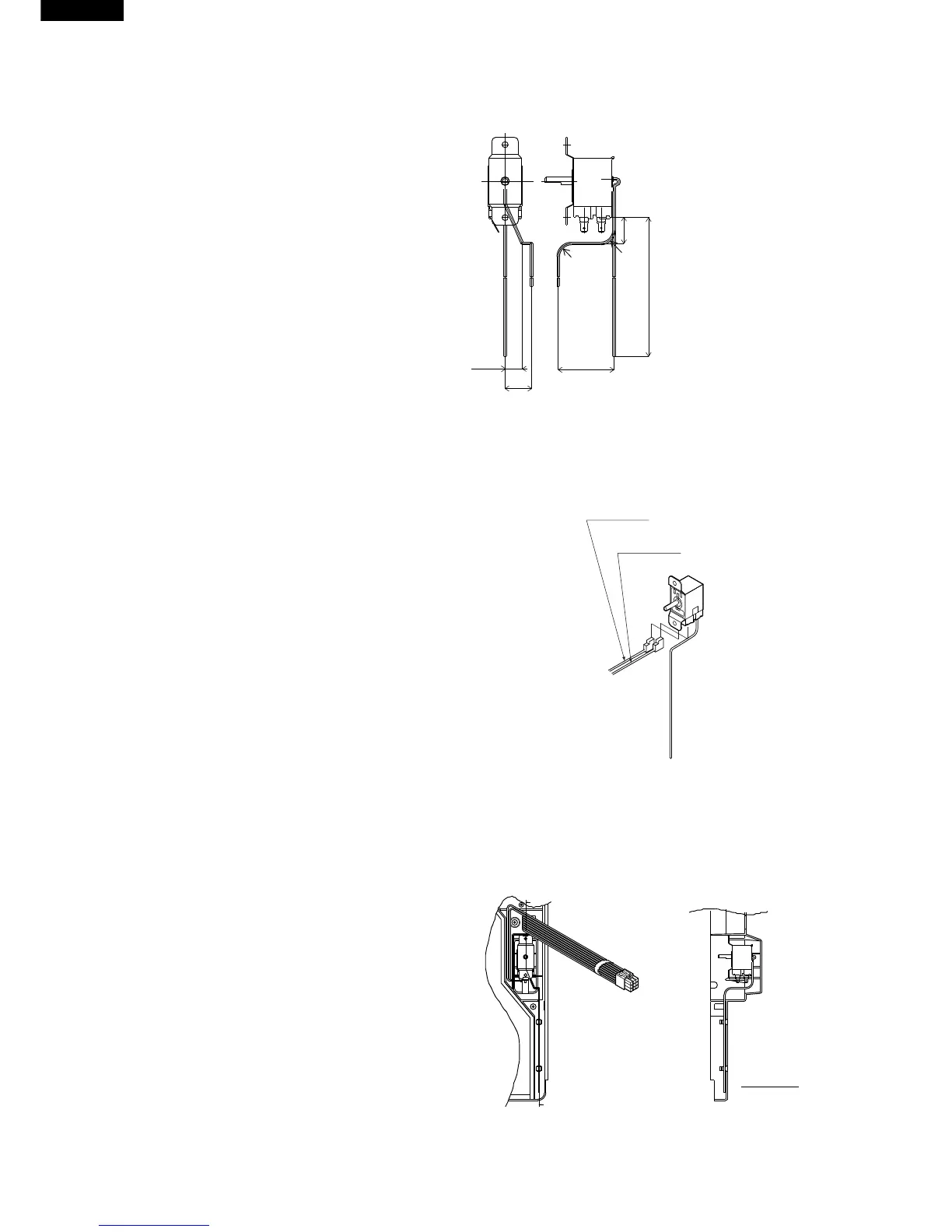

Setting of F-thermostat
(5)-1
Form capillary tube of F-thermostat.
42mm
13mm
20mm
20mm
230mm
R10mm
R10mm
Note
• Bending radius of
capillary tube should be
R5mm to R10mm.
Figure A-19
F
F
SEC. F-F
(5)-3
Set to E.V cover.
Figure A-21
(5)-2
Insert terminal of Lead EV-cover ass'y.
RED
BRO
WN
(front side)
(back side)
Figure A-20
17
19
Table of Contents
Table of Contents
1
Cautions and Informations
2
Specifications
3
External Description
4
Constructions
4
Designation of Various Parts
4
List of Electrical Parts
5
Wiring Diagram
6
Electric Accessories Layout
7
Temperature Control of Refrigerator
8
Temperature Control of Freezer
8
Adjustable Temperature Control
8
Functions
8
Defrosting
9
No Defrosting Operation Is Necessary
9
Where Is Melted Frost Brought
9
Dew Prevention
10
Inspection of Initial Starting
10
Inspection of Cooling Unit
10
Inspection of Defrost Device
10
R-Control Cov. Assembly
11
Forming Sensor of Damper Thermo
11
Assembling Procedures of Main Parts and Cautions
11
Fixing of Defrost Timer, R Fan Thermo. Ass'y Cover to R-C Box Cover
12
Sticking of Sealers to R Air Guider a
12
R Lamp Box Assembly
13
Fixing of Lamp and Lamp Socket
13
Fixing of R-Fan Motor and Fan
14
Sticking Warning Label
14
E.V Cover Assembly
15
Sticking of Sealers to E.V Cover
15
Fixing of Fan Motor and Fan
16
Setting of Fan Motor Ass'y , Defrost Thermo. Ass'y and Fuse Ass'y
17
Inserting of Pins
17
Setting of F-Thermostat
18
Fitting Instruction
19
Parts List
19
Tools Required
19
Modification Procedure of the Door Open Side
19
Replacing Handles and Door Parts
20
Mounting the Door/Finishing
21
Cooling Unit
22
Location
23
Electric Parts
24
Mechanical Parts
24
Replacement Parts List
24
Door Parts
33
Cabinet Parts
34
