16
SJ-58L-A2
SJ-63L-A2
SJ-68L-A2/R2

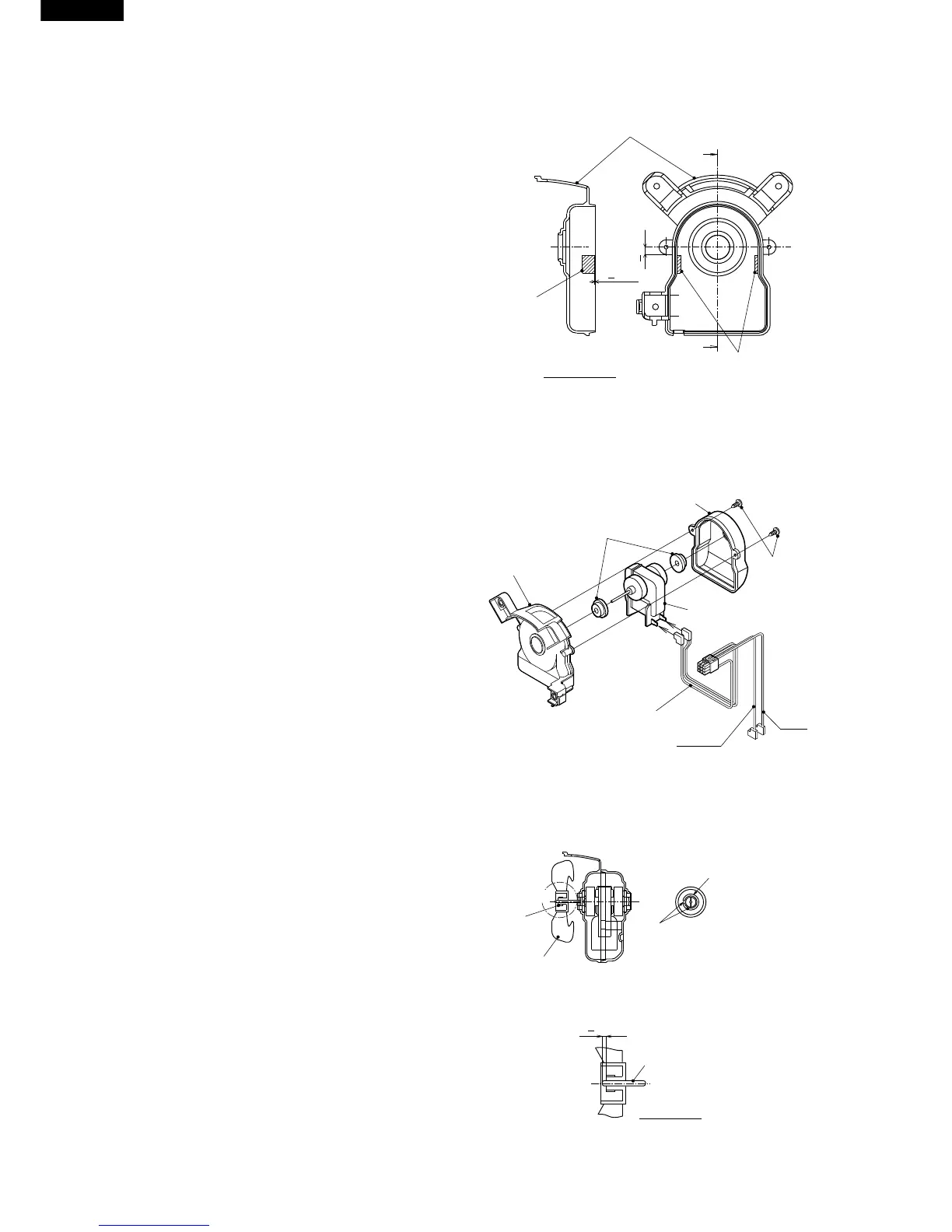

(2) Fixing of Fan motor and Fan
(2)-1 Stick U-sealer handle to Fan motor holder A.
Fan motor holder A
U-sealer handle
U-sealer handle
7 2mm
+
+
0 1mm
C
C
SEC. C-C
Figure A-15
Figure A-13
(2)-4 Set Fan clamp to Propeller fan 100 and insert
it to the shaft of Fan motor.
Fan clamp
Propeller
fan 100
Fan clamp
Slit
Slit of each Fan clamp
and Propeller fan
should not be at same position.
Shaft
4 0.5mm
+
Detail of D
D
(2)-2 Insert the terminals of Lead EV-cover ass'y to
R-fan motor.
(2)-3 Fix two Motor cushions to R-fan motor, and set it
at Fan motor holder A and B.
Then fix with Tapping screw.
Fan motor
holder A
Fan motor
holder B
Motor cushion
Tapping
screw
Fan motor
Lead EV-cover ass’y
RED
BROWN
Figure A-14
