Service Manual
CHAPTER 5. WIRING DIAGRAM

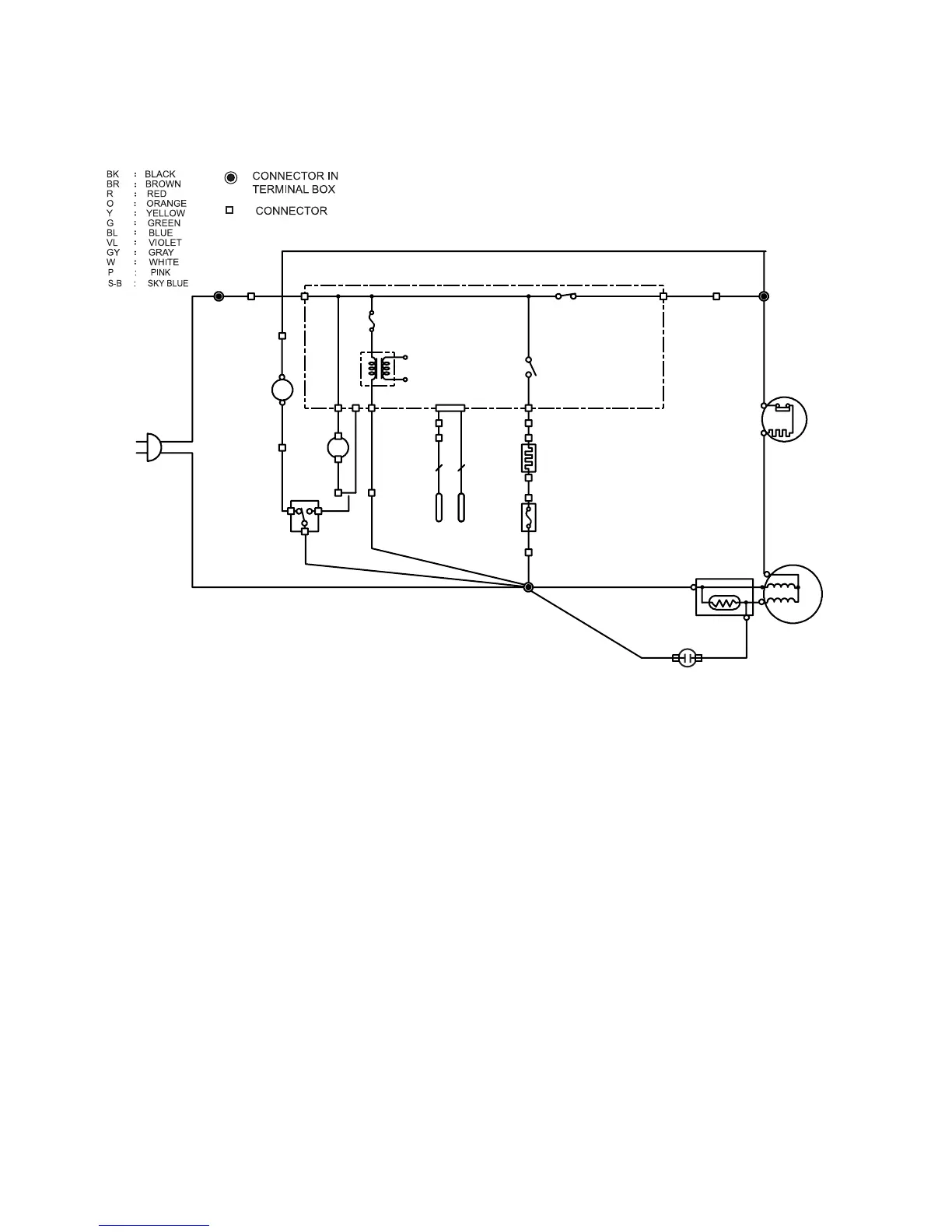

[1] WIRING DIAGRAM
Be sure to replace the electrical parts with specified ones for maintaining the safety and performance of the set.
SOURCE CORD
(BR)
FAN MOTOR
FM
(O)
DOOR SWITCH
(BR)
L
LAMP
(S-B)
(BL)
DEF-THERMISTOR
R-THERMISTOR
22
FUSE
(W)
DEF-HEATER
(BK)
PWB
STARTING RELAY
COMPRESSOR
PROTECTOR
(GY)
RUNNING CAPACITOR
