SJD24NSLG
9 – 2

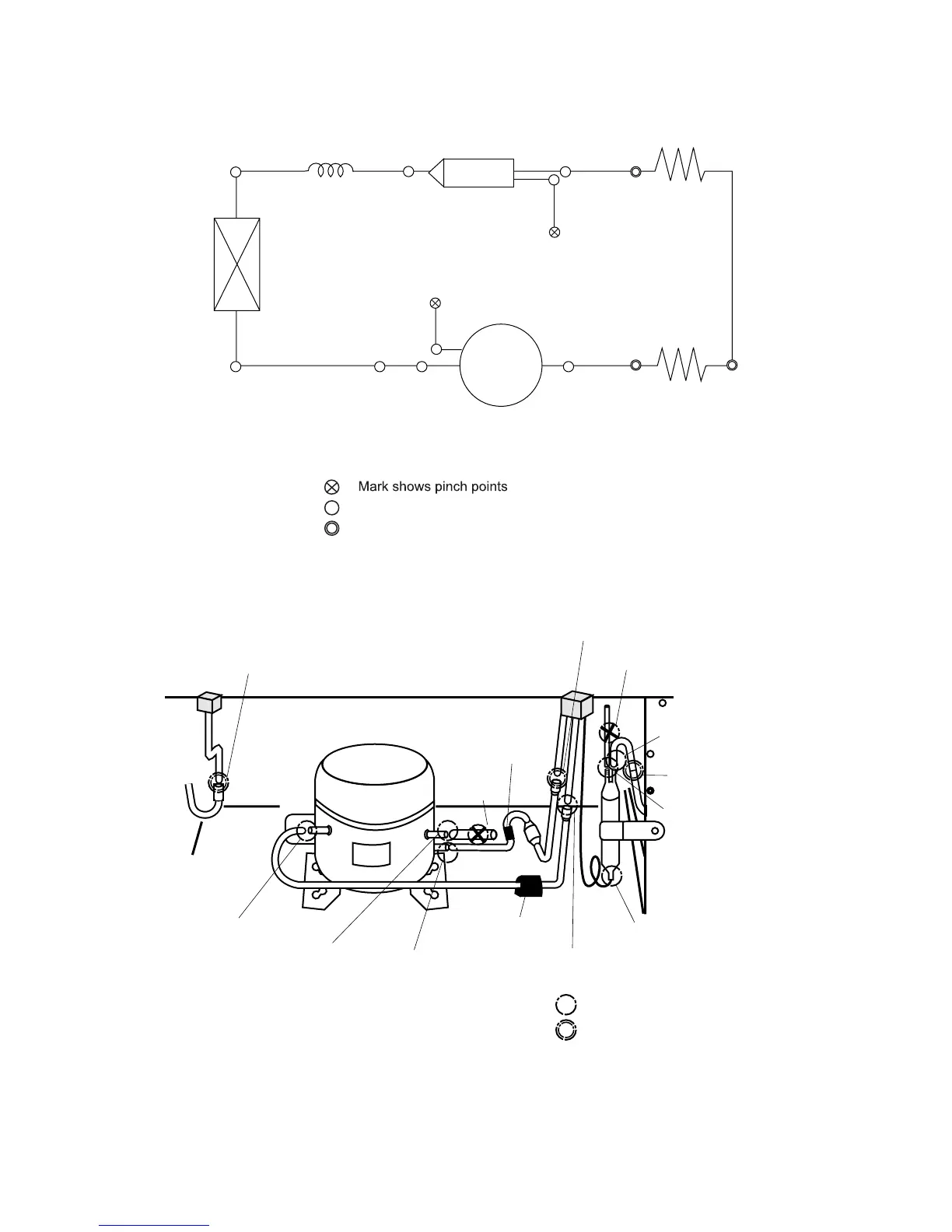

[2] LOCATION
1. Location 1
2. Location 2
* Copper back condenser is used in some models.Before repairing,check the Back condenser is copper or iron.
Capillary tube
Dryer
Charge pipe
Dryer connector
Charge pipe L
Suction pipe S.P
connector
Discharge
P connector
Evaporator
Compressor
Back condenser
Hot pipe
Mark shows Ag brazing points
Mark shows Cu brazing points
*
Charge pipe
to Dryer
Dryer connector
to Dryer
Hot pipe
to Dryer connector
Pinch Point
Dryer
to Capillary tube
Compressor's discharge pipe
Suction butyl
to Discharge P. connector
Charge pipe L
to Compressor's
process tube
Back condenser
to Hot pipe
D.P. butyl
Discharge P. connector
to Back condenser
Pinch point
S.P connector
to Compressor's
suction tube
S.P connector
to Suction pipe
Mark shows Ag brazing points
Mark shows Cu brazing points
*
