Sharp SJ-D28N-SLG - Electric Accessories Layout

SJD24NSLG
5 – 2

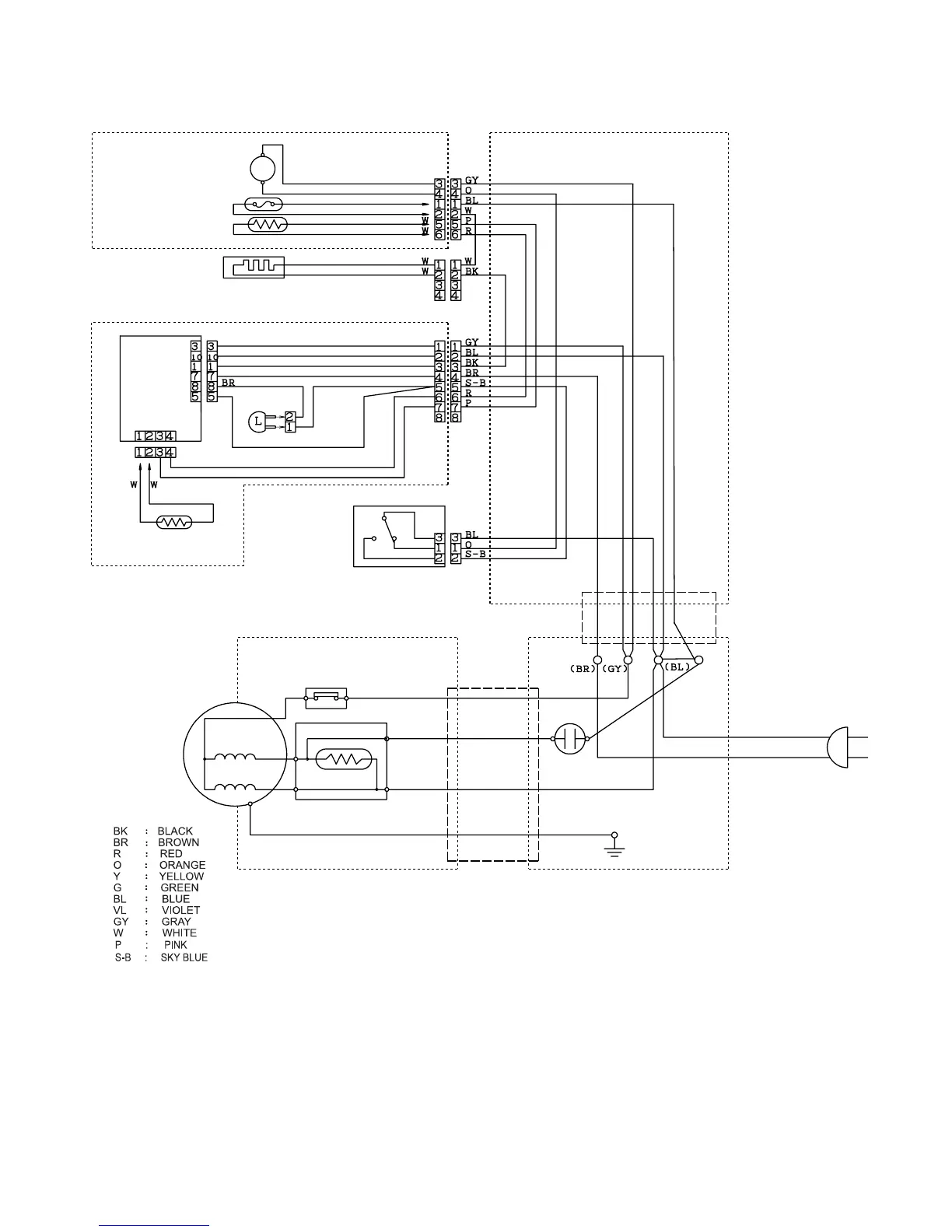

[2] ELECTRIC ACCESSORIES LAYOUT
F-LOUVER ASS’Y
FAN MOTOR
FM
LEAD EV COVER
FUSE
DEF-THERMISTOR
DEF-HEATER
R-CBOX-K
PWB
LAMP
R-THERMISTOR
DOOR SWITCH
TERMINAL COVER
COMPRESSOR
PROTECTOR
STARTING RELAY
CABINET
HARNESS FL ASS’Y
SOURCE CORD
RELAY WIRE ASS’Y
(BOTTOM ANGLE)
RUN CAP.
