Sharp SJ-D28N-SLG User Manual

SJD24NSLG
8 – 3

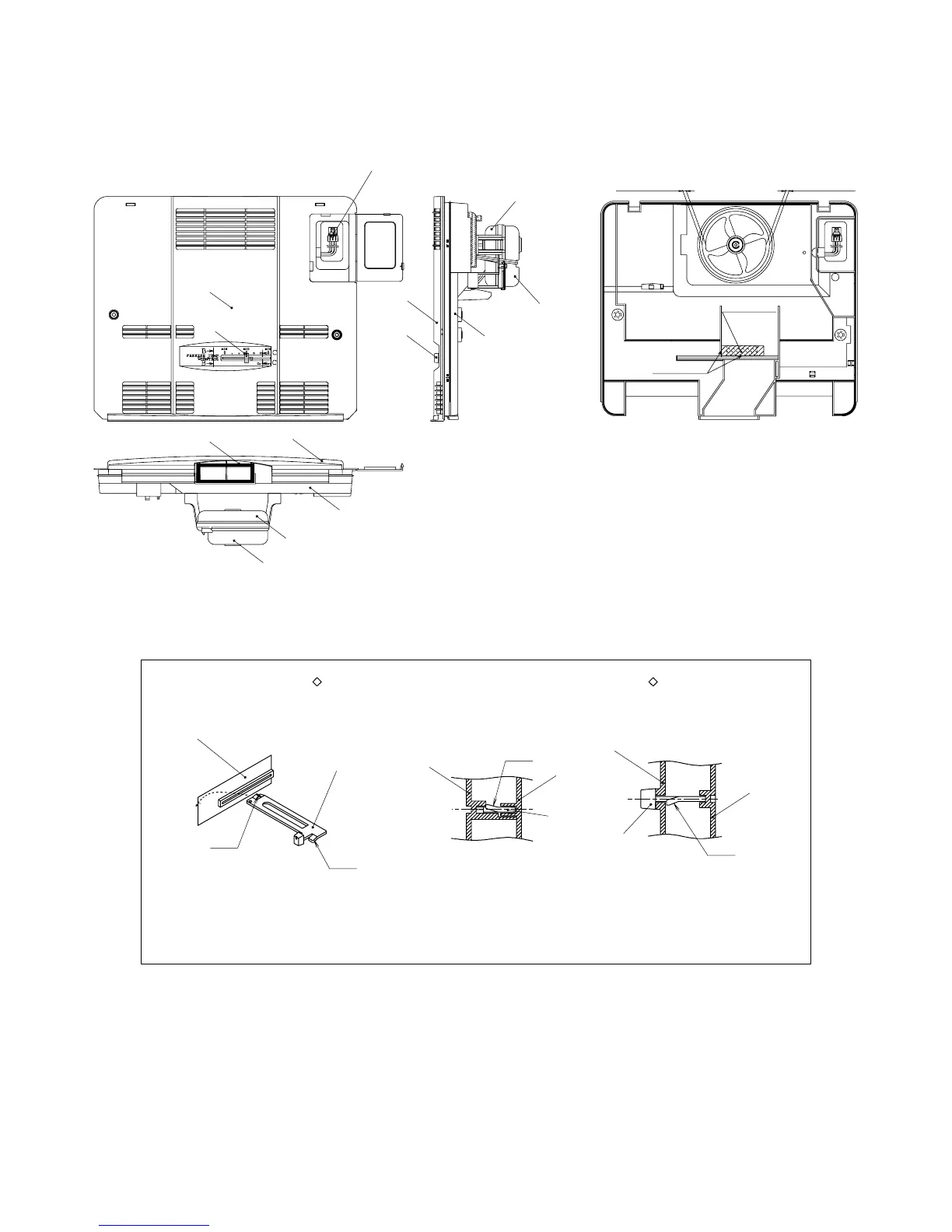

3. F - louver ass'y
1. Set F-louver to front side of EV-cover with double face tape (W15xL45mm.).
2. Insert F-control knob to F-louver. Then set to front side of EV-cover.
3. Stick EVC-sealer c to bottom of F-louver ass'y.
F-louver
F-control knob
EVC-sealer c
F-louver
Fan motor holder a
Fan motor holder b
F-louver
F-control knob
Fan motor holder a
Fan motor holder b
EV-cover
NO CLEARANCE
Double face tape
W15xL45
more than 3.5mm. more than 3.5mm.
Figure A-8
Lead EV-cover
EV-cover
F-louver
F-control knob
arm B
F- louver
arm A
F-control knob
F-louver
F-control knob
SEC. B-B SEC. C-C
Attachment specification of the F-control knob
arm B
The F-control knob is inserted into the ditch of the fan louver.
EV-cover
EV- cover
arm A
Figure A-9
