SJD24NSLG
8 – 5

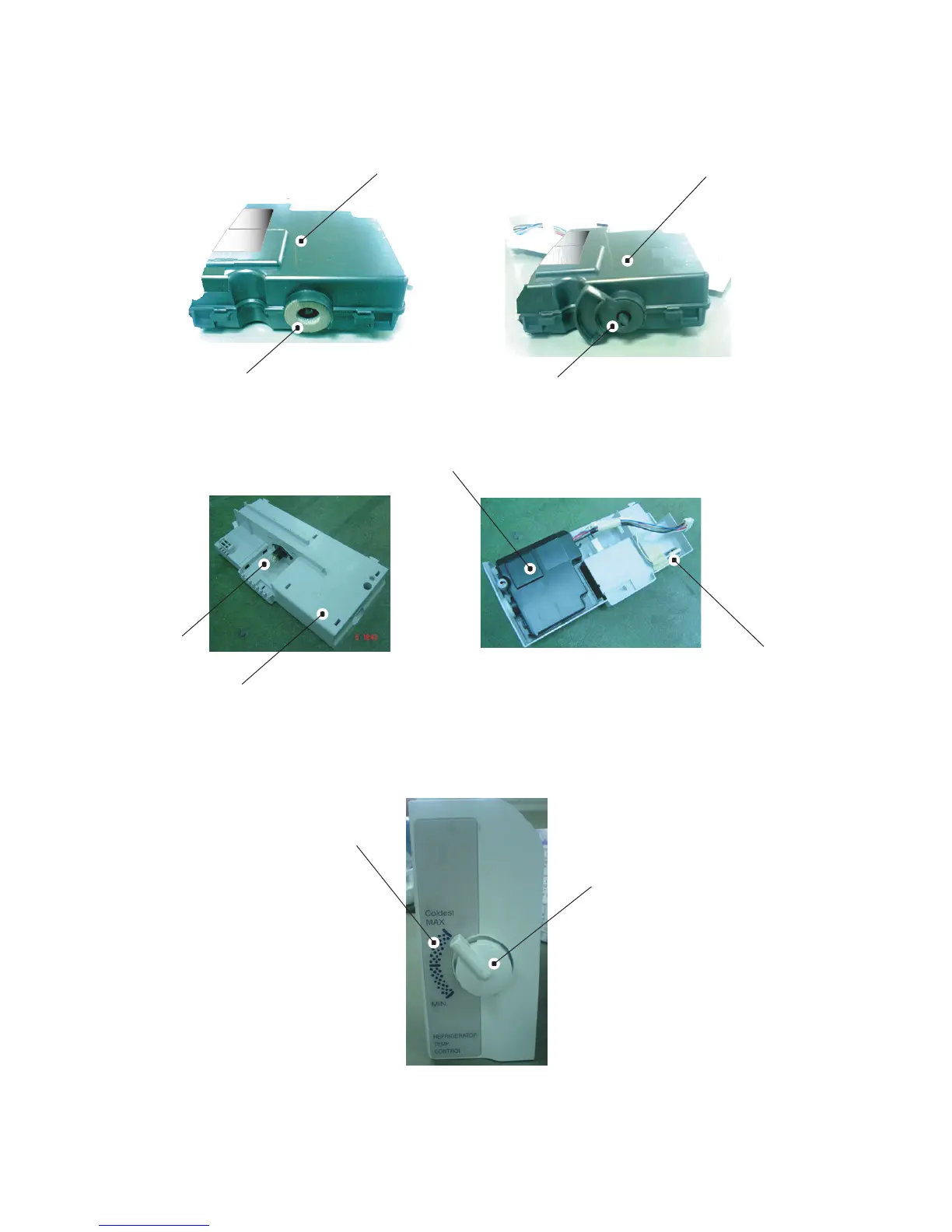

5. Assemble Lamp with R-C Box cover then fix with 2 tapping screw.
6. Stick Knob sealer on R-C Box cover and then insert Knob joint to R-C Box cover.
7. Assemble the PWB ass'y with R-C Box cover. And place the R-Thermistor on the groove of R-C Box cover.
8. Insert Lead R-C Box to Lamp.
9. Insert R-Control knob to R-C Box cover.
10.Stick Control Label on R-C Box cover.
R-C Box cover
Knob sealer
R-C Box cover
Knob joint
Figure A-12
PWB holder
R-Thermistor
R-C Box cover
Lamp
Figure A-13
Control label
R-Control knob
Figure A-14
To Next Page
