4. Replace Def. heater ass’y with new one.
5. Bend end of heater support 90.
6. Assemble Defrost heater to Heater Support.
7. Assemble Heater cover to Heater Support. Bend top edge to out-
side.
8. Roll the leading wire Sealer to Lead wire Defrost Heater.
3. Installing of Evaporator
1. Install Evaporator as shown in Figure.A-15 in the reverse order of
Figure.A-16.
2. Correct the deformed fin.
NOTE: 1.When installing Evaporator, take care not to deform signifi-
cantly and break the pipes.
2.Take care not to damage the lead wires and hurt yourself by
the fin of Evaporator.
3.You shouldn’t touch Defrost Heater with your bare hand.
(you should were pure gloves)
4.You should wipe that with alcohol. When you touch Defrost
heater with your bare hand.

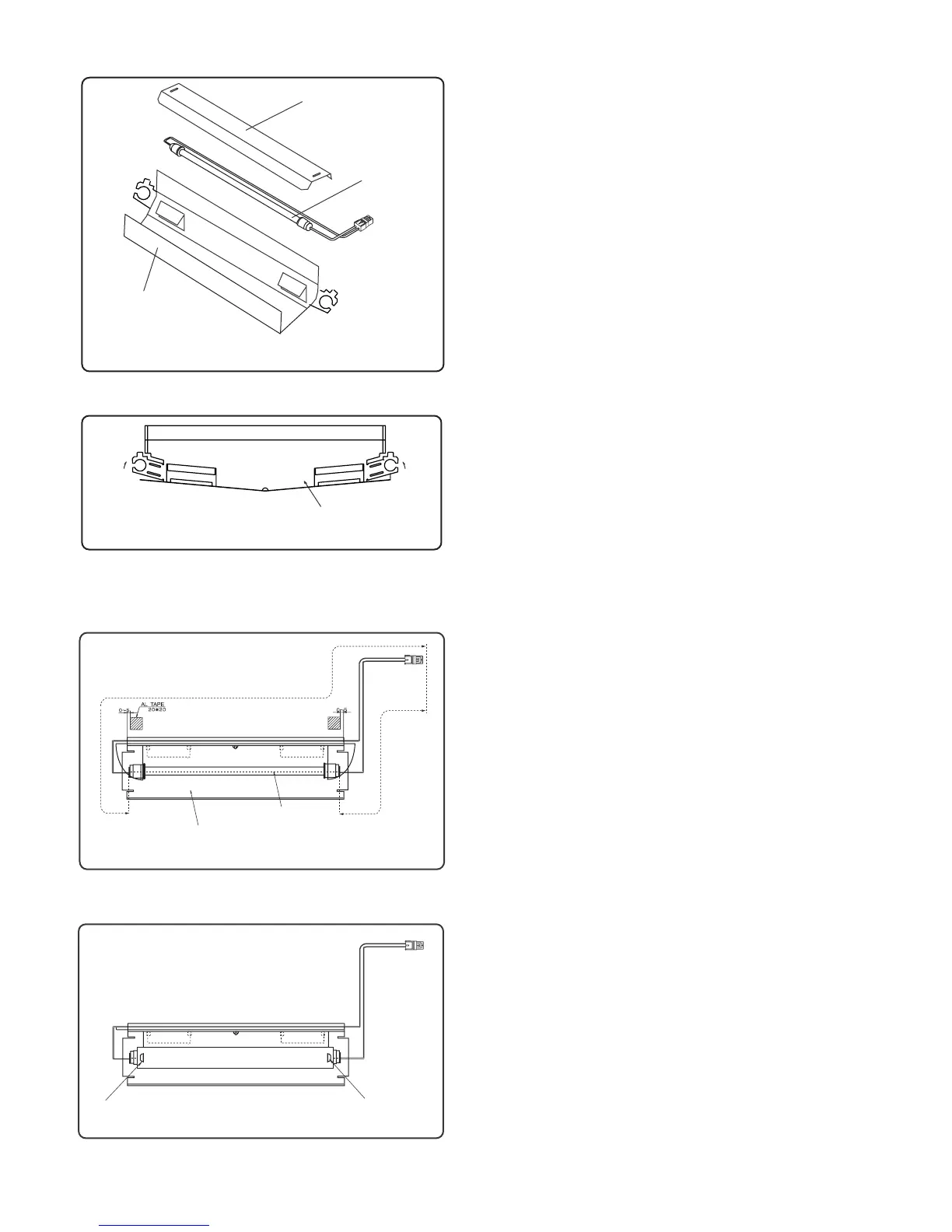

Heater support
Def. heater ass'y
Heater cover
Figure A-20
Heater Support
BEND
BEND
Figure A-21
To Next Page
