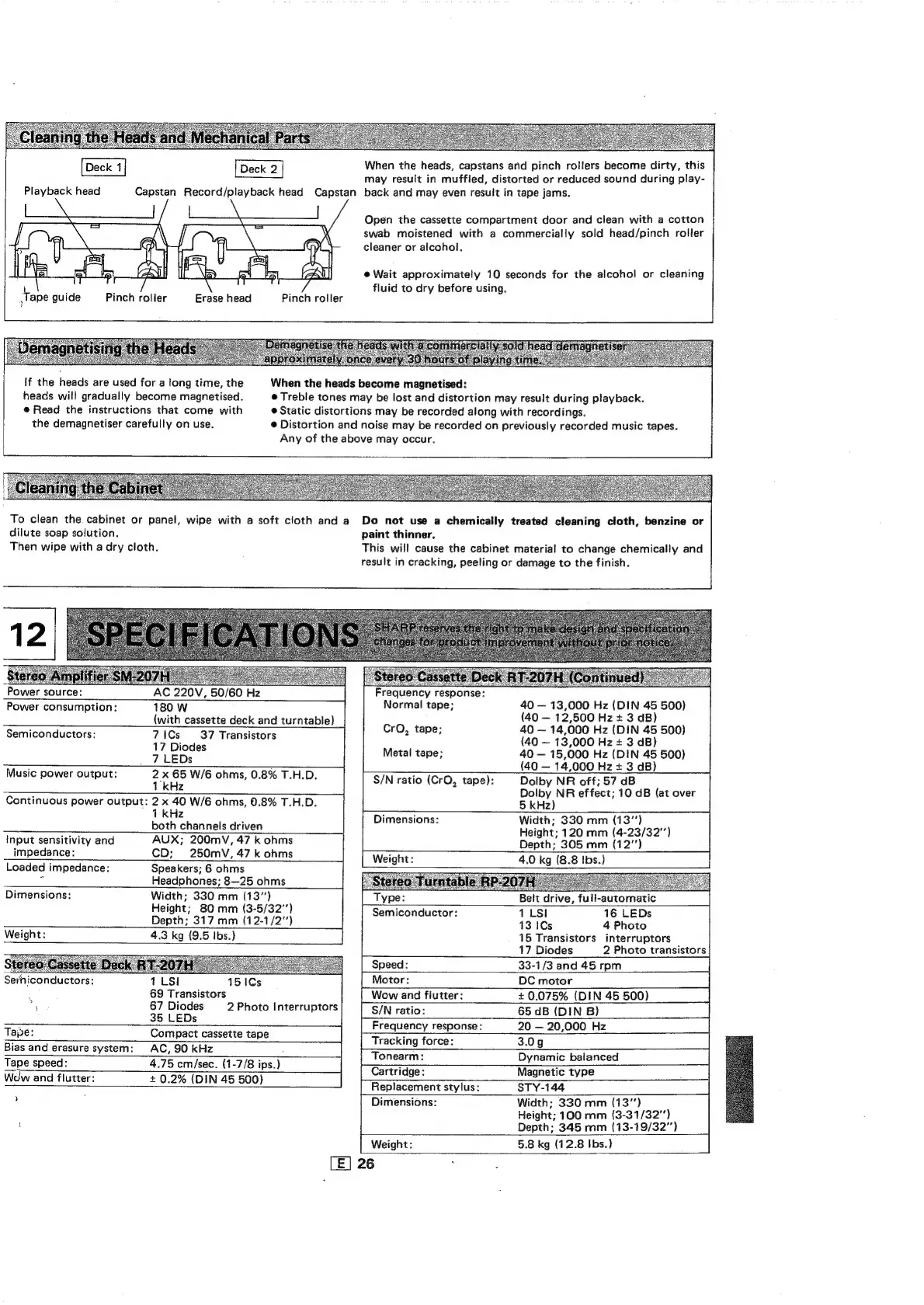

Playback head
Capstan Record/playback head Capstan
A
PTY
Erase head Pinch roller
Pinch roller
i
Tape guide
When the heads, capstans and pinch rollers become dirty, this
may result in muffled, distorted or reduced sound during play-
back and may even result in tape jams.
Open the cassette compartment door and clean with a cotton
swab moistened with a commercially sold head/pinch roller
cleaner or alcohol.
@ Wait approximately 10 seconds for the alcohol or cleaning
fluid to dry before using.
If the heads are used for a tong time, the
heads will gradually become magnetised.
@ Read the instructions that come with
the demagnetiser carefully on use.
When the heads become magnetised:
© Treble tones may be lost and distortion may result during playback.
@ Static distortions may be recorded along with recordings.
® Distortion and noise may be recorded on previously recorded music tapes.
Any of the above may occur.
Sehemsth th Bees i RSME NEI aa
AC 220V, 50/60 Hz
180 W
(with cassette deck and turntable)
71Cs 37 Transistors
17 Diodes
__7 LEDs
2 x 65 W/6 ohms, 0.8% T.H.D.
1 kHz
Continuous power output: 2 x 40 W/6 ohms, 0.8% T.H.D. |
i kHz
both channels driven
AUX; 200mV, 47 k ohms
CD; 250mV, 47 k ohms
Speakers; 6 ohms
Headphones; 8—25 ohms |
Power consumption:
Semiconductors:
Music power output:
Input sensitivity and
impedance:
Loaded impedance:
Dimensions: Width; 330 mm (13”)
Height; 80 mm (3-5/32’)
Depth; 317 mm (12-1/2")
Weight: 4.3 kg (9.5 Ibs.)
Serniconductors: 1 LS! 15 ICs
‘ 69 Transistors
rs 67 Diodes 2 Photo Interruptors
35 LEDs
Tae: Compact cassette tape
Bias and erasure system: AC, 90 kHz :
Tape speed: 4.75 cm/sec. (1-7/8 ips.)
Wow and flutter: + 0.2% (DIN 45 500)
%
To clean the. cabinet or panel, wipe with a soft cloth and a
dilute soap solution,
Then wipe with a dry cloth.
Do not use a chemically treated cleaning cloth, benzine or
paint thinner,
This will cause the cabinet material to change chemically and
result in cracking, peeling or damage to the finish.
Frequency response
Normal tape;
40 — 13,000 Hz (DIN 45 500)
(40 — 12,500 Hz + 3 dB)
CrO, tape; 40 — 14,000 Hz (DIN 45 500)
(40 — 13,000 Hz + 3 dB)
Metal tape; 40 — 15,000 Hz (DIN 45 500)
(40 — 14,000 Hz + 3 dB)
Dolby NR off; 57 dB
Dolby NR effect; 10 dB (at over
5 kHz)
Width; 330 mm (13”)
Height; 120 mm (4-23/32"')
Depth; 305 mm (12”)
4.0 kg (8.8 Ibs.)
S/N ratio (CrO, tape):
[ Dimensions:
Weight:
Beit drive, full-automatic
1 LSI 16 LEDs
13 1Cs 4 Photo
15 Transistors interruptors
Type:
Semiconductor:
17 Diodes 2 Photo transistors
Speed: 33-1/3 and 45 rpm
Motor: DC motor
Wow and flutter: + 0.075% (DIN 45 500)
S/N ratio: 65 dB (DIN B)
Frequency response: 20 — 20,000 Hz
Tracking force: 3.0g
Tonearm: Dynamic balanced
Cartridge: Magnetic type
Replacement stylus: STY-144
Dimensions: Width; 330 mm (13"')
Height; 100 mm (3-31/32")
Depth; 345 mm (13-19/32”)
Weight: 5.8 kg (12.8 Ibs.)
