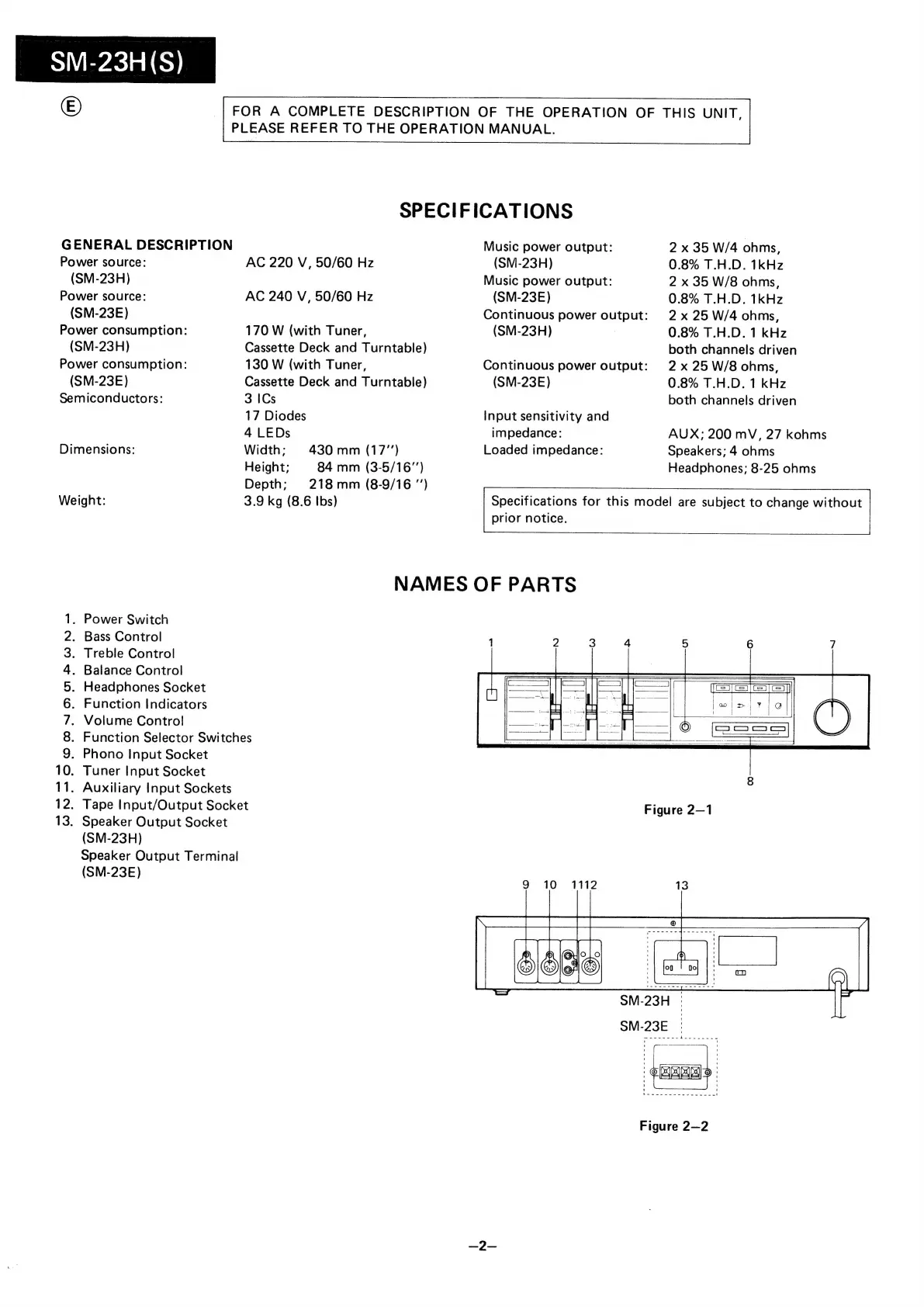

Sharp SM-23H - Page 2

SEV ES,
© | FOR A COMPLETE DESCRIPTION OF THE OPERATION OF THIS UNIT,
PLEASE REFER TO THE OPERATION MANUAL.
SPECIFICATIONS
GENERAL DESCRIPTION
Power source: AC 220 V, 50/60 Hz
Music power output: 2 x 35 W/4 ohms,
(SM-23H) 0.8% T.H.D. 1kHz
Music power output: 2 x 35 W/8 ohms,
(SM-23E) 0.8% T.H.D. 1kHz
Continuous power output: 2 x 25 W/4 ohms,
(SM-23H) | 0.8% T.H.D. 1 kHz
both channels driven
Continuous power output: 2x 25 W/8 ohms,
(SM-23E) 0.8% T.H.D. 1 kHz
both channels driven
Input sensitivity and
impedance:
Loaded impedance:
AUX; 200 mV, 27 kohms
Speakers; 4 ohms
Headphones; 8-25 ohms
Specifications for this model are subject to change without
prior notice.
NAMES OF PARTS
(SM-23H)
Power source: AC 240 V, 50/60 Hz
(SM-23E)
Power consumption: 170 W (with Tuner,
(SM-23H) Cassette Deck and Turntable)
Power consumption: 130 W (with Tuner,
(SM-23E) Cassette Deck and Turntable)
Semiconductors: 3 ICs
17 Diodes
4 LEDs
Dimensions: Width; 430mm (17”)
Height; 84 mm (3-5/16”)
Depth; 218mm (8-9/16 ”)
Weight: 3.9 kg (8.6 Ibs)
1. Power Switch
2. Bass Control
3. Treble Control
4. Balance Control
5. Headphones Socket
6. Function Indicators
7. Volume Control!
8. Function Selector Switches
9. Phono Input Socket
10. Tuner Input Socket
11. Auxiliary Input Sockets
12. Tape Input/Output Socket
13. Speaker Output Socket
(SM-23H)
Speaker Output Terminal
(SM-23E)
SS) SS)
|
ee ie Q
! i | i
oe I ee Oe Geen Oe eee
Figure 2—1
9 10 1112 13
Figure 2—2
