Sharp SMD2470AS Installation Manual

3
B
C
G
D
B
C
D
E
F
G
H
I
I
J
K
L
M
N
O
P
A
A
F
E

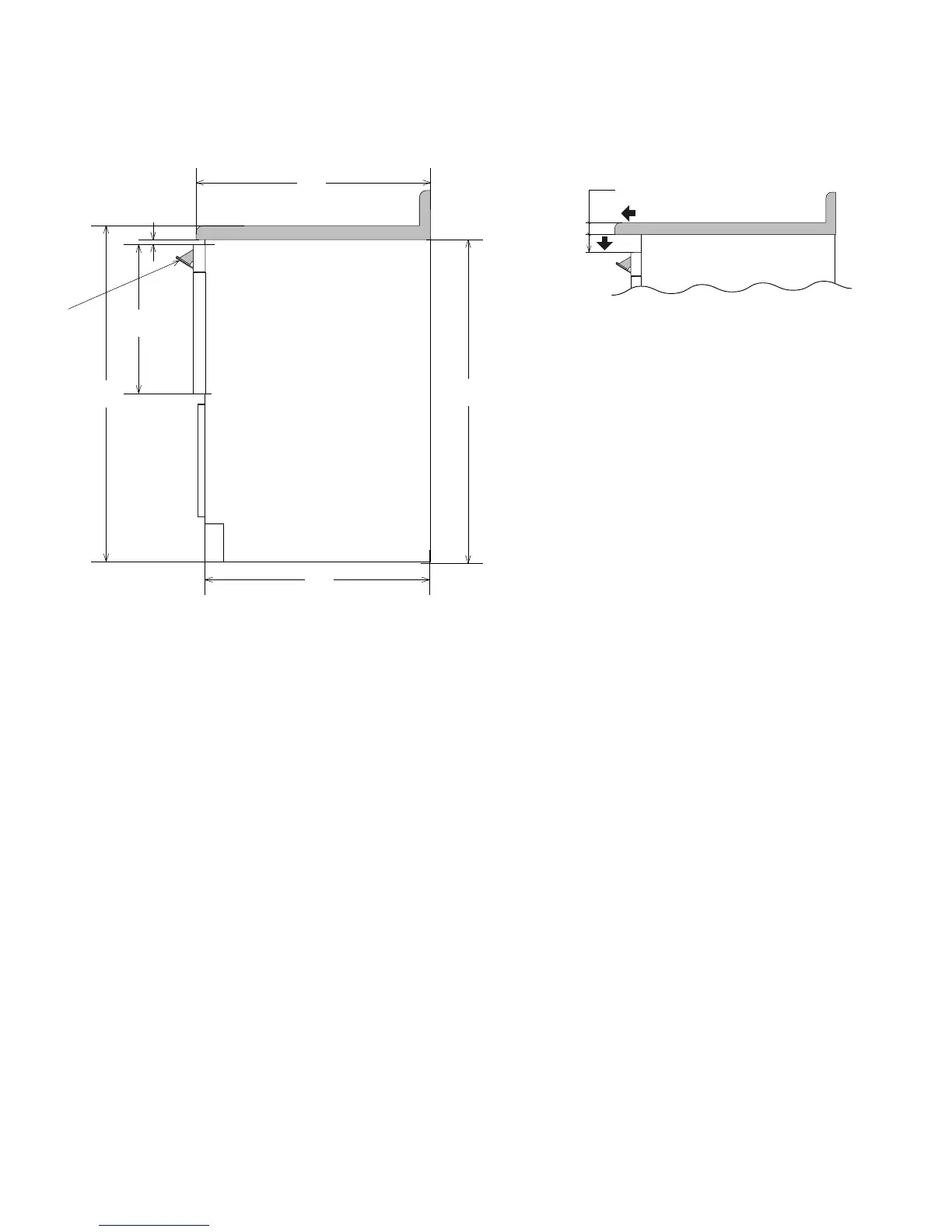

This drawing represents a typical standard cabinet. If installed in custom
cabinets with extended counter tops, take into account visibility and access
to controls. See Figure 3.
Move oven location downward for
extended countertops
Extended countertops

A. 25"
B. 1/2"
C. 15-7/8"
D. 36"
E. Control panel shown in open position
F. 2 4"
G. 34-1/2"

Sharp SMD2470AS Specifications

General

Capacity	1.2 cu. ft.
Power	1000 Watts
Sensor Cook	Yes
Finish	Stainless Steel
Voltage	120 Volts
Width	23 7/8 in
Type	Built-In Microwave Drawer
