Sharp SMD2470AS Installation Manual

5
A
D
G
H
E
C
J
F
I
B
A
B
D
F
G
E
H
P
K
N
O
J
I
I
L
C
M



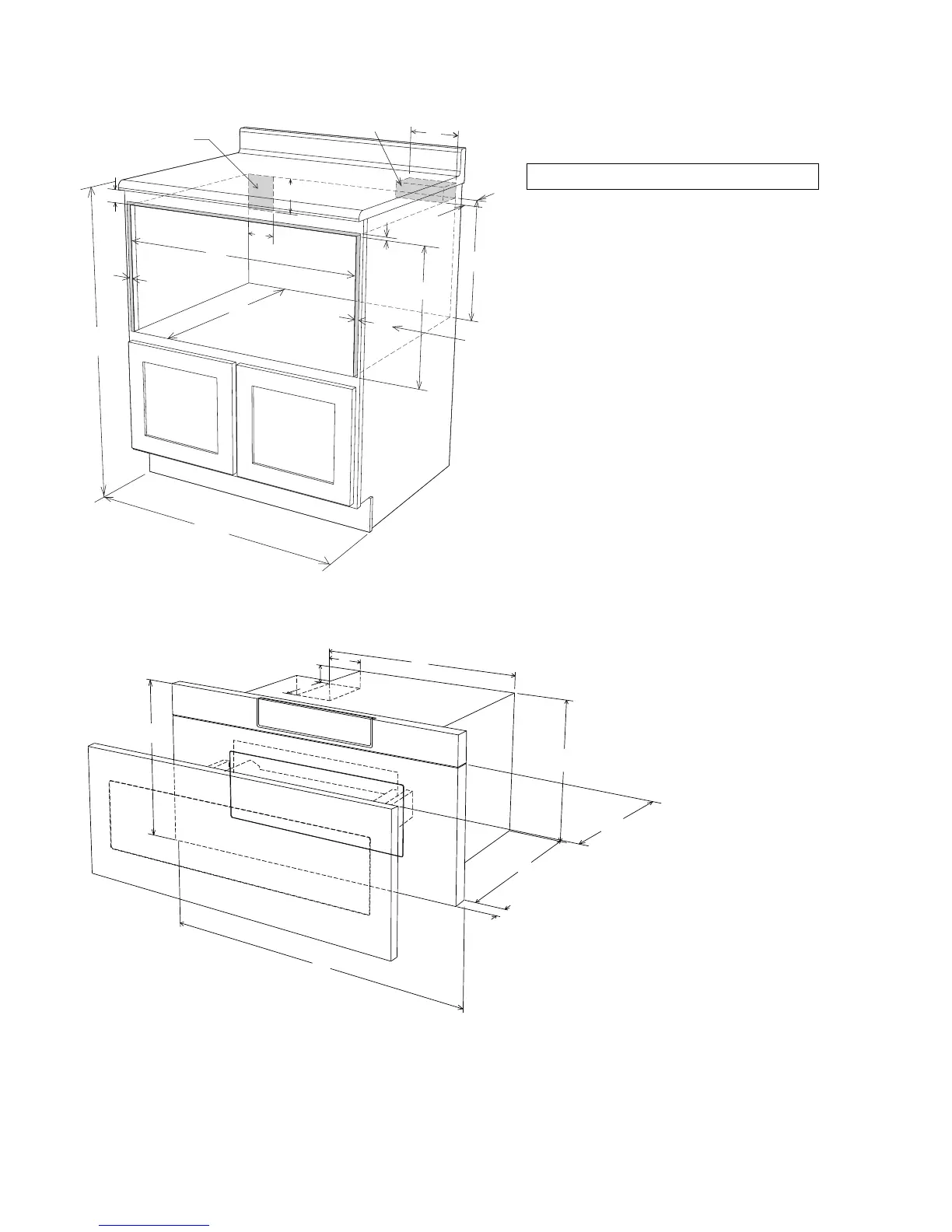

A. 6"
B. Suggested electrical outlet location*
C. Anti-Tip block
D. 5"
E. 3-1/2"
F. 4"
G. 28-7/16" opening
H. 14-13/16" to bottom of Anti-Tip block
I. Allow 3/4" overlap
J. 23-1/2" minimum depth
K. Allow 3/16" overlap
L. 36" countertop height
M. Allow 7/16" overlap
N. Floor must support 100 lb
O. 30" cabinet minimum
P. 15-9/16" opening
A. 21-5/8"
B. 4-11/16"
C. 1-3/4"
D. 21-7/8"
E. 29-7/8"
F. 15-7/8"
G. 14-19/32"
H. 1-9/64" door thickness
I. 15" auto drawer opening
J. 4"
Cutout Dimension 28
7
/16" x 15
9
/16"

Sharp SMD2470AS Specifications

General

Capacity	1.2 cu. ft.
Power	1000 Watts
Sensor Cook	Yes
Finish	Stainless Steel
Voltage	120 Volts
Width	23 7/8 in
Type	Built-In Microwave Drawer
