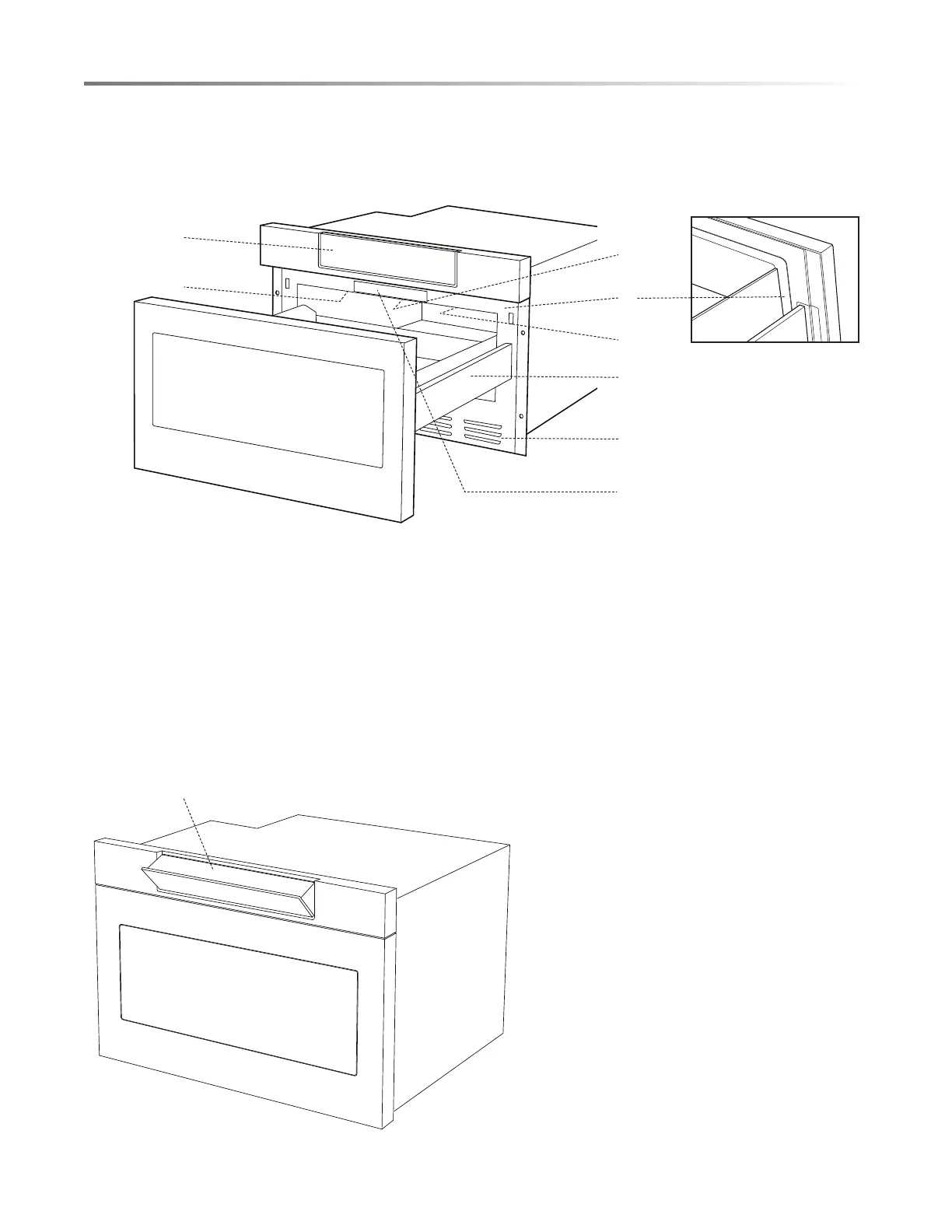

part naMes
MICROWAVE DRAWER
2
1
9
3
5
4
7
8
6
1 Hidden control panel & keysheet
2 Waveguide cover DO NOT REMOVE
3 Name plate: open the Microwave Drawer
fully. The label is beyond the back wall
of the microwave cavity facing up from
the at surface.
4 Drawer sealing surfaces
5 Drawer light
6 Microwave Drawer guides
7 Vent
8 Menu label
9 Keysheet
The keysheet is hidden behind the control panel door on
the top front face of the unit. To open, simply pull the
front top edge down until the key sheet is in full view.
To close, push the panel upward to the closed position.
The panel will be secured by magnetic latches in both
open and closed positions.
