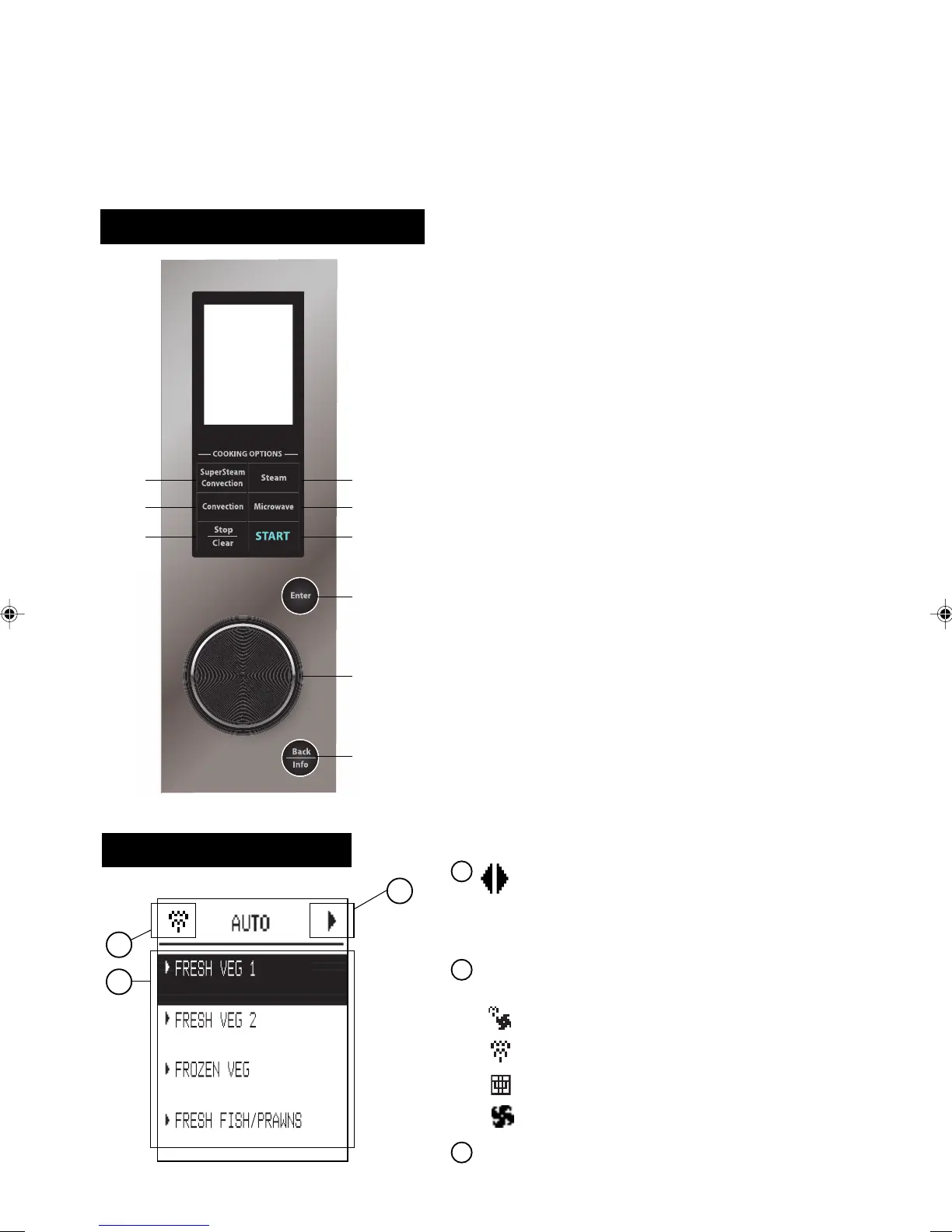

Touch Control Panel Layout
OPERATION OF CONTROL PANEL
The operation of the oven is controlled by pressing the appropriate pads arranged on the surface of the control panel.
An entry signal tone should be heard each time you press the control panel to make a correct entry.
In addition the oven will beep for approximately 2 seconds at the end of the cooking cycle, or 4 times when a cooking
procedure is required.
1. SuperSteam Convection pad
Press to select SuperSteam Convection cooking.
SuperSteam Convection has 2 options; "automatic cooking" and
"manual cooking".
2. Convection pad
Press to select Manual Convection cooking.
No automatic cooking mode for Convection.
3. Stop/Clear pad
Press to clear during programming.
Press once to stop operation of oven during cooking; Press twice to
cancel cooking programme.
4. Steam pad
Press to select Steam cooking.
Steam has 2 options; "automatic cooking" and "manual cooking".
5. Microwave pad
Press to select Microwave cooking.
Microwave has 3 options; "auto defrost", "sensor reheat" and "manual cooking"
6. START pad
Press to start oven after setting programmes.
7. Enter pad
Press to confirm your choice.
8. Knob
Turn to select desired option.
9. Back/Info pad
Press to go back to the previous page during programming before
pressing START.
Press to do maintenance to your oven, or customise it.
Arrows indicate more than one page; when you
see an arrow, you can turn the knob to move back
and forth between pages. When there are no
arrows, you can go back to the previous page by
touching Back/Info.
The illustration at the top of display indicates the selected
cooking mode.
SuperSteam Convection was selected.
Steam was selected.
Microwave was selected.
Convection was selected.
Words will light in the display to indicate features and
cooking instructions.
Display Information
1
2
3
1
2
3
1
2
3
4
5
6
7
8
9
