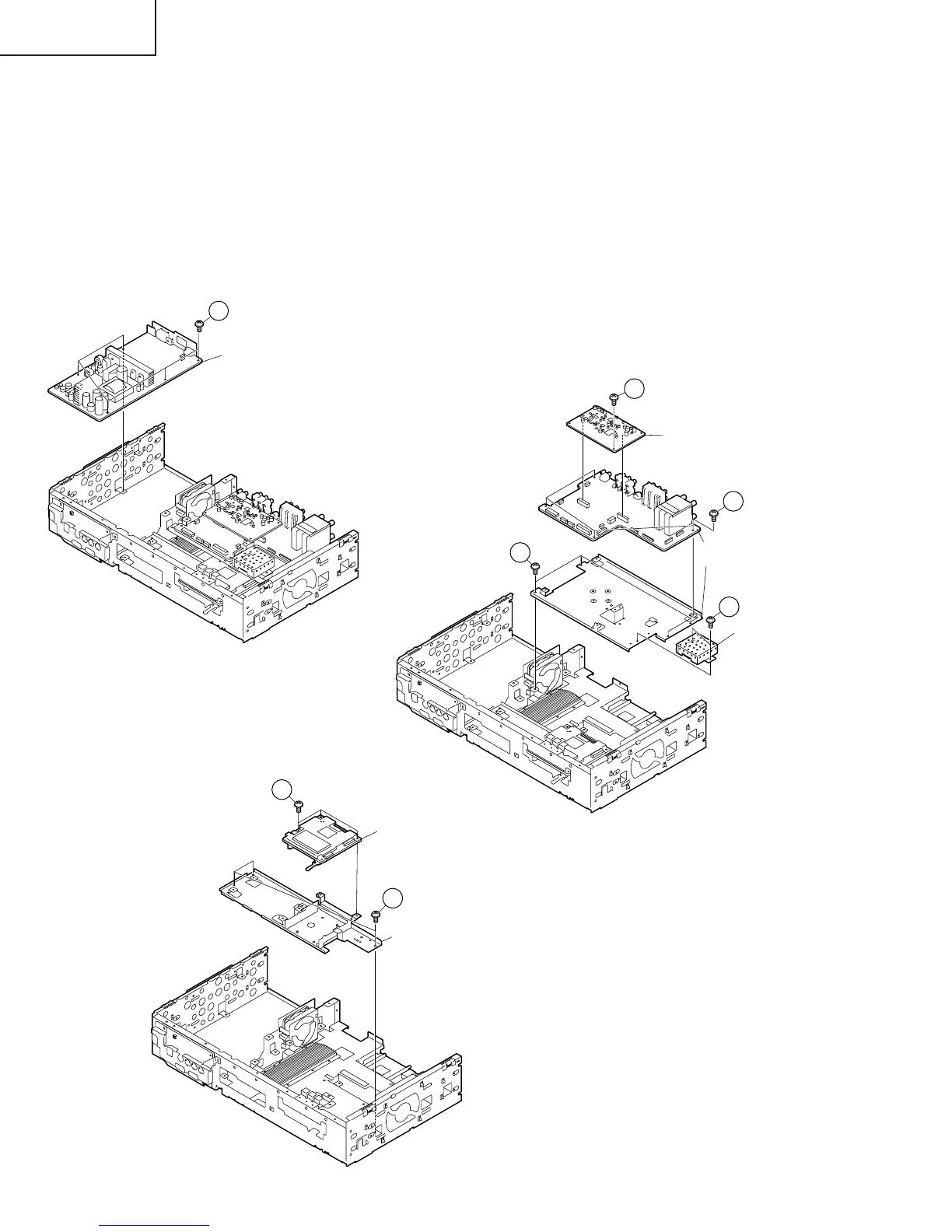

8. Remove the five lock screws from the Power Supply PWB.
9. Remove the AV SUB PWB, AV PWB and 1-Bit AMP PWB.
9-1. Remove the one lock screw from the AV SUB PWB.
9-2. Remove the four lock screws from the AV PWB.
9-3. Remove the two lock screws from the 1-bit AMP PWB.
9-4. Remove the four lock screws from AV PWB Angle.
10. Remove the PC Card PWB.
10-1. Remove the three lock screws from PC Card PWB.
10-2. Remove the three lock screws from the Card PWB Angle.
8
Power Supply PWB
9-4
9-3
9-2
9-1
AV PWB
AV PWB Angle
1-Bit Amplifier PWB
AV SUB PWB
10-1
10-2
PC Card PWB
Card PWB Angle
