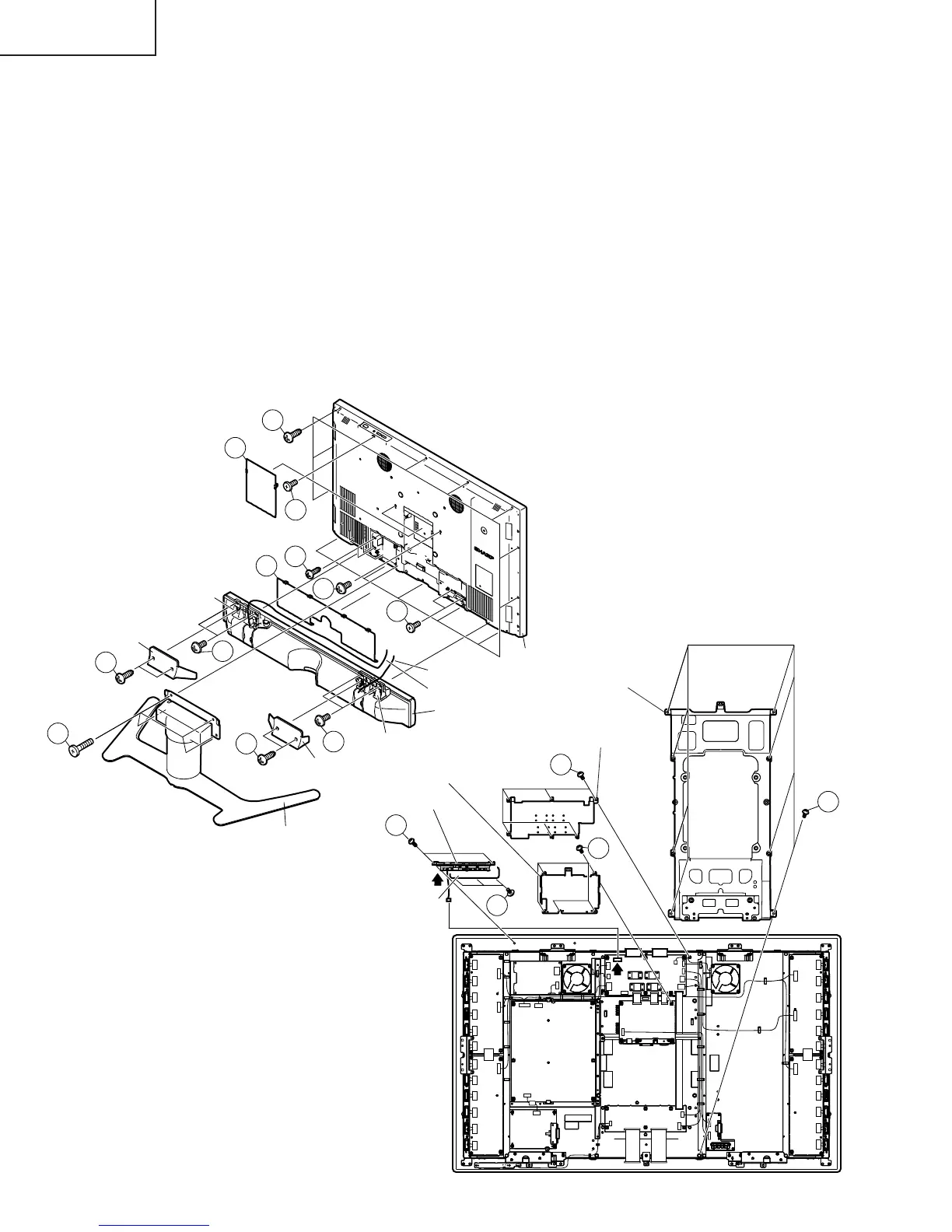

1. Remove the Terminal Covers 1 .
2. Remove the four lock screws 2 and detach the Stand.
3. Remove the four lock screws 3 and detach the Bracket Covers.
4. Remove the four lock screws 4 and separate the Speaker Box from the set.
Disconnect SP wire (R) and SP wire (L).
5. Remove the twenty one lock screws 5 from Rear Cabinet, and detach the Rear Cabinet.
6. Remove the eight lock screws 6 from Center Angle, and detach the Center Angle.
7. Remove the KEY PWB
7-1. Remove the two lock screws 7 from Top Control Cover.
7-2. Remove the three lock screws 8 from the KEY PWB.
8. Remove the six lock screws 9 and detach the LCD Shield Case.
9. Remove the five lock screws 0 and detach the TMDS Shield Case.
2
1
1
Terminal Cover Top
Terminal Cover Bottom
Bracket Cover
Stand
Bracket Cover
Speaker Bracket
Speaker Bracket
Speaker Box
SP Wire (L)
SP Wire (R)
5
5
5
5
3
3
4
4
Rear Cabinet
5
P2003
P151
7
6
8
10
9
Center Angle
LCD Shield Case
TMDS Shield Case
Top Control Cover
KEY PWB
