VC-A560U(A)/A560U/A560U(B)
VC-H960U/H960U(B)/H961U

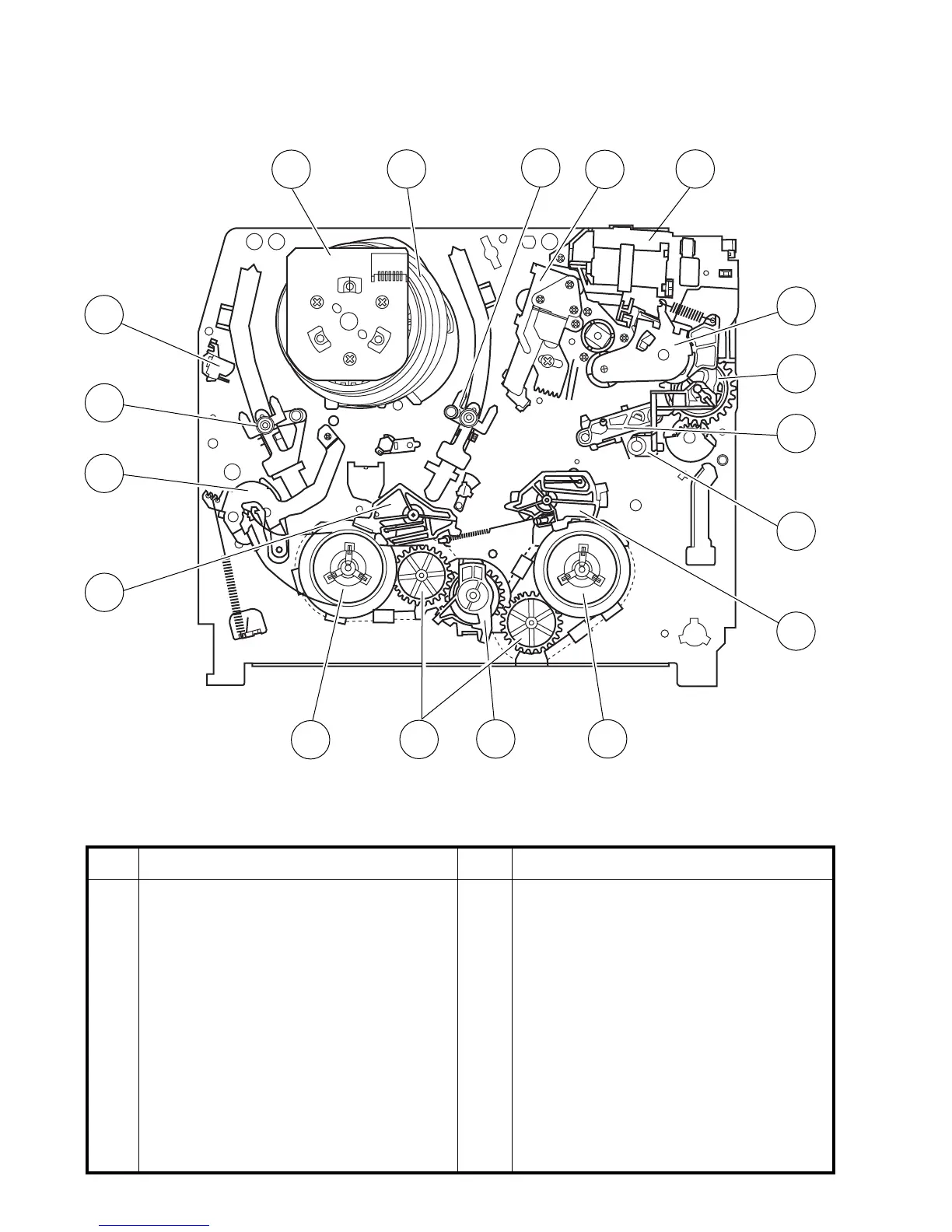

3. FUNCTION OF MAJOR MECHANICAL PARTS (TOP VIEW)
No. Function
No. Function
1 Full erase head
2 Supply pole base ass’y
3 Tension arm
4 Idler wheel ass’y
5 Open guide
6 Supply reel disk
7 Supply main brake
8 Take-up main brake
9 Pinch drive cam
10 A/C head ass’y
11 Reverse guide lever ass’y
12 Reel relay gear
13 Take-up reel disk
14 Pinch roller lever ass’y
15 Drum ass'y
16 Loading motor block
17 Drum driver motor
18 Take-up pole base ass'y
17
15
11
5
9
14
12
8
16
13
4
6
2
7
3
1
18
10




