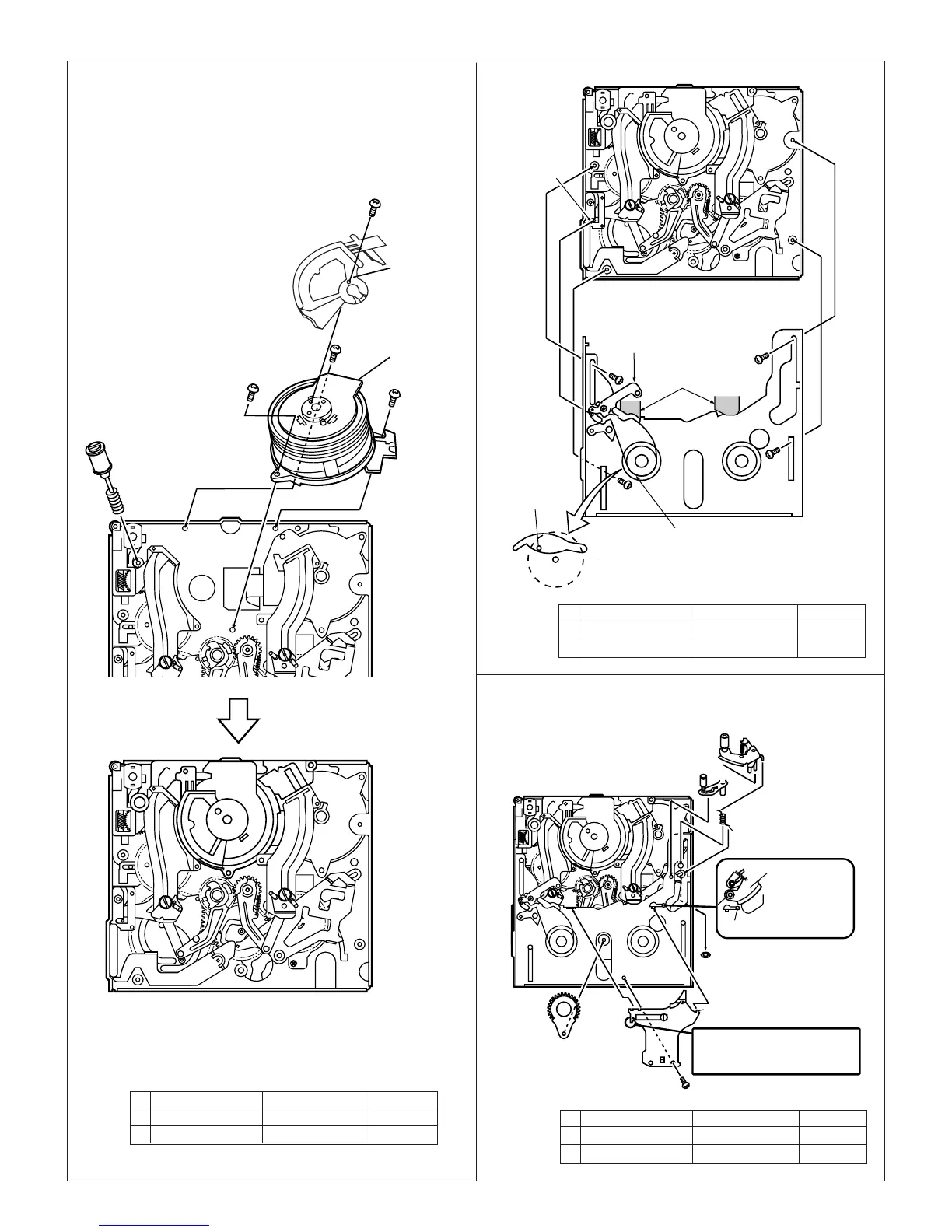

(8) Install the drum assembly in the chassis.
(9) Install the tape guide in the drum assembly.
(10) Install the Si roller.
(11) Install the slide chassis.
Item Tightening torque Quantity
A S tight M1.7 x L5.3 100mN·m 3
B S tight M1.7 x L2.5 60mN·m 1
A
Si roller
Roller spring
Drum assembly
A
Chassis drawing
A
Tape guide
B
A
B
B
B
T arm guide
Slide this part towards the T arm.
Place the slide chassis
on the guide rail.
Main cam pin
Sup reel base
Insert the main cam pin into the
hole of cam of slide chassis.
Item Tightening torque Quantity
A S tight M1.4 x 2.5 70mN·m 1
B CW ø0.8-ø3-t0.2 70mN·m 1
Take care not to bend the
tension band during assembly
or disassembly.
Pinch lever
Tu guide lever
Tu guide lever SPR
Attach to hook
Attach to hook
Take care of position.
Pinch lever
Stopper
The pinch lever
is positioned on
the stopper.
Secure on back side
B
A
Claw
Claw
Swing arm
(12) Install in the following order: T guide lever spring, T guide
lever, pinch lever.
(13) Install the swing arm.
(14) Install the right guide holder.
Item Tightening torque Quantity
A M1.4 x 1.5 ø4 40mN·m 1
B M1.4 x 1.5 ø3.5 40mN·m 3
