8
VL-AX1U
4.
5.
3.

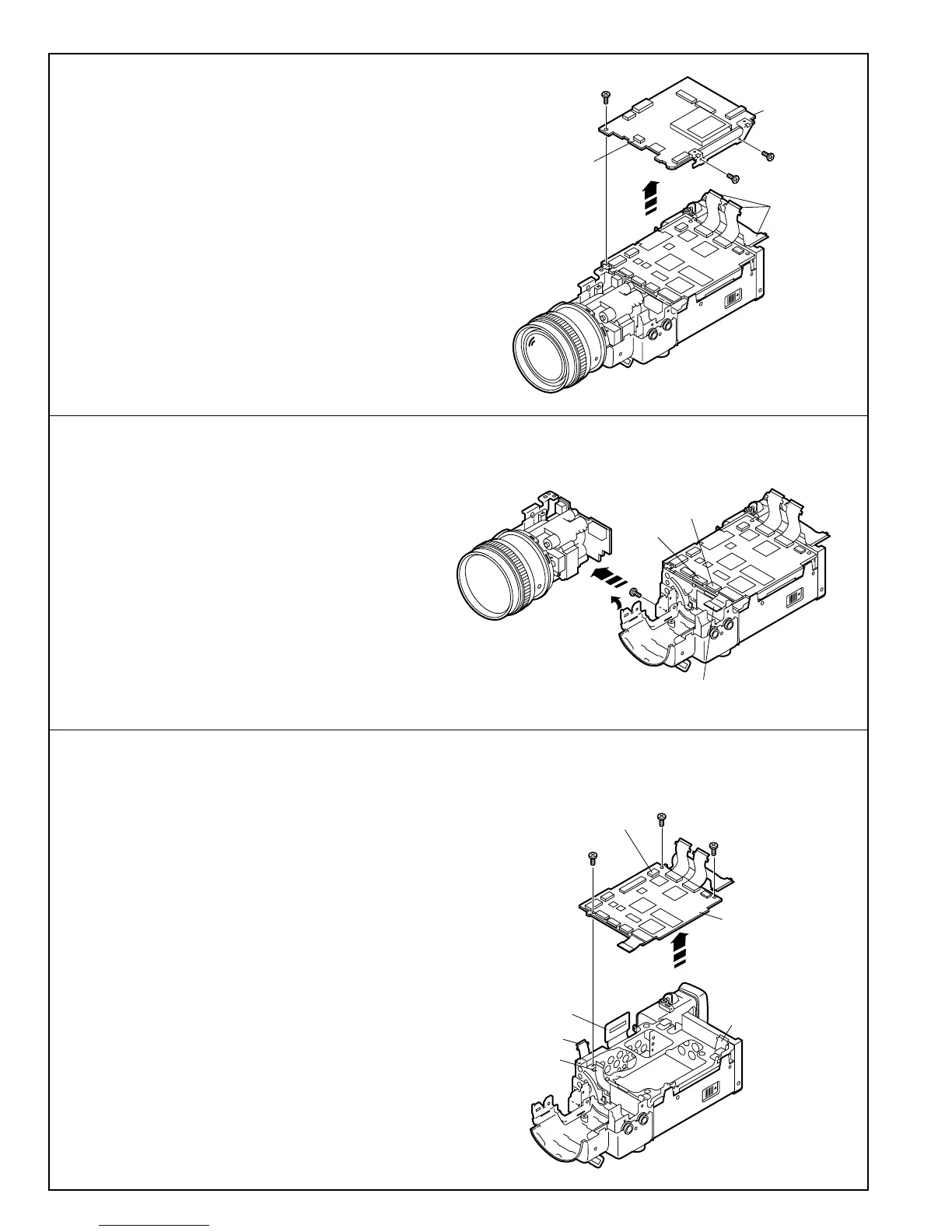

Detach the 3 main=sub FPCs (1, 2 and 3) and 1 microphone
connector.
Remove the 1 screw ((R)XiPSN17P03000) and 2 screws
((N)XiPSF17P02000), and pull out the sub PWB in the direc-
tion of the arrow.
Detach the lens FPC, focus FPC, and camera=main FPC
BtoB.
Remove the 1 screw ((R)XiPSN17P03000), raise the claw,
and then pull out the lens section in the direction of the arrow.
Detach the head amp=main FPC BtoB, battery terminal FPC
BtoB, AV/S terminal unit FPC, and power supply S/S unit FPC.
Remove the 3 screws ((R)XiPSN17P03000).
Pull out the main PWB in the direction of the arrow to detach
the VF FPC. (If the main PWB is pulled out by force, the FPC
may be cut off. Therefore, pull it our gently.)
Main=Sub FPC
Sub PWB
Microphone connector
(N)
(N)
(R)
Camera=Main FPC BtoB
Lens FPC
Focus FPC
Claw
(R)
VF FPC
Head amp=Main FPC BtoB
AV/S terminal unit FPC
Battery terminal FPC BtoB
Main PWB
Power supply S/S unit FPC
(R)
(R)
(R)
