38
VL-AX1U
1. Color bar chart
(240 x 320 mm)
2. JiGCHART-4
3. DA
1. Illumination meter
(0 to 3000 lux)
2. JiGMETER-1
3. CT
1. Color temperature meter
(1600 to 40000 degrees K)
2. JiGMETER-2
3. EL
1. PC plate connector drawer
2. JiGTH-SS10
3. AW
1. Gray scale chart
(390 x 520 mm)
2. JiGCHART-1
3. CP
1. Remote control until for
servicing
2. RRMCG0033TASA
3. BT
1. Color temperature
conversion filter
(3200 degrees K ⇒ 6800
degrees K)
2. JiGHOYA-LB165
3. BN
10-2. Camera Section Adjustments
10-2-1. Camera section service
(1)Camera adjustment is performed after the set has been completed.
(2)Subjects, measuring instruments and jigs needed for camera section service and adjustments
• Gray scale chart • Frequency counter • Video output cable
• Color bar chart • Illumination meter • AC adapter
• Oscilloscope • Color temperature meter • Extension cables
• Digital voltmeter • Color temperature conversion filter • Remote control unit for servicing
• Halogen lamp: 2 pcs. HOYA "LB-165"
• Vector scope • Color video monitor

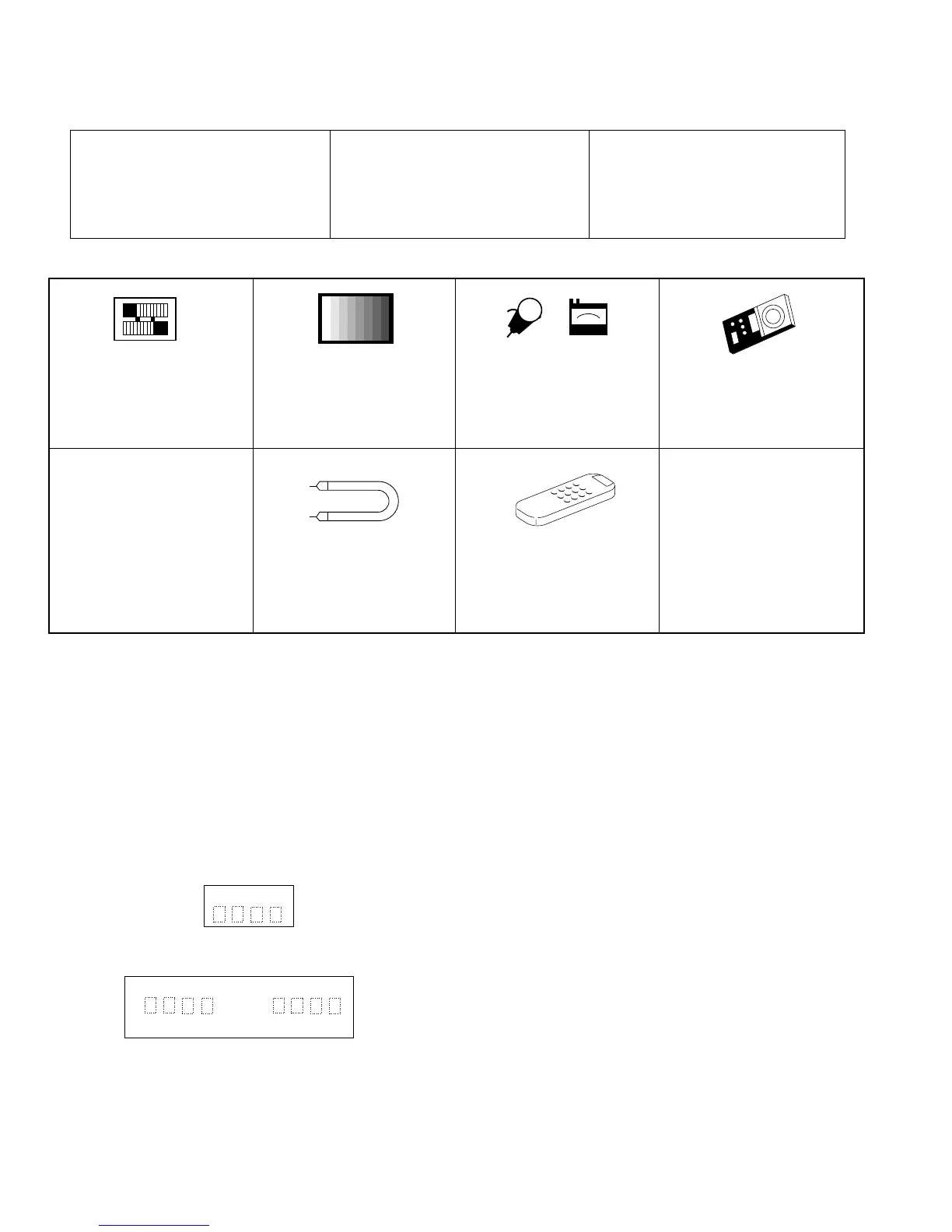

10-2-2. List of camera jigs and tools
Configuration
<Note: The entries of list> 1. Name 2. Part No. 3. Code
10-2-3. Adjusting the camera unit
(1)Preparations for adjustments and items to be checked
1) Set up the light box so that the entire pattern is evenly lit. Set the color temperature to 3200°K.
2) Use test patterns that are not dirty nor discoloured.
3) If the electrical circuitry gets in trouble, be sure to pinpoint the trouble spot with a measuring instrument and repair or replace
the defective part.
(2)Remote control for servicing RRMCG0033TASA
To adjust the camera section of this machine, the remote control for servicing (RRMCG0033TASA) is used. The adjustment is made
in such a manner that the remote control writes necessary data by way of the microprocessor to the specific addresses on the
E
2
PROM (IC502).
1) To adjust the camera:
Press the "CONTINUE" key first and then the "CAM ADJ" key.
This will show
CAM ADJ
on the LCD screen, thereby having the camera unit ready for the adjustments.
2) Descriptions of the displays
CAM ADJ (Indicates the camera adjustment mode.)
(Address value) (Data value)
* The address values for this machine range from 0000 to 09FF.
* The data include byte data (the last two digits are effective) and 2-byte data (the last three digits are effective).
3) Descriptions of the remote control keys
"FF" key: Increases the address and data values.
"REW" key: Decreases the address and data values.
"PLAY" key: Specifies addresses and calls the data.
This key also fixes the data values.
"STOP" key: Clears the data to enable the selection of address.
To Next Page
