Sharp VL-E39S User Manual

Vl-E39S

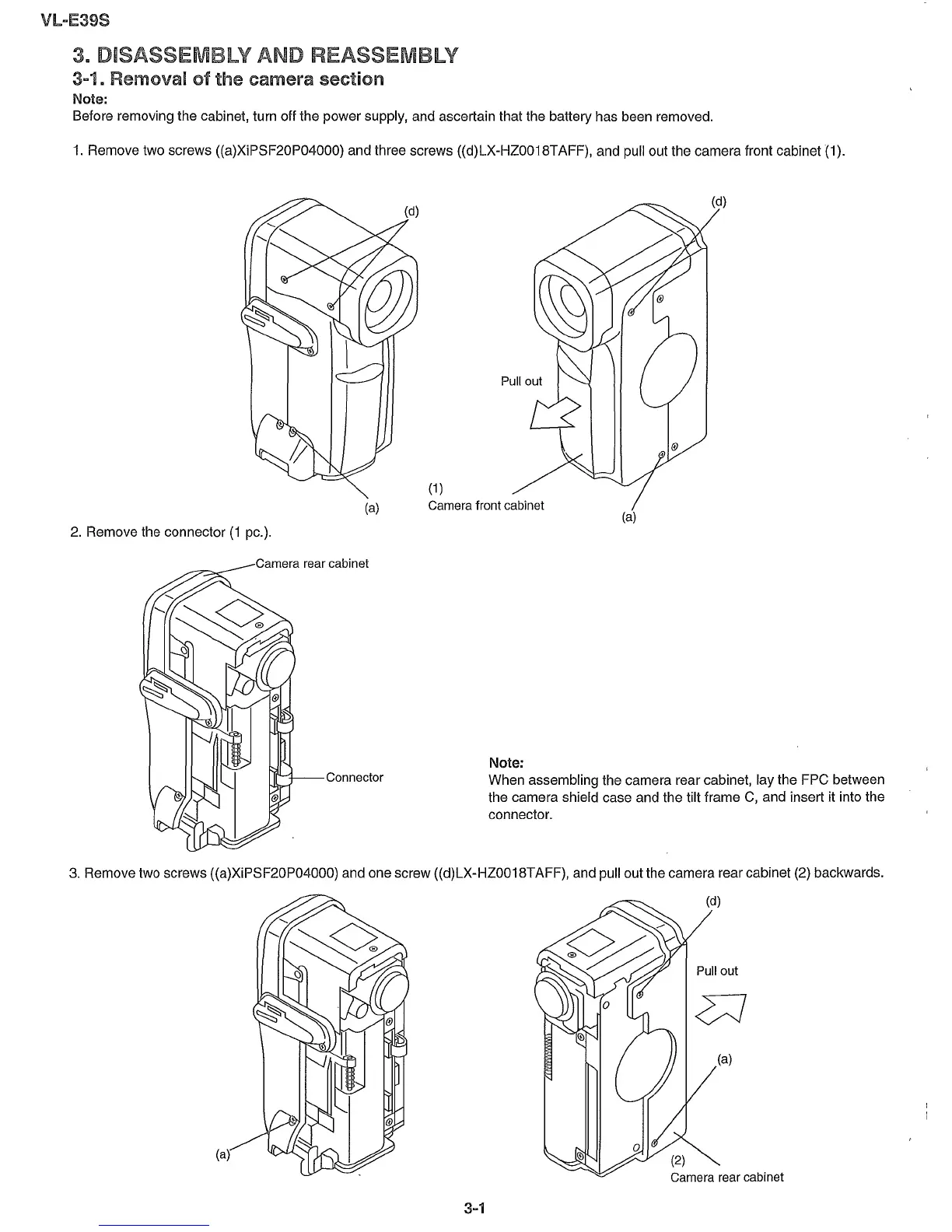

3. DISASSEMBLY AND REASSEMBLY
3-1. Removal of the camera section
Note:
Before removing the cabinet, turn off the power supply, and ascertain that the battery has been removed.
1. Remove two screws ((a)XiPSF20P04000) and three screws ((d)LX-HZ0018TAFF), and pull out the camera front cabinet (1).
(a)
2. Remove the connector (1 pc.).
Camera rear cabinet
II--l---Connector
(d)
(1)
Camera front cabinet
(a)
Note:
When assembling the camera rear cabinet, lay the FPC between
the camera shield case and the tilt frame C, and insert it into the
connector.
3. Remove two screws ((a)XiPSF20P04000) and one screw ((d)LX-HZ0018TAFF), and pull out the camera rear cabinet (2) backwards.
(a)
3-1
