4-20
VL-E610S/VL-E610H
VL-E660S/VL-E96E
VL-E98E

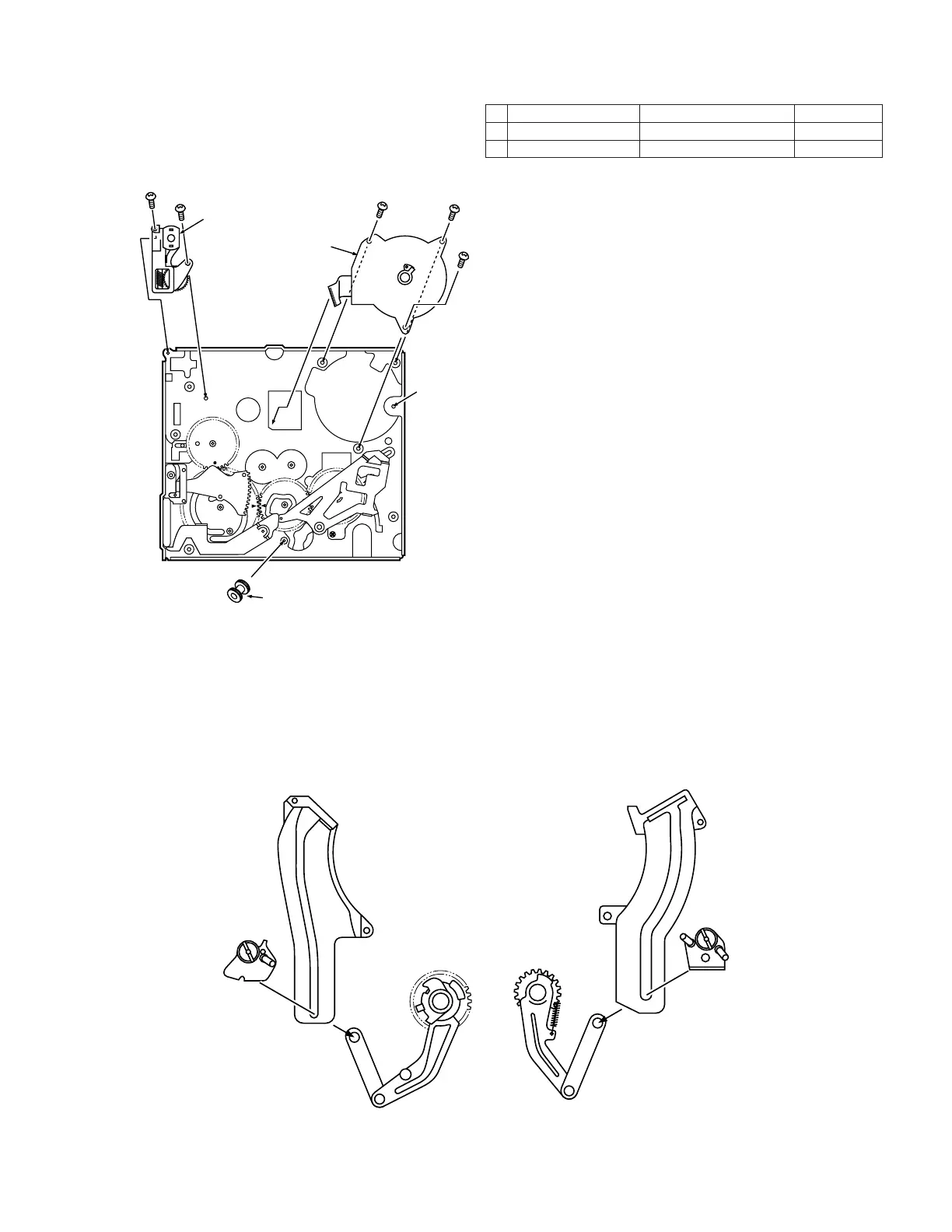

(4) Install the loading block assembly and the capstan motor.
(5) Install the drive gear. At this time, pay attention to the direction of gear. (The small gear must be located in the chassis
side.)
Item Tightening torque Quantity
A S Tight M1.4 x 2.5 70mN·m 1
a S Tight M1.4 x 3 70mN·m 4
a
A
a
a
a
Loading motor
Drive gear
Position the small gear of the drive towards
the chassis.
Capstan motor
Move FF
downwards
Install the
motor under
this plate.
(6) Install the guide rail assembly.
Insert the part in the rail
and slide it down.
Make sure not to
deform the arm.
Insert the part in the rail
and slide it down.
To Next Page
