4-21
VL-E610S/VL-E610H
VL-E660S/VL-E96E
VL-E98E

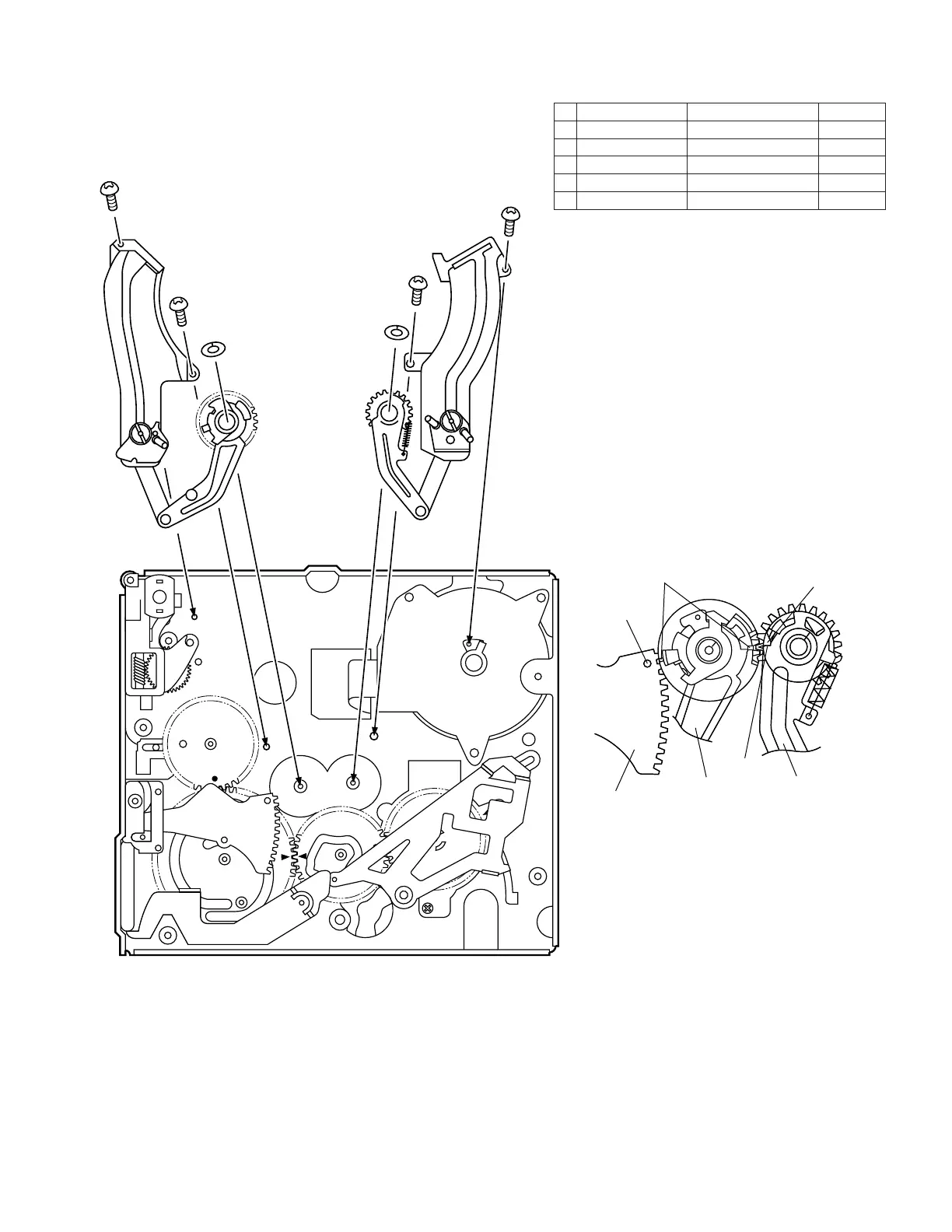

(7) Install the guide rail assembly taking care to position it correctly.
Make sure not deform the arm.
A
a
A
C
D
B
Segment gear
Su arm Ass'y
T Lo arm Ass'y
Square Hollow Mark
Triangle Mark
Edge A
Round Hole
Align the marks on the parts.
Item Tightening torque Quantity
A S Tight M1.4 x 2.5 70mN·m 2
B S Tight M1.4 x 4 40mN·m 1
C ø0.8-ø3.0-t0.2 1
D ø2.1-ø5.0-t0.25 1
a S Tight M1.4 x 3 70mN·m 1
To Next Page
