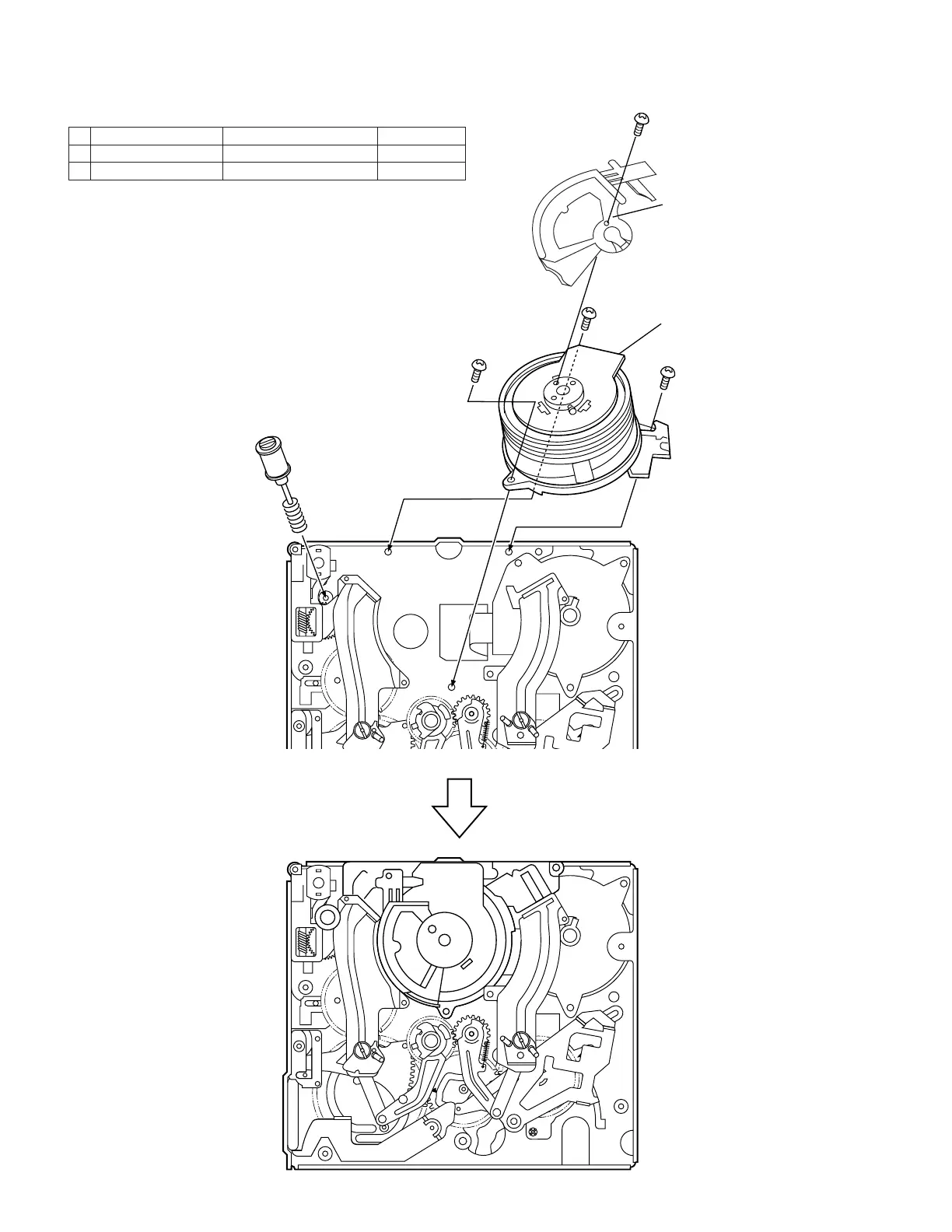

(8) Install the drum assembly in the chassis.
(9) Install the tape guide in the drum assembly.
(10) Install the Si roller.
Item Tightening torque Quantity
A S tight M1.7 x L5.3 100mN·m 3
B S tight M1.7 x L2.5 60mN·m 1
A
Si roller
Roller spring
Drum assembly
A
Chassis drawing
A
Tape guide
B
