4-23
VL-E610S/VL-E610H
VL-E660S/VL-E96E
VL-E98E

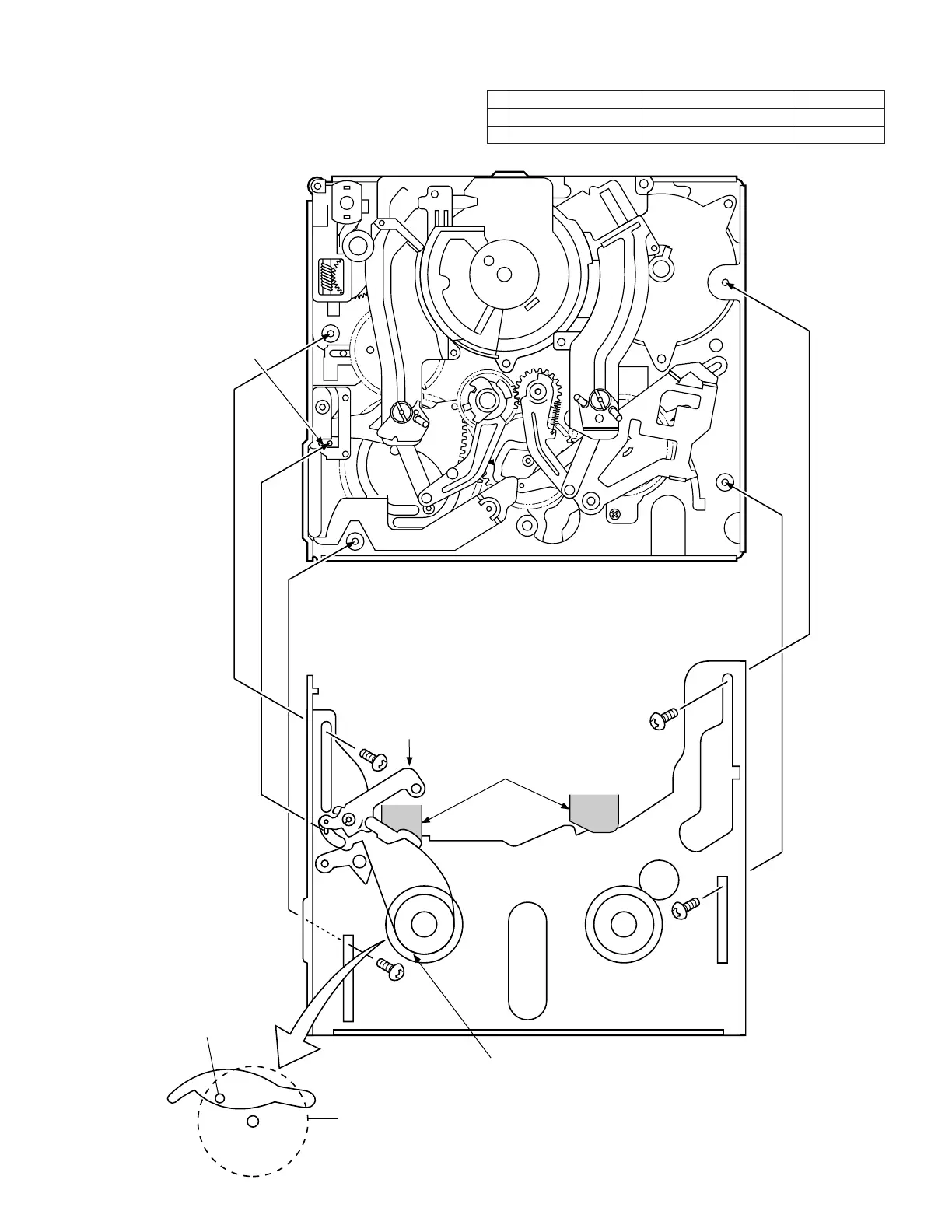

(11) Install the slide chassis.
A
B
B
B
T arm guide
Slide this part towards the T arm.
Place the slide chassis
on the guide rail.
Main cam pin
Sup reel base
Insert the main cam pin into the hole of
cam of slide chassis.
Item Tightening torque Quantity
A M1.4 x 1.5 ø4.0 40mN·m 1
B M1.4 x 1.5 ø3.5 40mN·m 3
