VL-E610S/VL-E610H
VL-E660S/VL-E96E
VL-E98E
3-4

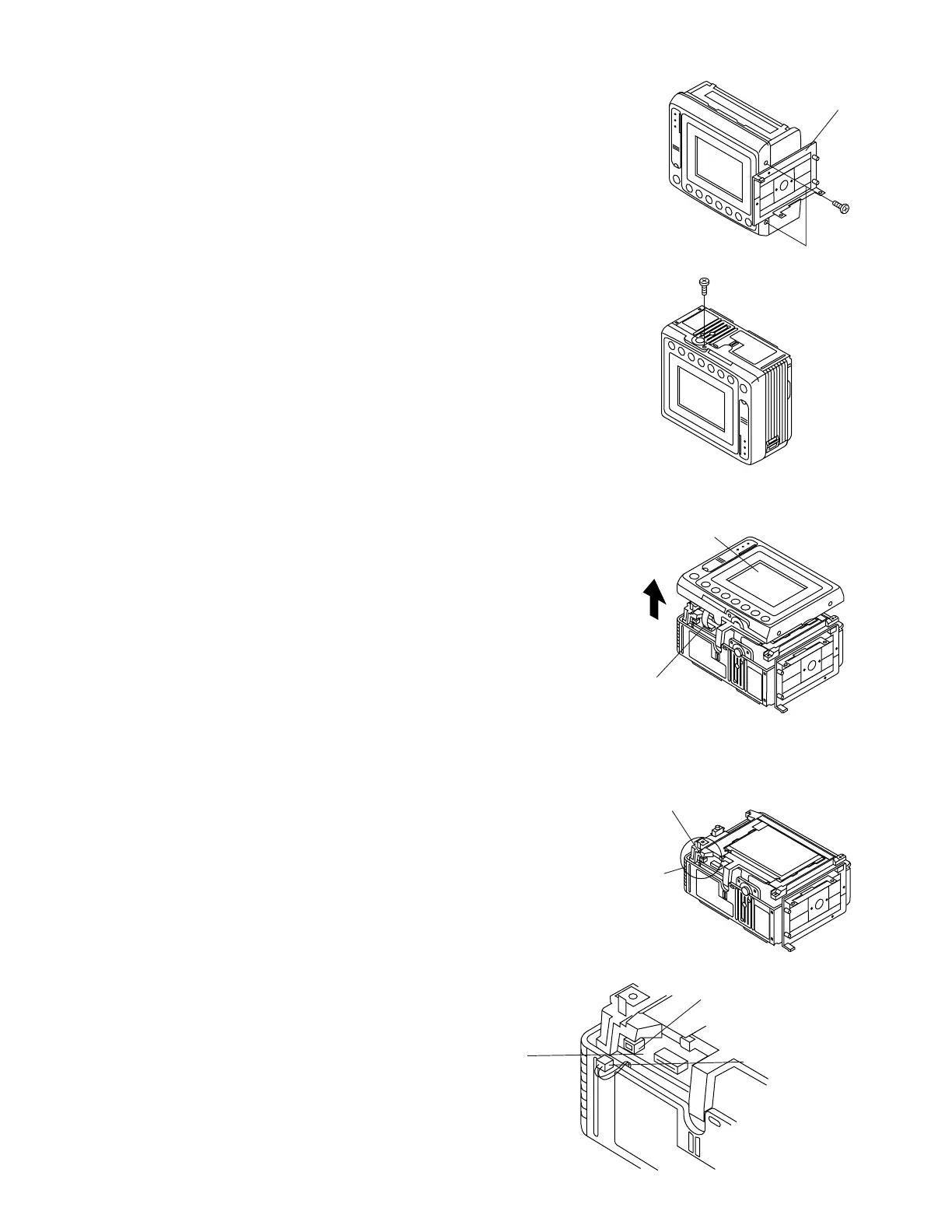

(3)Turn the tilt frame C so that the screwdriver can be easily inserted, and remove two screws ((i)XiPSN20P04000).
Tilt frame C
(i)
(4)Remove one screw ((i)XiPSN20P04000).
(i)
(5)Remove the cabinet L to the midway, and disconnect the FPC connector.
Cabinet L
FPC connector
3. Removal of the VCR lid
(1)Disconnect the microphone connector.
Microphone connector
Area B
Microphone connector
(2)Remove the connector cable from the hole of the microphone wire spacer.
Microphone wire spacer
Microphone connector
Detail of area B
To Next Page
