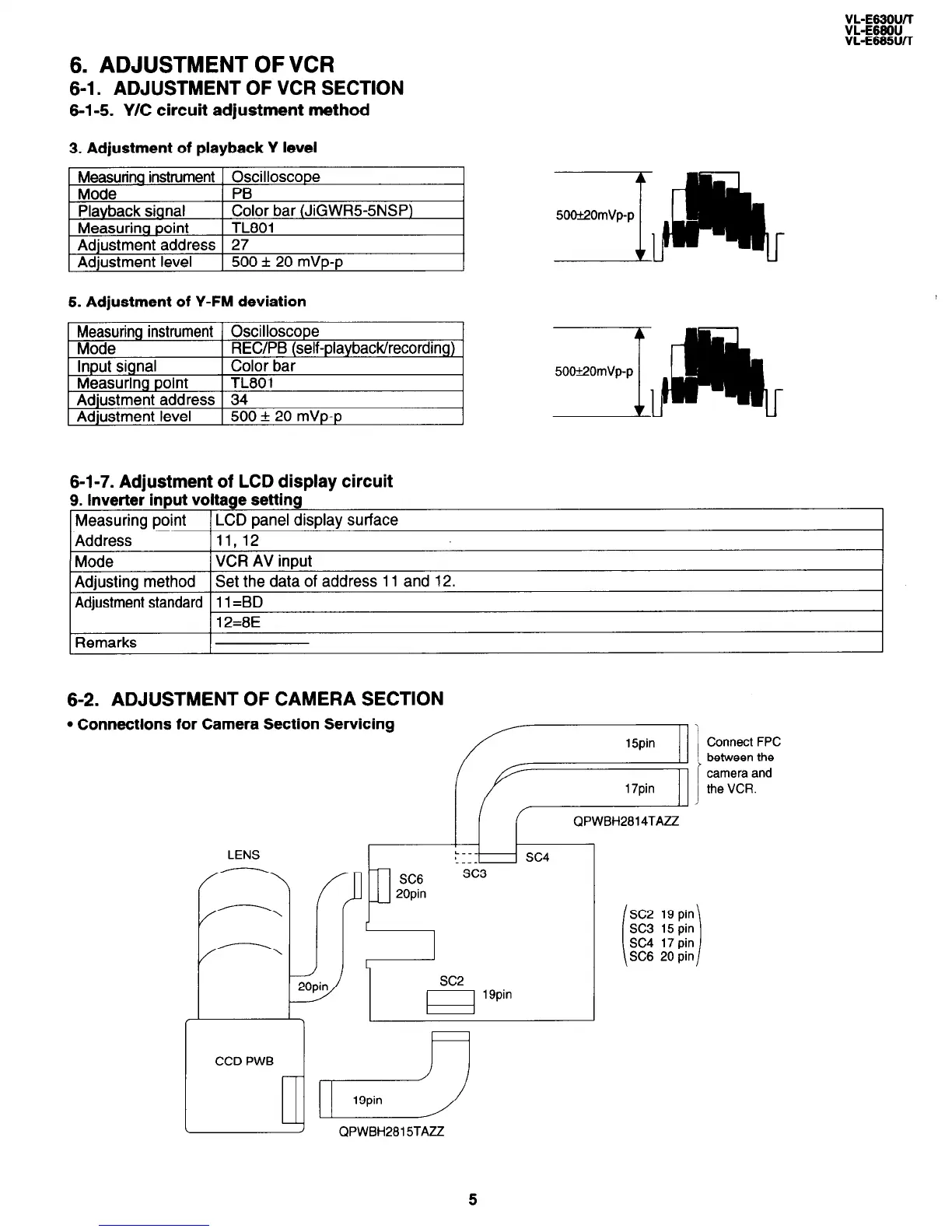

6. ADJUSTMENT OF VCR
6-1. ADJUSTMENT OF VCR SECTION
6-l-5. Y/C circuit adjustment method
3. Adjustment of playback Y level
~,
5. Adjustment of Y-FM deviation
Measuring instrument Oscilloscope
Mode REC/PB (self-playback/recording)
Input signal
Color bar
Measuring point
TL801
Adjustment address 34
Adjustment level 500 f 20 mVp-p
6-l-7. Adjustment of LCD display circuit
9. lnverter input voltage setting
Measuring point
LCD panel display surface
Address 11,12
Mode
VCR AV input
Adjusting method
Set the data of address 11 and 12.
Adjustment standard 11 =BD
12=8E
Remarks
6-2. ADJUSTMENT OF CAMERA SECTION
l Connections for Camera Section Servicing
LENS
F
-
20pin
i
k-----k
CCD PWB
SC3
To Next Page
