VL-H870U
VL-H875U
VL-H890U
VL-H860S/H/VL-H870S
VL-H890S/VL-H94E
VL-H96E/VL-H960E
VL-H860S/H/VL-H870S
VL-H890S/VL-H94E
VL-H96E/VL-H960E
3-5
Open
Open
Remove
(c)
Remove

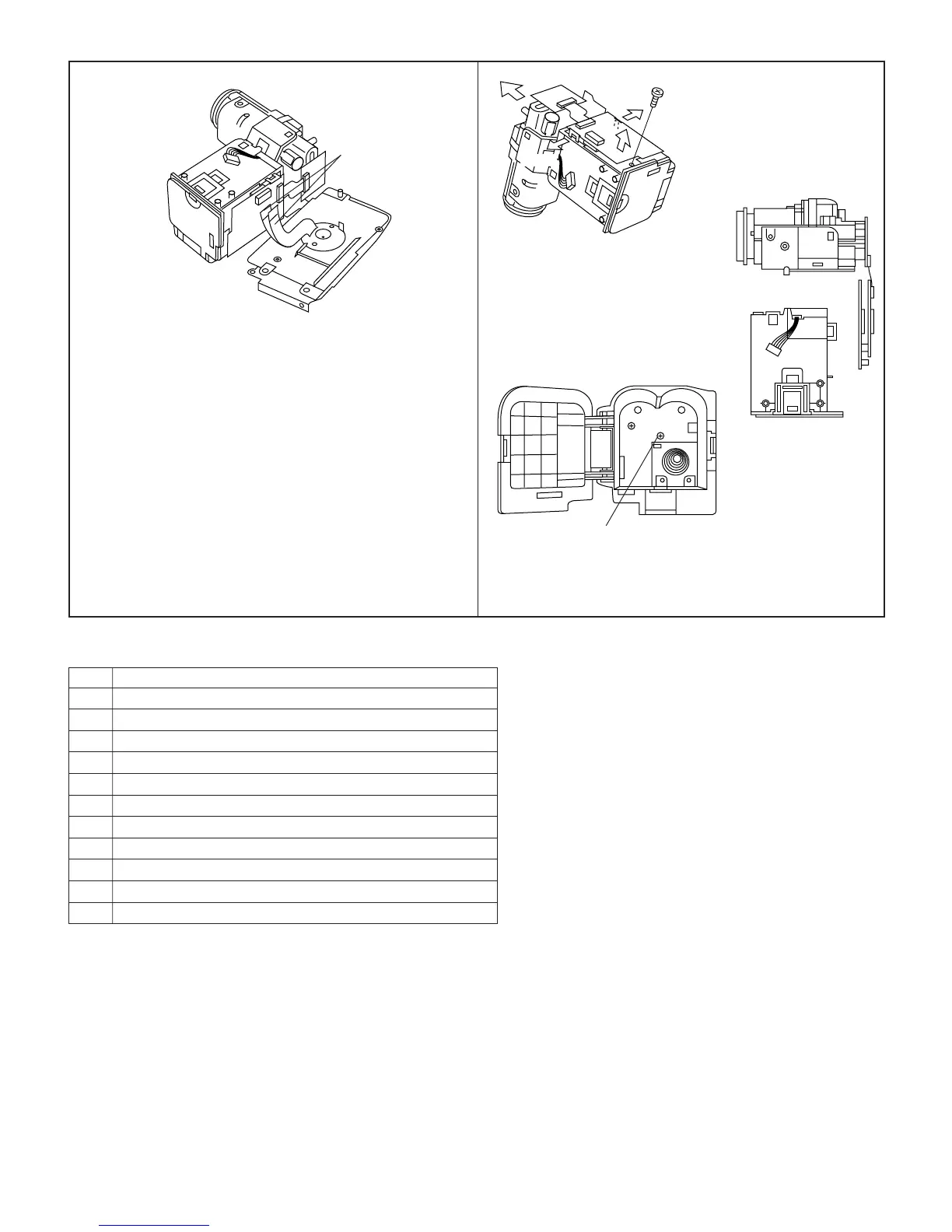

6. Remove the Tilt connectors(2pcs.) as the Tilt Frame C. are
floating in the air.
Note:
Take care to prevent breaking the FPC when the Tilt Frame C.
is removing from them.
7. Remove the screws (g)LX-HZ0045TAFF(1pc.) and (c)LX-
HZ0045TAFN(1pc.), opening the claws(2pcs.) to outward,
remove the Lens unit with Camera P.W.B.
Screws
a LX-HZ0018TAFN M2x6 Tapping Screw, Silver
b LX-HZ0018TAFF M2x6 Tapping Screw, Black
c LX-HZ0045TAFN M2x4 Tapping Screw, Silver
d XiPSF20P04000 M2x4 Small Screw, Black Zinc Plating
e LX-BZ0191TAFD M2 Special Screw
f XiPSD20P03000 M2x3 Screw
g LX-HZ0045TAFF M2x4 Tapping Screw, Black
h LX-HZ0013TAFF M1.7x6 Tapping Screw, Black
i XiPSN20P04000 M2x4 Small Screw, Silver
j LX-HZ0050TAFN M1.7x4 Tapping Screw, Silver
k LX-BZ0236TAFD M2x8 Screw
l XiPSF20P03000 M2x3 Screw, Black
(g)
Tilt connector
