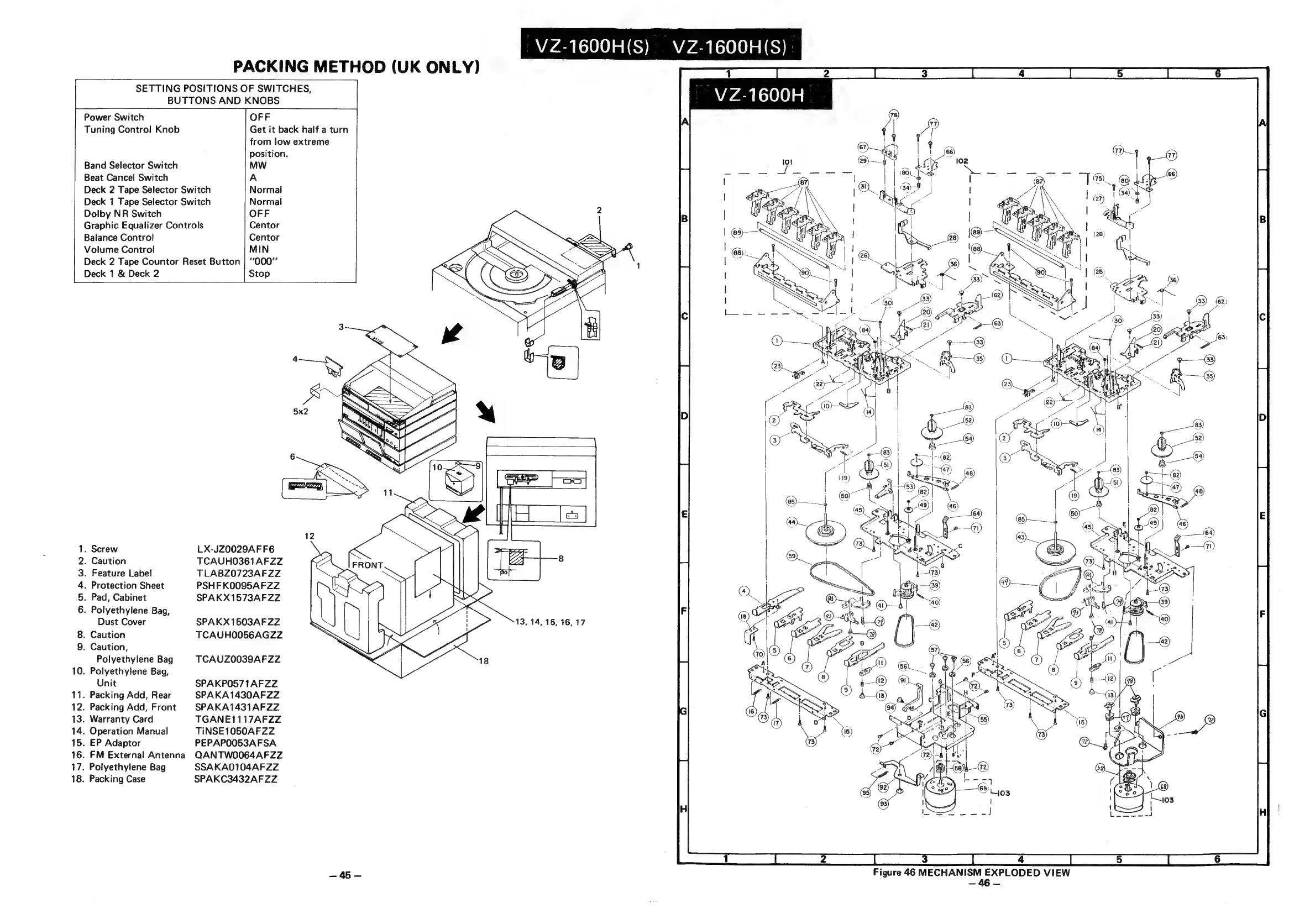

Sharp VZ-1600H(S)

PACKING METHOD (UK ONLY)
SETTING POSITIONS
BUTTONS AND KNOBS
Power Switch
Tuning Control Knob
position.
Band Selector Switch MW
Beat Cancel Switch A
Deck 2 Tape Selector Switch Normal
Deck 1 Tape Selector Switch Normal
Dolby NR Switch OFF
Graphic Equalizer Controls Centor
Balance Control Centor
Volume Control MIN
Deck 2 Tape Countor Reset Button | ‘000’
Deck 1 & Deck 2
aOnhwWND =
©
. Screw
. Caution
. Feature Label
. Protection Sheet
. Pad, Cabinet
. Polyethylene Bag,
Dust Cover
. Caution
. Caution,
Polyethylene Bag
. Polyethylene Bag,
Unit
. Packing Add, Rear
. Packing Add, Front
. Warranty Card
. Operation Manual
. EP Adaptor
. FM External Antenna
. Polyethylene Bag
. Packing Case
Stop
LX-JZOO29AFF6
TCAUH0361AFZZ
TLABZ0723AFZZ
PSHF KOO95AFZZ
SPAKX1573AFZZ
SPAKX1503AF ZZ
TCAUHOO56AGZZ
TCAUZO039AFZZ
SPAKP0571AFZZ
SPAKA1430AFZZ
SPAKA1431AFZZ
TGANE1117AFZZ
TiINSE1050AFZZ
PEPAPOOS3AFSA
QANTWO064AFZ2Z
SSAKA0104AFZZ
SPAKC3432AFZZ
OF SWITCHES,
OFF
Get it back half a turn
from low extreme
VZ-1600H(S)
VZ-1600H(S)
ey /
Figure 46 MECHANISM EXPLODED VIEW
