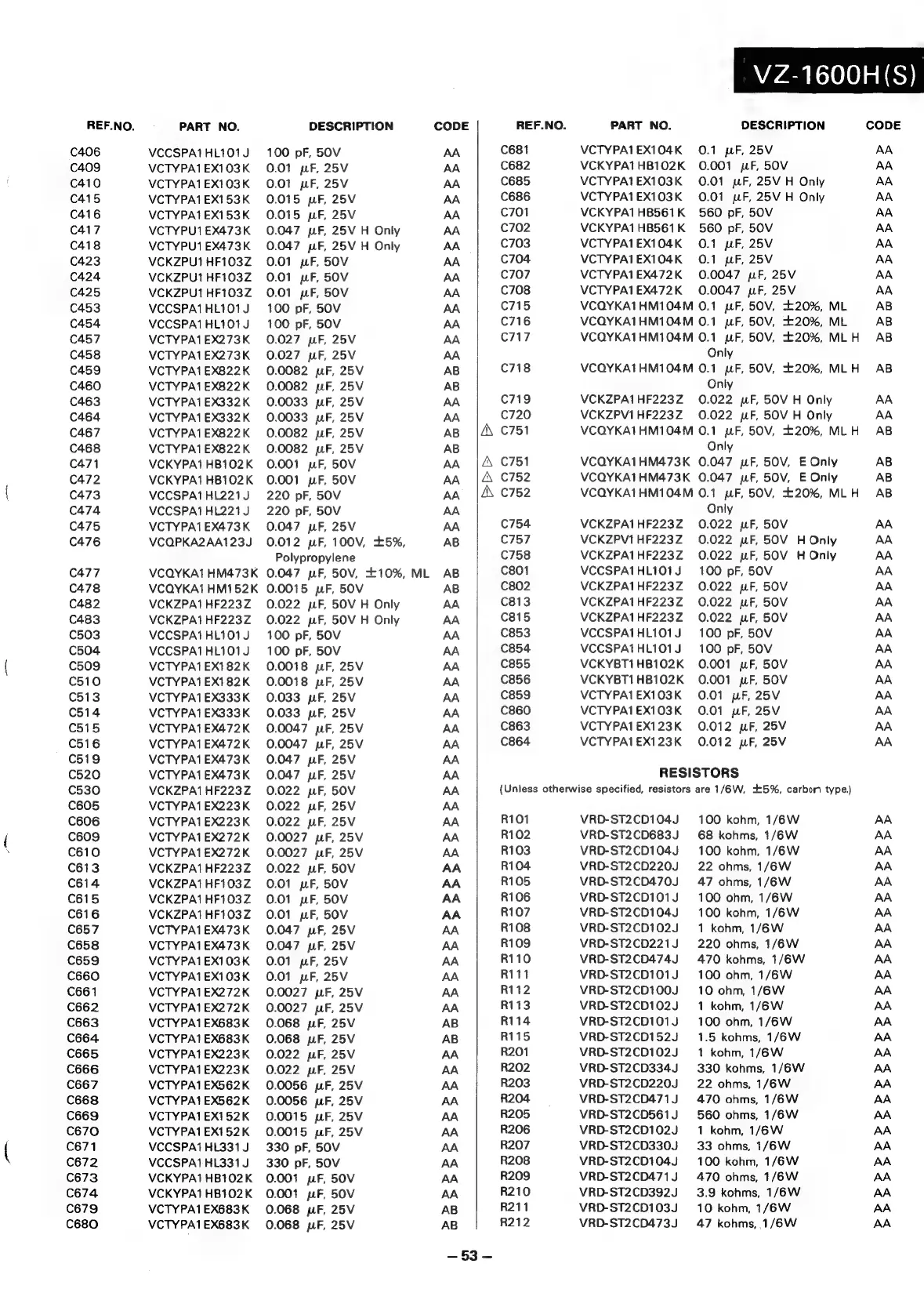

Sharp VZ-1600H(S)

VZ-1600H(S)
REF.NO. PART NO. DESCRIPTION CODE REF.NO. PART NO. DESCRIPTION CODE
C406 VCCSPA1HL101J 100 pF, 50V AA c681 VCTYPAIEX104K 0.1 WF, 25V AA
c409 VCTYPA1EX103K 0.01 uF, 25V AA C682 VCKYPA1HB102K 0.001 pF, 50V AA
C410 VCTYPAIEX103K 0.01 uF, 25V AA C685 VCTYPA1TEX103K 0.01 uF, 25V H Only AA
C415 VCTYPATEX153K 0.015 pF, 25V AA C686 VCTYPA1EX103K 0.01 uF, 25V H Only AA
C416 VCTYPA1EX153K 0.015 pF, 25V AA c701 VCKYPA1HB561K 560 pF, 50V AA
C417 VCTYPU1EX473K 0.047 uF, 25V H Only AA C702 VCKYPA1HB561K 560 pF, 50V AA
C418 VCTYPU1EX473K 0.047 uF, 25V H Only AA C703 VCTYPAIEX104K 0.1 BF, 25V AA
C423 VCKZPU1HF103Z 0.01 uF, 50V AA C704 VCTYPAIEX104K 0.1 LF, 25V AA
C424 VCKZPU1HF103Z 0.01 uF, 50V AA C707 VCTYPA1EX472K 0.0047 pF, 25V AA
C425 VCKZPU1HF103Z 0.01 uF, 50V AA C708 VCTYPAI1EX472K 0.0047 pF, 25V AA
C453 VCCSPA1HL101J 100 pF, 50V AA C715 VCQYKA1HM104M 0.1 uF, 50V, 420%, ML AB
C454 VCCSPA1HL101J 100 pF, 50V AA C716 VCQYKA1HM104M 0.1 yF, 50V, +£20%, ML AB
C457 VCTYPA1EX273K 0.027 uF, 25V AA C717 VCQYKA1HM104M 0.1 pF, 50V, 20%, MLH AB
C458 VCTYPA1EX273K 0.027 uF, 25V AA Only
C459 VCTYPA1EX822K 0.0082 pF, 25V AB C718 VCQYKA1HM104M 0.1 wF, 50V, £20%, MLH AB
C460 VCTYPA1EX822K 0.0082 uF, 25V AB Only
C463 VCTYPA1EX332K 0.0033 pF, 25V AA c719 VCKZPA1HF223Z 0.022 uF, 50V H Only AA
C464 VCTYPA1EX332K 0.0033 uF, 25V AA C720 VCKZPV1HF223Z 0.022 uF, 50V H Only AA
C467 VCTYPA1EX822K 0.0082 pF, 25V ap. |A\ C751 VCQYKA1HM104M 0.1 uF, 50V, £20%, MLH AB
C468 VCTYPA1EX822K 0.0082 pF, 25V AB Only
C471 VCKYPA1HB102K 0.001 uF, 50V AA | C751 VCQYKA1HM473K 0.047 uF, 50V, E Only AB
C472 VCKYPA1HB102K 0.001 pF, 50V AA |A C752 VCQYKA1HM473K 0.047 uF, 50V, E Only AB
C473 VCCSPA1HL221J 220 pF, 50V AA A\ C752 VCQYKA1HM104M 0.1 pF, 50V, £20%, MLH AB
C474 VCCSPA1HL221J 220 pF, 50V AA Only
C475 VCTYPA1EX473K 0.047 pF, 25V AA C754 VCKZPA1HF223Z 0.022 uF, 50V AA
C476 VCQPKA2AA123J 0.012 uF, 100V, +5%, AB C757 VCKZPV1HF223Z 0.022 uF, 50V H Only AA
Polypropylene C758 VCKZPA1HF223Z 0.022 pF, 50V H Only AA
C477 VCQYKA1HM473K 0.047 uF, 50V, +10%, ML AB C801 VCCSPAIHL101J 100 pF, 50V AA
C478 VCOYKA1HM152K 0.0015 “LF, 50V AB C802 VCKZPA1HF223Z 0.022 uF, 50V AA
C482 VCKZPA1HF223Z 0.022 uF, 50V H Only AA C813 VCKZPAIHF223Z 0.022 uF, 50V AA
C483 VCKZPA1HF223Z 0.022 uF, 50V H Only AA C815 VCKZPAIHF223Z 0.022 pF, 50V AA
C503 VCCSPA1HL101J 100 pF, 50V AA C853 VCCSPATHL101J 100 pF, 50V AA
C504 VCCSPA1HL101J 100 pF, 50V AA C854 VCCSPA1HL101J 100 pF, 50V AA
C509 VCTYPAIEX182K 0.0018 uF, 25V AA C855 VCKYBT1HB102K 0.001 MF, 50V AA
C510 VCTYPATEX182K 0.0018 wF, 25V AA C856 VCKYBT1HB102K 0.001 pF, 50V AA
C513 VCTYPA1EX333K 0.033 uF, 25V AA C859 VCTYPAIEX103K 0.01 mF, 25V AA
C514 VCTYPA1EX333K 0.033 pF, 25V AA C860 VCTYPAIEX103K 0.01 pF, 25V AA
C515 VCTYPA1EX472K 0.0047 pF, 25V AA C863 VCTYPA1EX123K 0.012 uF, 25V AA
C516 VCTYPA1EX472K 0.0047 pF, 25V AA C864 VCTYPAIEX123K 0.012 MF, 25V AA
C519 VCTYPA1EX473K 0.047 uF, 25V AA
C520 VCTYPA1EX473K 0.047 uF, 25V AA RESISTORS
C530 VCKZPA1HF223Z 0.022 pF, 50V AA (Unless otherwise specified, resistors are 1/6W, +5%, carbon type)
C605 VCTYPA1EX223K 0.022 uF, 25V AA
C606 VCTYPA1EX223K 0.022 uF, 25V AA R101 VRD-ST2CD104J =—100 kohm, 1/6W AA
C609 VCTYPA1EX272K 0.0027 pF, 25V AA R102 VRD-ST2CD683J 68 kohms, 1/6W AA
C610 VCTYPA1EX272K 0.0027 pF, 25V AA R103 VRD-ST2CD104J =100 kohm, 1/6W AA
C613 VCKZPA1HF223Z 0.022 yF, 50V AA R104 VRD-ST2CD220J 22 ohms, 1/6W AA
C614 VCKZPA1HF103Z 0.01 uF, 50V AA R105 VRD-ST2CD470J 47 ohms, 1/6W AA
C615
VCKZPA1HF103Z
0.01
pF,
50V
AA
R106
VRD-ST2CD101J
100
ohm,
1/6W
AA
C616 VCKZPA1HF103Z 0.01 «LF, 50V AA R107 VRD-ST2CD104J 100 kohm, 1/6W AA
C657 VCTYPA1EX473K 0.047 uF, 25V AA R108 VRD-ST2CD102J = 1 kohm, 1/6W AA
C658 VCTYPA1EX473K 0.047 pF, 25V AA R109 VRD-ST2CD221J 220 ohms, 1/6W AA
C659 VCTYPA1IEX103K 0.01 pF, 25V AA R110 VRD-ST2CD474J 470 kohms, 1/6W AA
C660 VCTYPAIEX103K 0.01 KF, 25V AA R111 VRD-ST2CD101J 100 ohm, 1/6W AA
C661 VCTYPA1EX272K 0.0027 pF, 25V AA R112 VRD-ST2CD100J 10 ohm, 1/6W AA
C662 VCTYPAIEX272K 0.0027 pF, 25V AA R113 VRD-ST2CD102J = 1:_-kohm, 1/6W AA
C663 VCTYPA1EX683K 0.068 uF, 25V AB R114 VRD-ST2CD101J 100 ohm, 1/6W AA
C664 VCTYPA1EX683K 0.068 pF, 25V AB R115 VRD-ST2CD152J 1.5 kohms, 1/6W AA
C665 VCTYPA1EX223K 0.022 uF, 25V AA R201 VRD-ST2CD102J = 1: ~kohm, 1/6W AA
C666 VCTYPA1EX223K 0.022 uF, 25V AA R202 VRD-ST2CD334J 330 kohms, 1/6W AA
C667 VCTYPATEX562K 0.0056 uF, 25V AA R203 VRD-ST2CD220J 22 ohms, 1/6W AA
C668 VCTYPA1EX562K 0.0056 pF, 25V AA R204 VRD-ST2CD471J 470 ohms, 1/6W AA
C669 VCTYPA1EX152K 0.0015 yuF, 25V AA R205 VRD-ST2CD561J 560 ohms, 1/6W AA
C670 VCTYPA1EX152K 0.0015 uF, 25V AA R206 VRD-ST2CD102J —1:_-kohm, 1/6W AA
C671 VCCSPA1HL331J 330 pF, 50V AA R207 VRD-ST2CD330J 33 ohms, 1/6W AA
C672 VCCSPA1HL331J 330 pF, 50V AA R208 VRD-ST2CD104J 100 kohm, 1/6W AA
C673 VCKYPA1HB102K 0.001 uF, 50V AA R209 VRD-ST2CD471J 470 ohms, 1/6W AA
C674 VCKYPA1HB102K 0.001 pF, 50V AA R210 VRD-ST2CD392J 3.9 kohms, 1/6W AA
C679 VCTYPA1EX683K 0.068 uF, 25V AB R211 VRD-ST2CD103J 10 kohm, 1/6W AA
C680 VCTYPA1EX683K 0.068 uF, 25V AB R212 VRD-ST2CD473J 47 kohms,.1/6W AA
