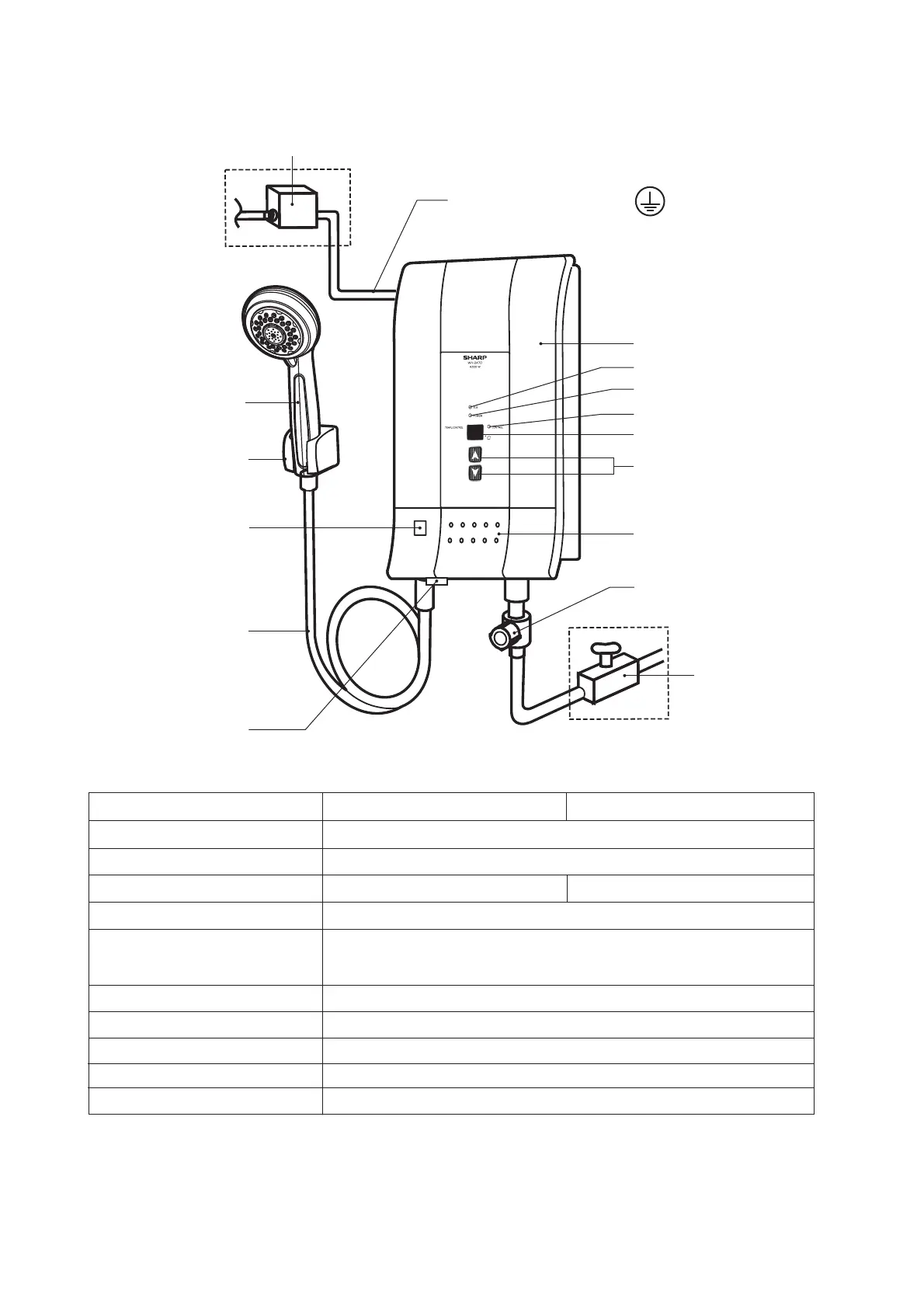

PARTS IDENTIFICATION
SPECIFIC INFORMATION
Model
Rated voltage
Rated frequency
Power consumptions
Water supply system
Water temperature control
Minimum pressure
Maximum pressure
Product dimension (W x H x D)
Weight (kg)
IP number
WH-237DP WH-247D
Note : Temperature of inlet water is approximately 25
o
C and fl ow rate is 2.3 liters/min.
220
50
2.4
3,500
Single point
Electronic control automatic constant
temperature - approximately 32
o
C - 48
o
C
0.02 MPa (0.21 Bar)
0.34 MPa (3.39 Bar)
236 x 378 x 86
IP25
4,500
Main breaker
ELB lamp
Power lamp
Temperature control button
Power SW. button
Display
: 1 MPa (Megapascal) = 10.2 Kilograms/Square centimeter.
Power cord and ground wire
Control lamp
Shower head
Shower stand
Shower hose
Main water valve
Water volume knob
ELB button
Body
Breaker angle support
