7

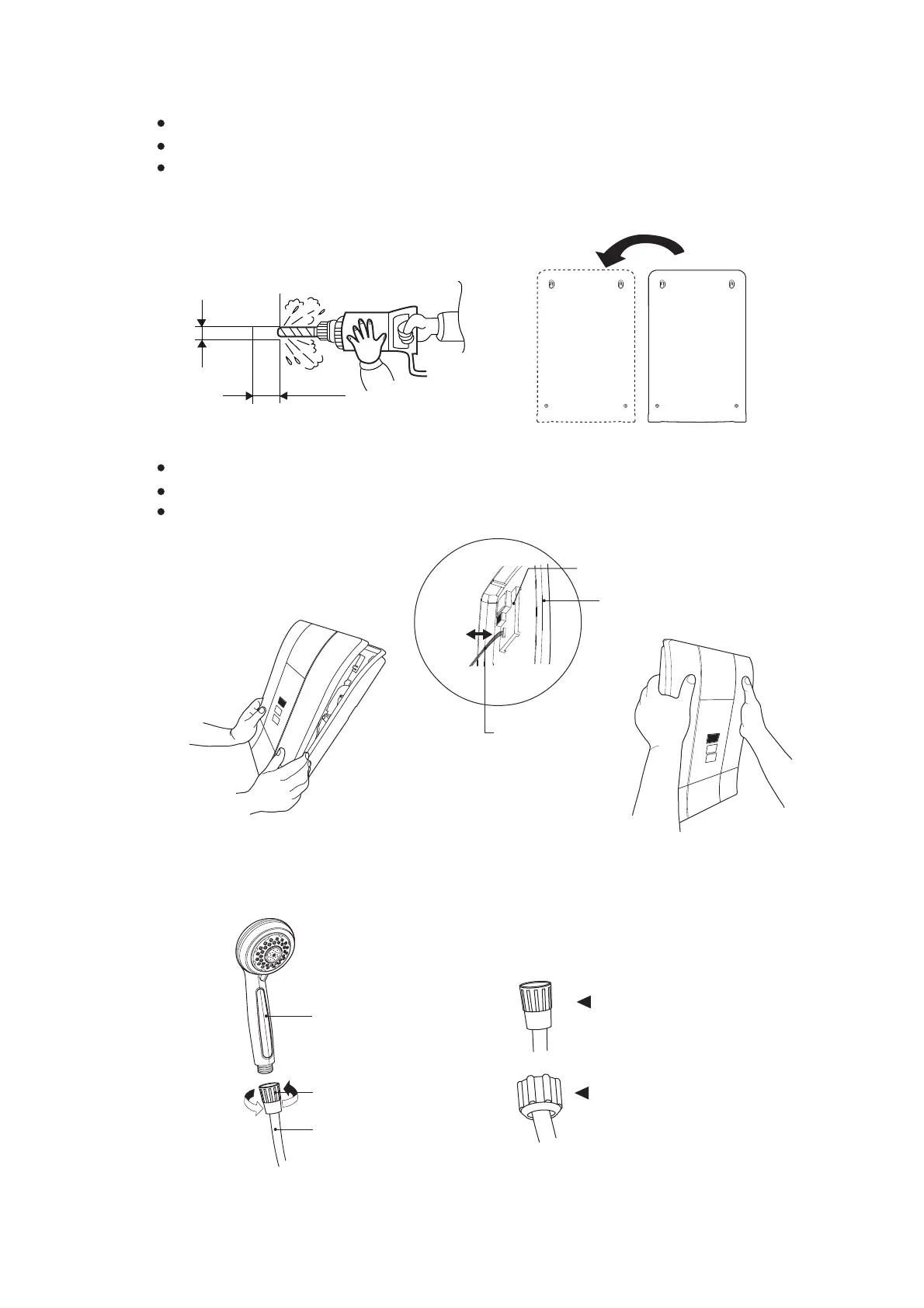

2.4. Assemble the cover with the heater.
Place the cover for the space palm to plug the wire pole the same place on the circuit.
Assemble the cover from the bottom of the heater and push tight on the top of cover.
Tighten screws to attach the cover with the heater to the same position.
Fig. 11
Fig. 10
Fig. 9
25 mm.
6 mm.
2.3. Mounting the unit to the wall.
Drill two 6 millimeters holes in the wall with approximately 25 millimeters in depth.
Install wall anchors into the holes.
Screw the top wall anchors, leave screw length around 8-10 millimeters and hang the unit on the
screw then marked the position in order to drill another 2 holes at the bottom, drill the holes and
install the rest of wall anchors then fasten all of 4 screws.
Fig. 12
Notifi cation in connecting the shower hose.
Shower head
PCB control
Back cover
Wire connect
Put in
Pull
Joint
Shower hose
2.5. The shower assembly.
The joint the shower hose counterclockwise with the shower head.
Connect to the unit.
Connect to the shower head.
